60W 24Vdc Single Output Switching LED Power Supply active PFC function
60W 24Vdc Single Output Switching LED Power Supply active PFC function

60W 24Vdc Single Output Switching LED Power Supply active PFC function

23.40 VAT excl.
£28.08 VAT incl.

260W 24Vdc Constant voltage LED Power Supply, Single Output, GL Power, pfc-function- Suitable for LED lighting GPVP-60-24N
- Universal AC input
- Built-in active PFC function, PFC > 0.9
- IP67

Volume discounts

Quantity Unit price You Save
5 £23.40 £1.17
10 £23.40 £4.68
20 £23.40 £14.04
50 £23.40 £46.80
100 £23.40 £117.00
2 Items
Last items in stock


You can order online 24/7, all ordered goods will be dispatched as soon as possible and we will notify you via e-mail. For custom made orders please contact us.



Orders over £500 (excl. VAT) Standard and Next Day service apply to UK mainland and Northern Ireland only. All orders will be sent by a trackable method.



You have the right to cancel your online website order within 14 calendar working days of ordering, or 14 calendar days of receipt of the goods (whichever is the longer).

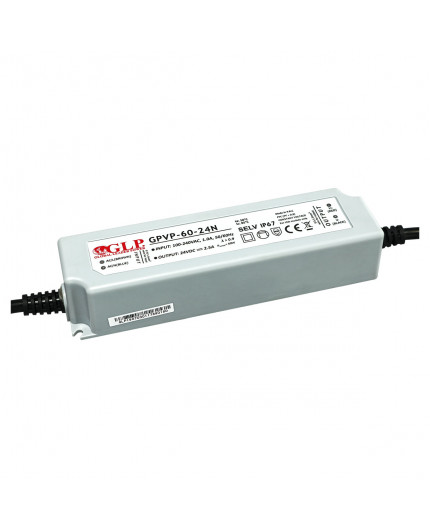

60W 24Vdc Single Output Switching LED Power Supply, GL Power, built-in active PFC function
Model: GPVP-60-24N

Output:
LED driver mode: constant voltage
Output Voltage: 24Vdc
No of outputs: 1
Rated current: 2.5A
Current range: 0-2.5A
Rated power: 60W
Line regulation: ± 1%
Load regulation: ± 2%
Voltage tolerance: ± 5%
Ripple & noise (max.): 5VP-P
Setup, rise time: 1500ms, 250ms / 230VAC; 3000ms, 250ms / 115VAC at full load

Input:
Input Voltage: 90-264Vac
Frequency range: 47 ÷ 63Hz
Efficiency: 90%
AC current (typ.): 1.2A/115VAC, 0.6A / 230VAC
Power factor: PF > 0.9 / 230VAC; PF > 0.95 / 115VAC
Inrush current (typ.): 70A / 230VAC, 35A / 115VAC
Leakage current(max.): 0.5mA / 240VAC
Protections:
Overcurrent:
- range:   150 ÷ 200%
- type: hiccup mode, auto-recovery
Short circuit:
- type: hiccup mode, auto-recovery
Environment:
Working temperature: -30°C ÷ 70°C (Refer to Derating Curve)
Working humidity: 20 ÷ 90% RH non-condensing
Storage temperature and humidity: -40°C ÷ 80°C, 10 ÷ 95% RH non-condensing
Temperature coefficient: ± 0.03% / °C (0°C ÷ 50°C)
Vibration: 10 ÷ 500Hz, 2G, 10min / cycle, period for 60min. each along X, Y, Z axes
Safety and EMC regulations:
Safety standards: compliance to EN61347-1, EN61347-2-13, IP67
Withstand voltage: I-P/O-P: 3kVAC
Isolation resistance: I-P/O-P; O-P/FG; I-P/FG: 100MΩ/500VDC/25°C/70%
EMC emission: compliance to EN55015
EMC immunity: compliance to EN61547; EN55024; EN61000-4-2, -3, -4, -5, -6, -8, -11
Harmonic current: compliance to EN61000-3-3; EN61000-3-2 class C( ≥ 60% load)

Other:

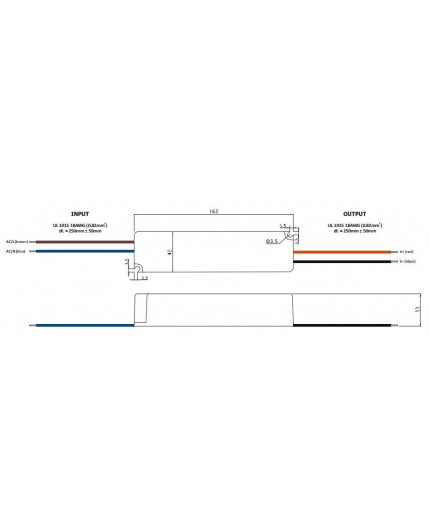

Dimensions: 162 x 42 x 33mm
Weight: 0.4kg
Termination style: flying leads, approx. 250mm ± 50mm (UL 1015 18AWG (0.82mm ))
IP67
GPVP-60-24
2 Items

Data sheet

Type
Constant Voltage
Ingress Protection (IP)
IP67
Output
24VDC
Wattage
60W
Dimming Control
Non-dimmable
Design
Plastic case
Power factor correction (PFC)
Built-in active PFC function
