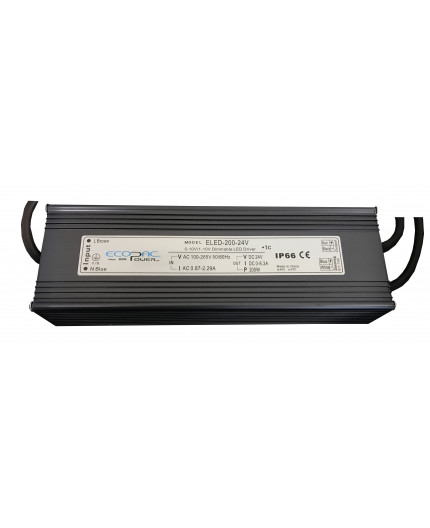

24Vdc, 200W, 0-10V / Potentiometer / 10V PWM dimmable LED driver

Name: 24Vdc, 200W, 0-10V / Potentiometer / 10V PWM dimmable LED driver
Brand: Ecopac (UK) Power Ltd
SKU: ELED-200-24V
Price: 118.8 GBP
Availability: InStock

99.00 VAT excl.

£118.80 VAT incl.

200W, 0-10V / Potentiometer / 10V PWM dimmable LED driver ELED-200-24V for 24Vdc LED lights
- Constant voltage design 12Vdc
- Universal AC input/ Full range

In stock 100 Items

The minimum purchase order quantity for the product is 1000.

You can order online 24/7, all ordered goods will be dispatched as soon as possible and we will notify you via e-mail. For custom made orders please contact us.

Orders over £500 (excl. VAT) Standard and Next Day service apply to UK mainland and Northern Ireland only. All orders will be sent by a trackable method.

You have the right to cancel your online website order within 14 calendar working days of ordering, or 14 calendar days of receipt of the goods (whichever is the longer).

Description
Product Details

24Vdc, 200W, 0-10V / Potentiometer / 10V PWM dimmable LED driver ELED-200-24V

Model: ELED-200-24V
Output DC voltage: 24V
Rated current: 8.33A
Voltage accuracy: ±0.5V
Rated power: 200W
Input Voltage Range: 100-265VAC
Frequency Range: 47-63HZ
Power Factor ( Typ.): PF ≥ 0.98/220V
Built-in PFC function (PFC>0.98)
Full Load Efficiency(Typ.): 88%
AC Current(Typ.): 1.054A/220VAC
Leakage current: <0.25mA/220VAC
Short Circuit: Hiccup mode, recovers automatically after fault condition is removed.
Over voltage: ≤280VAC Over temperature: 100°C±10°C shut down o/p voltage, re-power on to recover
Working TEMP.: -40~+60°C
Working Humidity: 20~95%RH,non-condensing
Storage TEMP., Humidity: ±0.03%/°C(0-50°C)
Vibration: 10~500Hz,5G 12min./1 cycle, period for 72min.each along X,Y,Z axes.
Safety standards: EN61347-2-13, IP66
Withstand voltage: I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC
Isolation resistance: I/P-O/P I/P-FG O/P-FG: 100MΩ/500VDC/25°C/70%RH
EMC EMISSION: Compliance to EN55015, EN61000-3-2 ( ≥ 50%load) EMC IMMUNITY: Compliance to EN61000-4-2,3,4,5,6,8, 11, EN61547,A light industry level

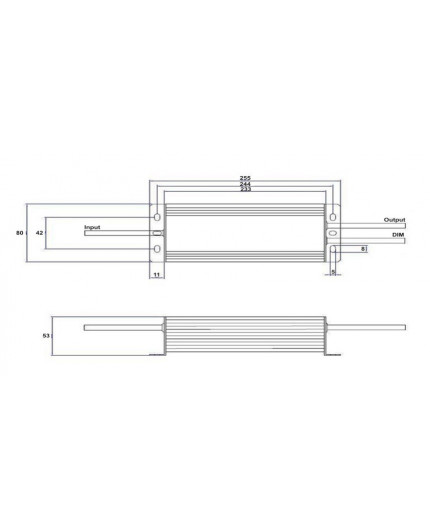

Dimensions: 255*80*53mm (L*W*H)
Packing: 1.8Kg
