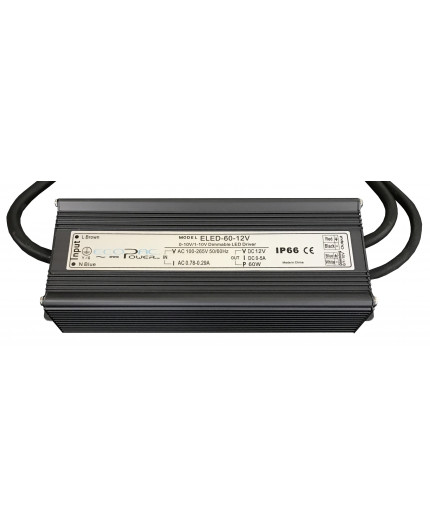

12Vdc, 60W, 0-10V dimmable LED driver ELED-60-12V
12Vdc, 60W, 0-10V dimmable LED driver ELED-60-12V
Previous keyboard_arrow_left
Next keyboard_arrow_right
zoom_in
12Vdc, 60W, 0-10V dimmable LED driver ELED-60-12V
12Vdc, 60W, 0-10V dimmable LED driver ELED-60-12V

12Vdc, 60W, 0-10V dimmable LED driver ELED-60-12V

39.90 VAT excl.
£47.88 VAT incl.

48W, 0-10V dimmable LED driver ELED-60-12V for 12Vdc LED lights
- Constant voltage design 12Vdc
- Protections: Short circuit/ Overload/ Over voltage
- Built-in PFC function (PFC>0.95)

-6 Item


You can order online 24/7, all ordered goods will be dispatched as soon as possible and we will notify you via e-mail. For custom made orders please contact us.



Orders over £500 (excl. VAT) Standard and Next Day service apply to UK mainland and Northern Ireland only. All orders will be sent by a trackable method.



You have the right to cancel your online website order within 14 calendar working days of ordering, or 14 calendar days of receipt of the goods (whichever is the longer).

12Vdc, 48W, 0-10V dimmable LED driver ELED-60-12V

Model: ELED-60-12V
Output DC voltage: 12V
Output current: 0-5.0A
Voltage accuracy: ±0.5V
Rated power: 60W
Input Voltage Range: 100-265VAC
Frequency Range: 47-63HZ
Power Factor ( Typ.): PF ≥ 0.95/220V
Full Load Efficiency(Typ.): >80%
Inrush Current: 14.8W
Protections: Short circuit/ Overload/ Over voltage
Working TEMP.: -30~+45°C
Working Humidity: 5~95%RH,non-condensing
Isolation Voltage: In/ Out 3000VAC
Vibration: 5-55Hz/ 2g, 30minutes
EMI: EN55022, EN55015 Class B
Safety: EN60598
Electromagnetic Immunity: EN61547, EN55024, EN61000-4-2, 3, 4, 6, 8, 11
Harmonic Current Emissions: EN61000-3-2, EN61000-3-3

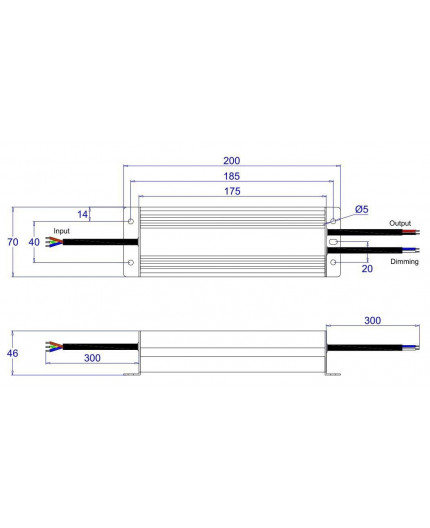

Dimensions: 200x 70x 46mm (L*W*H)
Packing: 1.0Kg

ELED-60-12V
-6 Item

Data sheet

Type
Constant Voltage
Ingress Protection (IP)
IP66
Output
12VDC
Wattage
60W
Dimming Control
0/1-10V/PWM/resistance
Design
Metal case
Power factor correction (PFC)
Built-in active PFC function
