75W 12VDC Switching Power Supply for DIN Rail Mounting
29.90 VAT excl.
£35.88 VAT incl.
75W 12VDC Switching Power Supply for DIN Rail Mounting.
Built-in protection against short circuiting, overload, over-voltage with automatic reset when error is corrected.
Self-cooled.
You can order online 24/7, all ordered goods will be dispatched as soon as possible and we will notify you via e-mail. For custom made orders please contact us.
Orders over £500 (excl. VAT) Standard and Next Day service apply to UK mainland and Northern Ireland only. All orders will be sent by a trackable method.
You have the right to cancel your online website order within 14 calendar working days of ordering, or 14 calendar days of receipt of the goods (whichever is the longer).

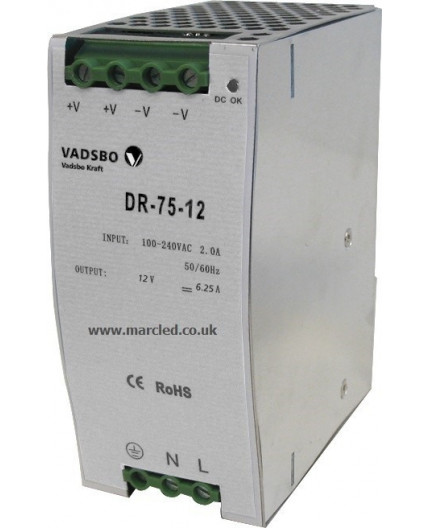

Switching Power Supply for DIN Rail Mounting 75W 12VDC
Part Number: DR75/12
Protection against:
-short circuit
-overload
-overvoltage
-automatic return
Cooling: natural
Mounting: DIN rail TS-35/7.5 & TS-35/15
Insulation class:II
LED indicator of power supply
Standard: EN 55, 61, 50, 60, UL60950
Input voltage: 100-240VAC
Output voltage: 12VDC
Voltage tolerance: +-2%
Rated current: 6.3A
RAted power: 75W
Max ripple: 100 mV p-p
DC adjustment: +-10%
Efficiency: 76%
Overload capacity: 5%
Insulation level: 3kVAC
Working temp.: -10*C-+45*C
Dimensions(without DIN mount): 56x126x100mm
Weight: 540g
Modules: 3
Application
Obvious areas include all types of operating equipment.
DR power supplies also specially suitable to drive LED stripes. To dim stripes, use LED dimmer.
DR75/12
1 Item
Data sheet
- Type
- Constant Voltage
- Ingress Protection (IP)
- IP20 (non-waterproof)
- Output
- 12VDC
- Wattage
- 75W
- Dimming Control
- Non-dimmable
- Design
- DIN Rail
