24Vdc 60W DALI dimmable LED driver, active PFC function
24Vdc 60W DALI dimmable LED driver, active PFC function

24Vdc 60W DALI dimmable LED driver, active PFC function

57.00 VAT excl.
£68.40 VAT incl.

60W Constant Voltage DALI dimmable LED driver for 24Vdc LED lights and moving sign applications

- Built-in active PFC function
- Dimming range: 0.1-100%

Volume discounts

Quantity Unit price You Save
5 £57.00 £2.85
10 £57.00 £11.40
20 £57.00 £34.20
50 £57.00 £114.00
100 £57.00 £285.00
100 Items
Last items in stock


You can order online 24/7, all ordered goods will be dispatched as soon as possible and we will notify you via e-mail. For custom made orders please contact us.



Orders over £500 (excl. VAT) Standard and Next Day service apply to UK mainland and Northern Ireland only. All orders will be sent by a trackable method.



You have the right to cancel your online website order within 14 calendar working days of ordering, or 14 calendar days of receipt of the goods (whichever is the longer).

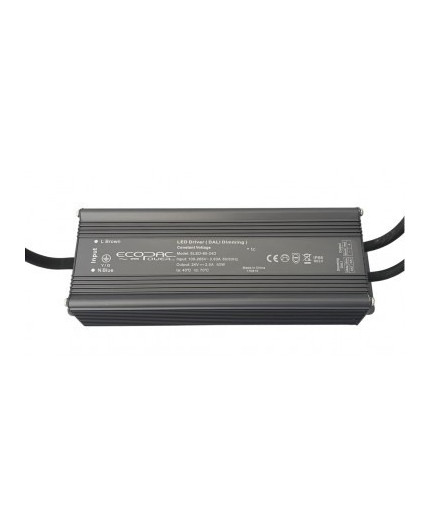

DALI dimmable LED driver, active PFC function 60W

Model: ELED-60-24D

- Constant Voltage Design, 24Vdc
- IP20 design
- Built-in active PFC function
- Suitable for LED lighting and moving sign applications
- Dimming range: 0.1-100%

Dimming range: 0.1-100%
Output DC voltage: 24V
Rated current: 0~2.5A
Voltage accuracy: ±0.5V
Rated power: 60W
Min. load: 6W
Input Voltage Range: 100-265VAC
Frequency Range: 47-63HZ
Power Factor ( Typ.): PF≥0.95
Full Load Efficiency (Typ.): 85%
AC Current (Typ.): 0.35A
Leakage current: <0.7mA
Protections: Short Circuit (Hiccup mode, recovers automatically after fault condition is removed)/ Over Loading (≤120%) / over current (<1.4*I out)
Built-in active PFC function
Cooling by free air convection
Working TEMP.: -40~+60°C
Working Humidity: 20~90%RH, non-condensing
Storage TEMP.-40~+60℃,10~95%RH
Humidity: ±0.03%/℃(0~50℃)
Vibration: 10~500Hz, 2G 10min./1 cycle, period for 60min. each along X,Y,Z axes
Safety standards: EN61347-1 EN61347-2-13
Withstand voltage: I/P-O/P:3.75KVAC
Isolation resistance: I/PO/P:100M Ohms/500VDC/25℃/70%RH
EMC Emission: Compliance to EN55015,EN61000-3-2 (≥60%load)
EMC Immunity: Compliance to EN61000-4-2,3,4,5,6,11, A light industry Level (surge 4KV)

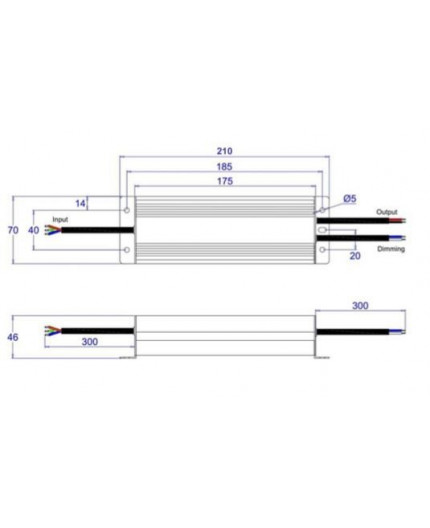

Dimensions: 210x 70x 46mm (L*W*H)
Packing: 1.0Kg

ELED-60-24D
100 Items

Data sheet

Type
Constant Voltage
Ingress Protection (IP)
IP66
Output
24VDC
Wattage
60W
Dimming Control
DALI
Design
Metal case
