120W 24Vdc Single Output Switching LED Power Supply, IP67, GPV-120-24
120W 24Vdc Single Output Switching LED Power Supply, IP67, GPV-120-24
Previous keyboard_arrow_left
Next keyboard_arrow_right
zoom_in
120W 24Vdc Single Output Switching LED Power Supply, IP67, GPV-120-24
120W 24Vdc Single Output Switching LED Power Supply, IP67, GPV-120-24

120W 24Vdc Single Output Switching LED Power Supply, IP67, GPV-120-24

29.00 VAT excl.
£34.80 VAT incl.

120W 24Vdc Single Output Switching LED Power Supply

- Suitable for LED lighting
- Universal AC input
- Constant voltage design: 24Vdc
- Isolation class II
- Fully encapsulated with IP67 level

3 Items
Last items in stock


You can order online 24/7, all ordered goods will be dispatched as soon as possible and we will notify you via e-mail. For custom made orders please contact us.



Orders over £500 (excl. VAT) Standard and Next Day service apply to UK mainland and Northern Ireland only. All orders will be sent by a trackable method.



You have the right to cancel your online website order within 14 calendar working days of ordering, or 14 calendar days of receipt of the goods (whichever is the longer).

120W 24Vdc Single Output Switching LED Power Supply
Model: GPV-120-24

Output:
LED driver mode: constant voltage
Output Voltage: 24Vdc
No of outputs: 1
Rated current: 5A
Current range: 0-5A
Rated power: 120W
Line regulation: ± 1%
Load regulation: ± 2%
Voltage tolerance: ± 5%
Ripple & noise (max.): 300mVP-P
Setup, rise time: 500ms, 50ms / 230VAC at full load
Hold up time (typ.): 18ms / 230VAC at full load

Input:
Input Voltage: 90 ÷ 264VAC; 127 ÷ 370VDC
Frequency range: 47 ÷ 63Hz
Efficiency: 89%
AC current (typ.): 1.7A / 230VAC
Inrush current (typ.): 50A/ 230VAC
Leakage current(max.): <0.25mA / 240VAC
Protections:
Overcurrent:
- range:  110 ÷ 150% rated output current
- type: hiccup mode, auto-recovery
Short circuit:
- type: hiccup mode, auto-recovery
Over voltage:
- 25÷ 36V
- type: hiccup mode, auto-recovery
Over temperature:
- range: 140°C ± 10°C detect on main control IC
- type: shut-off, auto-recovery

Environment:
Working temperature: -30°C ÷ 70°C (Refer to Derating Curve)
Working humidity: 20 ÷ 90% RH non-condensing
Storage temperature and humidity: -40°C ÷ 80°C, 10 ÷ 95% RH non-condensing
Temperature coefficient: ± 0.03% / °C (0°C ÷ 50°C)
Vibration: 10 ÷ 500Hz, 5G, 12min / cycle, period for 72min. each along X, Y, Z axes
Safety and EMC regulations:
Safety standards: compliance to EN61347-1, EN61347-2-13, IP67
Withstand voltage: I-P/O-P: 3kVAC
Isolation resistance: I-P/O-P: 100MΩ/500VDC/25°C/70%
EMC emission: compliance to EN55015
EMC immunity: compliance to EN61547; EN55024; EN61000-4-2, -3, -4, -5, -6, -8, -11
Harmonic current: compliance to EN61000-3-3; EN61000-3-2
TÜV certificate

Other:

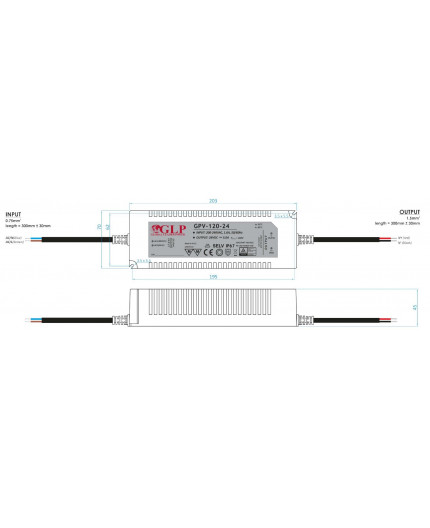

Dimensions: 187 x 42 x 33mm (L x W x H)
Weight: 0.62kg
Termination style: flying leads, approx. 250mm ± 50mm (UL 1015 18AWG (0.82mm ))
IP67
GPV-120-24
3 Items

Data sheet

Type
Constant Voltage
Ingress Protection (IP)
IP67
Output
24VDC
Wattage
120W
Dimming Control
Non-dimmable
Design
Plastic case
