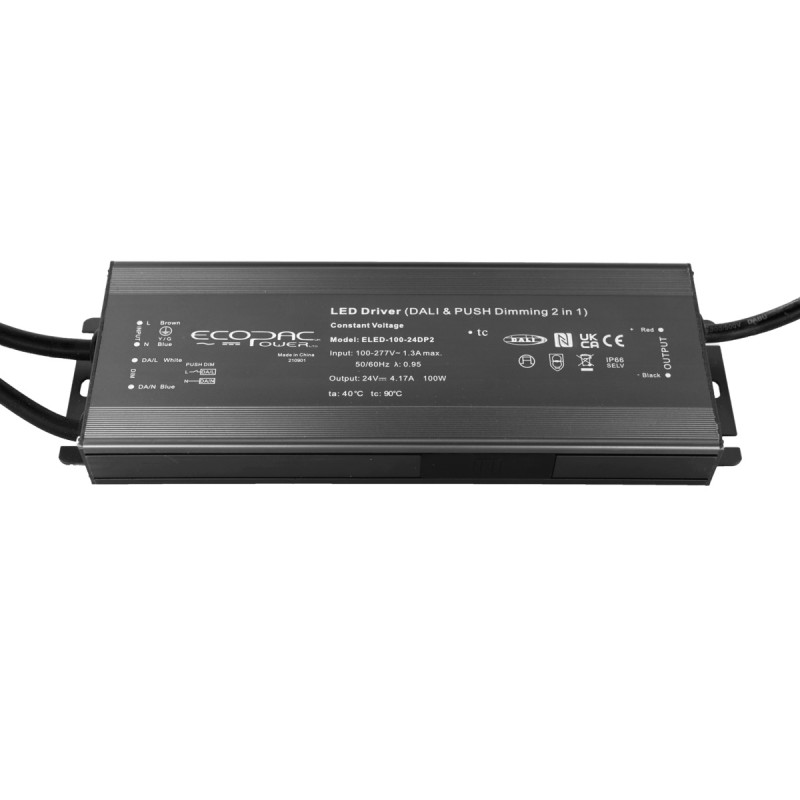

24Vdc 150W Constant Voltage LED Drivers for CCT tunable LED lights

Name: 24Vdc 150W Constant Voltage LED Drivers for CCT tunable LED lights
Brand: Ecopac (UK) Power Ltd
SKU: ELED-150-24DP2 DT8
Price: 134.4 GBP
Availability: InStock

112.00 VAT excl.

£134.40 VAT incl.

- DT8- warm white and cool white dimming
- Constant voltage/ PWM Output (NFC regulation)

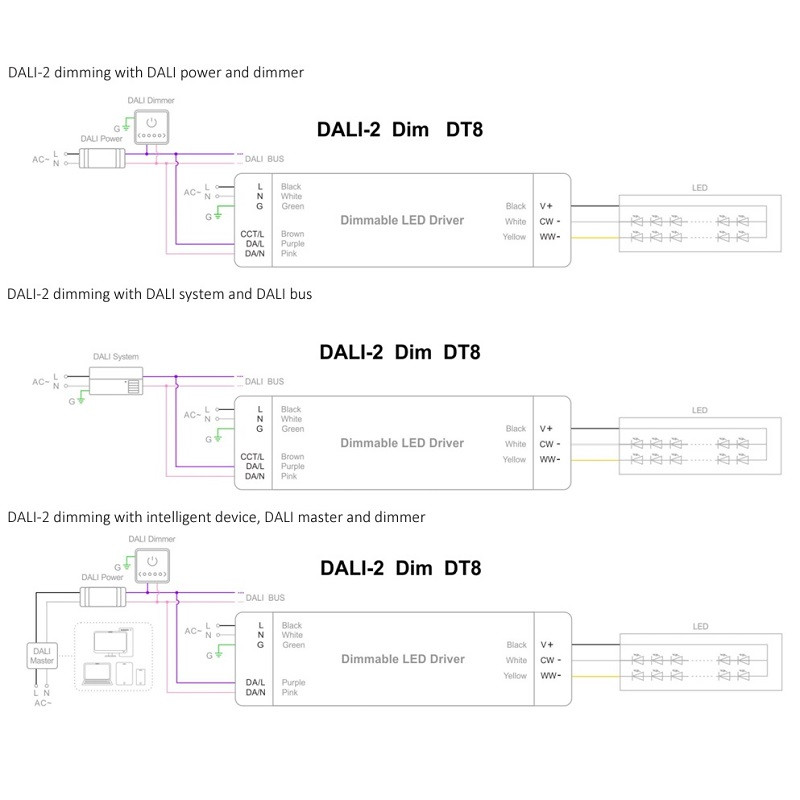

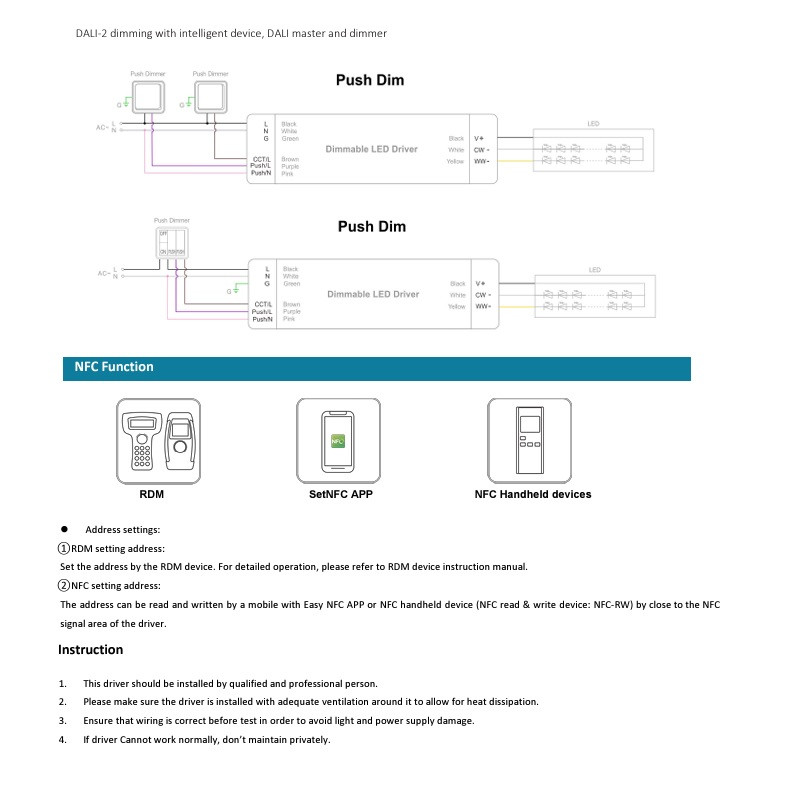

- DALI & Push dimming function
- AC input: 200-240VAC
- Built-in active PFC function
- Efficiency up to 89%
- Protections: Short circuit/ Over load/Over temperature
- Cooling by free air convection
- IP66 design for indoor and outdoor installation.
- Suitable for intelligent LED lighting

Volume discounts

Quantity	Unit price	You Save
5	£134.40	£6.72
10	£134.40	£26.88
20	£134.40	£80.64
50	£134.40	£268.80
100	£134.40	£672.00

In stock 100 Items

Last items in stock

You can order online 24/7, all ordered goods will be dispatched as soon as possible and we will notify you via e-mail. For custom made orders please contact us.

Orders over £500 (excl. VAT) Standard and Next Day service apply to UK mainland and Northern Ireland only. All orders will be sent by a trackable method.

You have the right to cancel your online website order within 14 calendar working days of ordering, or 14 calendar days of receipt of the goods (whichever is the longer).

100W DALI 2 & Push Dimmable DT8 LED Driver

Model: ELED-100-24DP2 DT8
Output DC voltage: 24V (24-26V adjust by NFC)
Voltage Tolerance: ± 0.5%
Output Current: 6.25A
Rated power: 150W
Load Regulation: ± 2%
Input Voltage Range: 100-277VAC
Frequency Range: 47-63HZ
Inrush Current: 38.4A, 50%, 510us @120VAC; 88A, 50% , 120us @230VAC;48A, 50% , 560us @277VAC
Power Factor ( Typ.): PF≥0.98@120VAC PF≥0.96@230VAC PF≥0.95@277VAC (Full loading)
Full Load Efficiency(Typ.): 93.5%
AC Current(Typ.): 1.7A
Leakage current: <0.5mA
Protections: Short Circuit (Constant current mode, recovers automatically after fault condition is removed)
Over Loading ≤120% constant current limiting, recovers automatically after fault condition is removed
Over Temp. 100°C± 10°C
Protection Class: I
Built-in active PFC function
Cooling by free air convection
Working TEMP.: -40~+60°C (Refer to derating curve)
Working Humidity: 20 -95% RH, non-condensing
Storage TEMP.-40～+80℃，10～95%RH
Temperature Coefficient: ±0.03%/℃（0～50℃）
Vibration: 10～500Hz, 2G 10min./1 cycle, period for 60min.each along X,Y,Z axes
Safety standards: EN61347-1, EN61347-2-13, EN62493, IP66
Withstand voltage: I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC
Isolation resistance: I/P-O/P I/P-FG O/P-FG: 100MΩ/500VDC/25°C/70%RH
EMC Emission: Compliance to EN55015, EN61000-3-2, EN61000-3-3 (≥60% load)
EMC Immunity: Compliance to EN61000-4-2,3,4,5,6,11, EN61547
Weight: 1.05 Kg

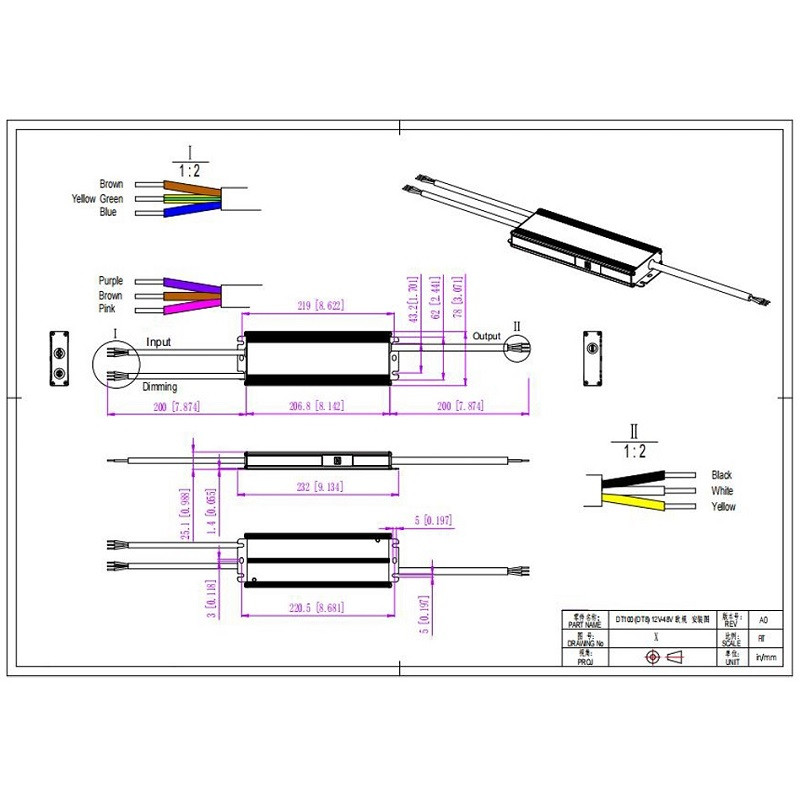

Dimensions: 231x 78 x 25.1 mm
