12Vdc 15W Triac dimmable (leading edge) LED driver, ELED-15-12T

12Vdc 15W Triac dimmable (leading edge) LED driver, ELED-15-12T

£20.00

£20.00 VAT excluded

Volume discounts

Quantity Unit discount You Save
10 1% Up to £2.00
20 2% Up to £8.00
50 3% Up to £30.00
100 4% Up to £80.00
200 5% Up to £200.00
Quantity
in-stock

15W 12Vdc Constant Voltage Triac dimmable LED driver for 12Vdc LED lights

- Constant Voltage Design, 12Vdc
- IP20 design
- Suitable for LED lighting and moving sign applications



You can order online 24/7, all ordered goods will be dispatched as soon as possible and we will notify you via e-mail. For custom made orders please contact us.



Orders over £500 (excl. VAT) Standard and Next Day service apply to UK mainland and Northern Ireland only. All orders will be sent by a trackable method.



You have the right to cancel your online website order within 14 calendar working days of ordering, or 14 calendar days of receipt of the goods (whichever is the longer).

12Vdc 15W Triac dimmable (leading edge) LED driver

Model: ELED-15-12T
Output DC voltage: 12V
Rated current: 1.25A
Voltage accuracy: ±0.5V
Rated power: 15W
Min. load: 2.5W
Input Voltage Range: 180-240VAC
Frequency Range: 47-63HZ
Power Factor ( Typ.): PF ≥ 0.65
Full Load Efficiency(Typ.): 80%
AC Current(Max): 0.17A
Leakage current: <0.70mA/220VAC
Protections: Short Circuit/ Over Loading/ Over Current
Cooling by free air convection

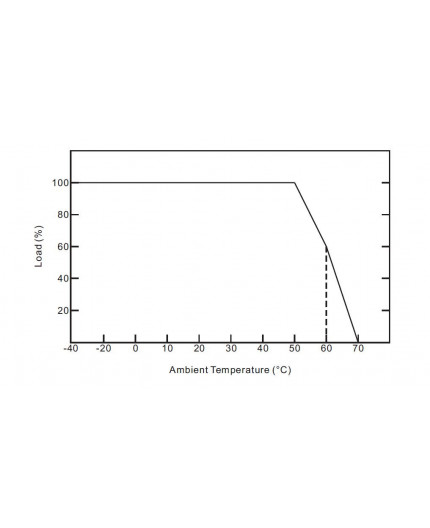

Working TEMP.: -40~+70°C
Working Humidity: 20~90%RH,non-condensing
Storage TEMP. -40*C - +80*V
Humidity: ±0.03%/°C (0-50°C)
Vibration: 10~500Hz,2G 10min./1 cycle, period for 72min. each along X,Y,Z axes.
Withstand voltage: I/P-O/P:3.75KVAC
Isolation Voltage In/ Out 3750VAC EMI EN55015 Class B Safety EN61347-1, EN61347-2-13 EMC Emission EN55015, EN61000-3-2,3 (>50% loading) EMC Immunity EN61000-4-2,3,4,5,6,11 (Surge 4KV)

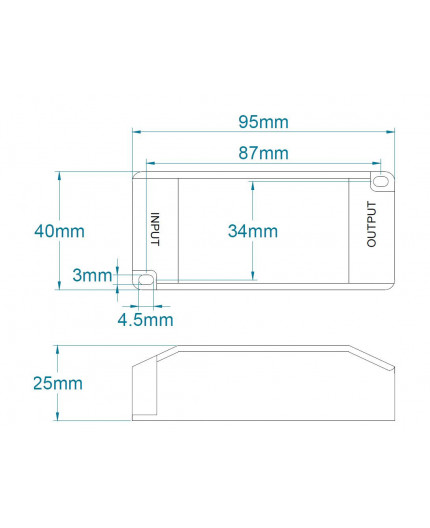

Dimensions: 95x 40x 25mm (L*W*H)
Packing: 0.2kg
NOTE: ELED-15-12T prefers leading edge dimmers

ELED-15-12T
200 Items

Data sheet

Type
Constant Voltage
Ingress Protection (IP)
IP20 (non-waterproof)
Output
12VDC
Wattage
15W
Dimming Control
Trailing / Leading edge
Design
Plastic case
