48W 24Vdc Single Output Switching LED Power Supply, GL Power, TÜV
- Suitable for LED lighting
- Universal AC input
- Constant voltage design: 24Vdc
- Fully encapsulated with IP67 level

85 Items
Last items in stock


You can order online 24/7, all ordered goods will be dispatched as soon as possible and we will notify you via e-mail. For custom made orders please contact us.



Orders over £500 (excl. VAT) Standard and Next Day service apply to UK mainland and Northern Ireland only. All orders will be sent by a trackable method.



You have the right to cancel your online website order within 14 calendar working days of ordering, or 14 calendar days of receipt of the goods (whichever is the longer).

48W 24Vdc Single Output Switching LED Power Supply, GL Power, TÜV certificate
Model: GPV-50-24

Output:
LED driver mode: constant voltage
Output Voltage: 24Vdc
No of outputs: 1
Rated current: 2A
Current range: 0-2A
Rated power: 48W
Line regulation: ± 1%
Load regulation: ± 2%
Voltage tolerance: ± 3%
Ripple & noise (max.): 200mVP-P
Setup, rise time: 500ms, 250ms / 230VAC; 1000ms, 250ms / 115VAC at full load
Hold up time (typ.): 50ms / 230VAC, 24ms / 115VAC at full load

Input:
Input Voltage: 90-264Vac
Frequency range: 47 ÷ 63Hz
Efficiency: 82%
AC current (typ.): 1.0A/115VAC, 0.55A / 230VAC
Inrush current (typ.): 70A / 230VAC, 35A / 115VAC
Leakage current(max.): 0.25mA / 240VAC
Protections:
Overcurrent:
- range: 150 ÷ 200% rated current
- type: hiccup mode, auto-recovery
Short circuit:
- type: hiccup mode, auto-recovery
Over voltage:
- 27 ÷ 33V
- type: hiccup mode, auto-recovery
Over temperature:
- 140°C±10°C(detect on main control IC)
- type: shut down output voltage. Recovers automatically after temperature goes down

Environment:
Working temperature: -30°C ÷ 70°C (Refer to Derating Curve)
Working humidity: 20 ÷ 90% RH non-condensing
Storage temperature and humidity: -40°C ÷ 80°C, 10 ÷ 95% RH non-condensing
Temperature coefficient: ± 0.03% / °C (0°C ÷ 50°C)
Vibration: 10 ÷ 500Hz, 2G, 10min / cycle, period for 60min. each along X, Y, Z axes
Safety and EMC regulations:
Safety standards: compliance to EN61347-1, EN61347-2-13, IP67
Withstand voltage: I-P/O-P: 3kVAC
Isolation resistance: I-P/O-P; O-P/FG; I-P/FG: 100MΩ/500VDC/25°C/70%
EMC emission: compliance to EN55015
EMC immunity: compliance to EN61547; EN55024; EN61000-4-2, -3, -4, -5, -6, -8, -11
Harmonic current: compliance to EN61000-3-3; EN61000-3-2

Other:

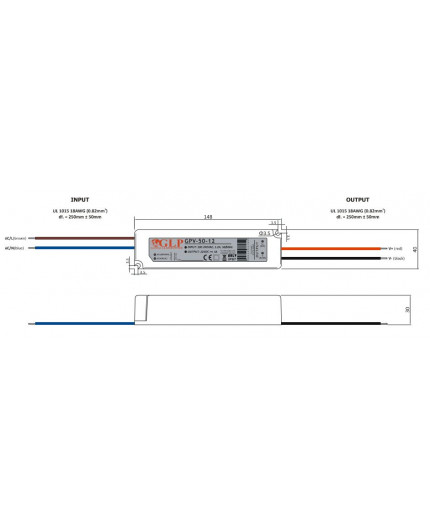

Dimensions: 148 x 40 x 30mm
Weight: 0.34kg
Termination style: flying leads, approx. 250mm ± 50mm (UL 1015 18AWG (0.82mm ))
IP67
GPV-50-24
85 Items

Data sheet

Type
Constant Voltage
Ingress Protection (IP)
IP67
Output
24VDC
Wattage
48W
Dimming Control
Non-dimmable
Design
Plastic case
