15W 24Vdc Constant Voltage LED Driver, LED15-24CV-S, Govena
6W, 12Vdc, IP20, LED Driver for LED lamps and LED tapes / strips

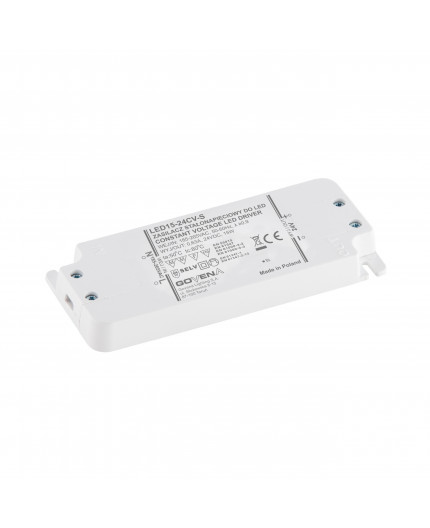

15W 24Vdc Constant Voltage LED Driver, LED15-24CV-S, Govena

9.90 VAT excl.
£11.88 VAT incl.

15W, 24Vdc, constant voltage LED Driver
Fully isolated plastic case
Output: 24VDC, max. 0.63A
Short circuit/ Over load/ Over voltage/ Over temperature
Cooling by free air

21 Items
Last items in stock


You can order online 24/7, all ordered goods will be dispatched as soon as possible and we will notify you via e-mail. For custom made orders please contact us.



Orders over £500 (excl. VAT) Standard and Next Day service apply to UK mainland and Northern Ireland only. All orders will be sent by a trackable method.



You have the right to cancel your online website order within 14 calendar working days of ordering, or 14 calendar days of receipt of the goods (whichever is the longer).

15W 24Vdc Constant Voltage LED Driver, Govena

Product code: Z-LED-15W-24CV-SLIM
Rated power: 15W
Power range: from 2.5W to 15W
Output voltage: 24VDC
Constant voltage range: 0.1-0.63A
Rated current: 0.63A
Voltage tolerance: ±2%
Line regulation: ±2.5%
Input voltage: 185-265 VAC / 260-375 VDC
Frequency range: 47-53Hz
Turn-on delay: ≤ 600ms/ 230VAC at 100% load
Output stabilization: Constant voltage
Power factor: at 100% load and 230Vac - 0.95; at 60%-100% load and 230Vac - ≥0.90
Efficiencey: 86%
Inrush current: <18A
No load power consumption (standby): 0.25W

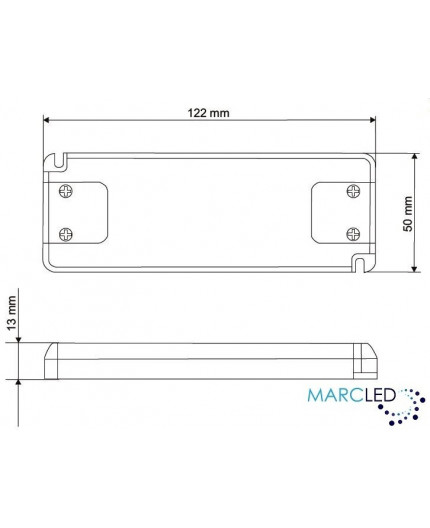

Dimensions: L 122 mm x W 50 mm x H 13 mm
Weight: 55 g
Dimmable: No
Protection degree: IP20
Over Current: Constant current limiting, recovers automatically after fault condition is removed
Short Circuit: Hiccup mode, recovers automatically after fault condition is removed
Over Voltage:  34V; protection type: Constant voltage limiting
Over temperature: 85 ± 10°C , protection type: Decrease in output voltage and output power
Working temperature ta: -20*C - +45*C
Working humidity: 10-95%RH
Storage temperature/humidity: -20*C - +75*C/10-95%RH
Case temperature tc: max. 80*C
Meets standards: EN 61347-1, EN 61347-2-13, EN 55015, EN 61547, EN 61000-3-2, EN 61000-3-3

LED15W-24CV-S
21 Items

Data sheet

Type
Constant Voltage
Ingress Protection (IP)
IP20 (non-waterproof)
Output
24VDC
Wattage
15W
Dimming Control
Non-dimmable
Design
Plastic case
