36W 12Vdc Single Output Switching LED Power Supply active PFC function
15.20 VAT excl.
£18.24 VAT incl.
GL Power, 36W 12Vdc Constant voltage LED Power Supply, Single Output, pfc-function GPVP-35-12
- Suitable for LED lighting
- IP67
You can order online 24/7, all ordered goods will be dispatched as soon as possible and we will notify you via e-mail. For custom made orders please contact us.
Orders over £500 (excl. VAT) Standard and Next Day service apply to UK mainland and Northern Ireland only. All orders will be sent by a trackable method.
You have the right to cancel your online website order within 14 calendar working days of ordering, or 14 calendar days of receipt of the goods (whichever is the longer).

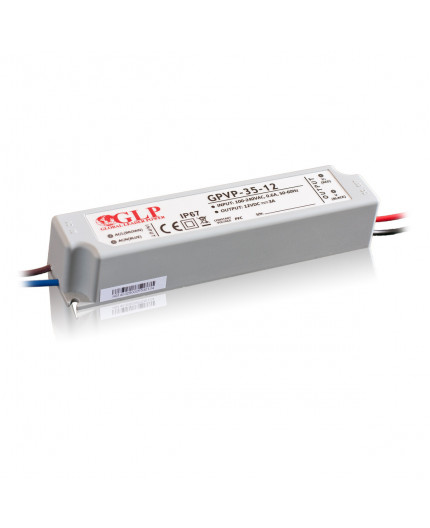

36W 12Vdc Single Output Switching LED Power Supply, GL Power, built-in active PFC function
Model: GPVP-35-12
Output:
LED driver mode: constant voltage
Output Voltage: 12Vdc
No of outputs: 1
Output Voltage: 12Vdc
No of outputs: 1
Rated current: 3A
Current range: 0-3A
Rated power: 36W
Line regulation: ± 1%
Load regulation: ± 2%
Voltage tolerance: ± 5%
Ripple & noise (max.): 5VP-P
Setup, rise time: 2000ms, 250ms / 230VAC; 3000ms, 250ms / 115VAC at full load
Rated power: 36W
Line regulation: ± 1%
Load regulation: ± 2%
Voltage tolerance: ± 5%
Ripple & noise (max.): 5VP-P
Setup, rise time: 2000ms, 250ms / 230VAC; 3000ms, 250ms / 115VAC at full load
Input:
Input Voltage: 90-264Vac
Frequency range: 47 ÷ 63Hz
Efficiency: 82%
AC current (typ.): 0.6A/115VAC, 0.3A / 230VAC
Power factor: PF > 0.9 / 230VAC; PF > 0.95 / 115VAC
Input Voltage: 90-264Vac
Frequency range: 47 ÷ 63Hz
Efficiency: 82%
AC current (typ.): 0.6A/115VAC, 0.3A / 230VAC
Power factor: PF > 0.9 / 230VAC; PF > 0.95 / 115VAC
Inrush current (typ.): 65A / 230VAC
Leakage current(max.): 1mA / 240VAC
Leakage current(max.): 1mA / 240VAC
Protections:
Overcurrent:
- range: 110 ÷ 130%;
- type: constant current limiting, auto-recovery
Overcurrent:
- range: 110 ÷ 130%;
- type: constant current limiting, auto-recovery
Short circuit:
- type: hiccup mode, auto-recovery
Environment:
Working temperature: -30°C ÷ 70°C (Refer to Derating Curve)
Working humidity: 20 ÷ 90% RH non-condensing
Storage temperature and humidity: -40°C ÷ 80°C, 10 ÷ 95% RH non-condensing
Temperature coefficient: ± 0.03% / °C (0°C ÷ 50°C)
Vibration: 10 ÷ 500Hz, 2G, 10min / cycle, period for 60min. each along X, Y, Z axes
Working humidity: 20 ÷ 90% RH non-condensing
Storage temperature and humidity: -40°C ÷ 80°C, 10 ÷ 95% RH non-condensing
Temperature coefficient: ± 0.03% / °C (0°C ÷ 50°C)
Vibration: 10 ÷ 500Hz, 2G, 10min / cycle, period for 60min. each along X, Y, Z axes
Safety and EMC regulations:
Safety standards: compliance to EN61347-1, EN61347-2-13, IP67
Withstand voltage: I-P/O-P: 3kVAC
Isolation resistance: I-P/O-P; O-P/FG; I-P/FG: 100MΩ/500VDC/25°C/70%
EMC emission: compliance to EN55015
EMC immunity: compliance to EN61547; EN55024; EN61000-4-2, -3, -4, -5, -6, -8, -11
Harmonic current: compliance to EN61000-3-3; EN61000-3-2 class C (≥ 60% load)
Safety standards: compliance to EN61347-1, EN61347-2-13, IP67
Withstand voltage: I-P/O-P: 3kVAC
Isolation resistance: I-P/O-P; O-P/FG; I-P/FG: 100MΩ/500VDC/25°C/70%
EMC emission: compliance to EN55015
EMC immunity: compliance to EN61547; EN55024; EN61000-4-2, -3, -4, -5, -6, -8, -11
Harmonic current: compliance to EN61000-3-3; EN61000-3-2 class C (≥ 60% load)
Other:

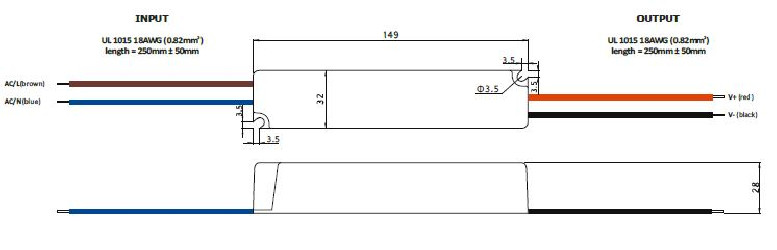

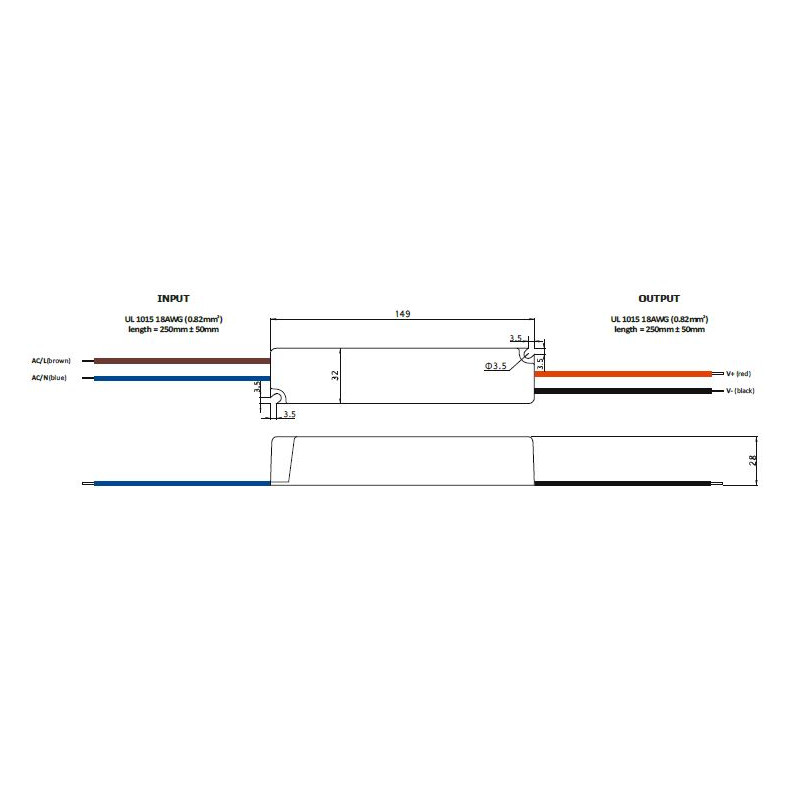

Dimensions: 149 x 32 x 28mm
Weight: 0.25kg
Termination style: flying leads, approx. 250mm ± 50mm (UL 1015 18AWG (0.82mm))
IP67
GPVP-35-12
1 Item
Data sheet
- Type
- Constant Voltage
- Ingress Protection (IP)
- IP67
- Output
- 12VDC
- Wattage
- 36W
- Dimming Control
- Non-dimmable
- Design
- Plastic case
- Power factor correction (PFC)
- Built-in active PFC function
