200W Mains to 24Vdc Triac dimmable LED driver, IP66 ELED-200-24T

Name: 200W Mains to 24Vdc Triac dimmable LED driver, IP66 ELED-200-24T
Brand: Ecopac (UK) Power Ltd
SKU: ELED-200P-24T
Price: 127.2 GBP
Availability: InStock

106.00 VAT excl.

£127.20 VAT incl.

200W 24Vdc Constant Voltage Triac dimmable LED driver, ELED-200-24T for 24Vdc LED lights
- Constant Voltage Design, 24Vdc

Volume discounts

Quantity	Unit price	You Save
5	£127.20	£6.36
10	£127.20	£25.44
20	£127.20	£76.32
50	£127.20	£254.40
100	£127.20	£636.00

In stock 88 Items

Last items in stock

You can order online 24/7, all ordered goods will be dispatched as soon as possible and we will notify you via e-mail. For custom made orders please contact us.

Orders over £500 (excl. VAT) Standard and Next Day service apply to UK mainland and Northern Ireland only. All orders will be sent by a trackable method.

You have the right to cancel your online website order within 14 calendar working days of ordering, or 14 calendar days of receipt of the goods (whichever is the longer).

200W Mains to 24Vdc Triac dimmable LED driver, IP66

Model: ELED-200-24T
Output DC voltage: 24V
Rated current: 8.33A
Voltage accuracy: ±0.5V
Rated power: 200W
Min. load: 20W
Input Voltage Range: 180-240VAC
Frequency Range: 47-63HZ
Power Factor ( Typ.): PF ≥ 0.6/220V
Full Load Efficiency(Typ.): 86%
AC Current(Typ.): 1.76A
Leakage current: <0.70mA/220V
Short Circuit: Hiccup mode, recovers automatically after fault condition is removed.
Over voltage: ≤240VAC
Over curent: ≤1.4L out
Working TEMP.: -40~+60°C
Working Humidity: 20~99%RH,non-condensing
Storage TEMP.-40*C - +80*V
Humidity: ±0.03%/°C(0-50°C)
Vibration: 10~500Hz,5G 10min./1 cycle, period for 60min.each along X,Y,Z axes.
Safety standards: EN60950-1, IP66
Withstand voltage: I/P-O/P:3.75KVAC
Isolation resistance: I/P-O/P I/P-FG O/P-FG: 100MΩ/500VDC/25°C/70%RH
EMC EMISSION: Compliance to EN55015, EN61000-3-2 ( ≥ 50%load) EMC IMMUNITY: Compliance to EN61000-4-2,3,4,5,6,8, 11, EN61547,A light industry level

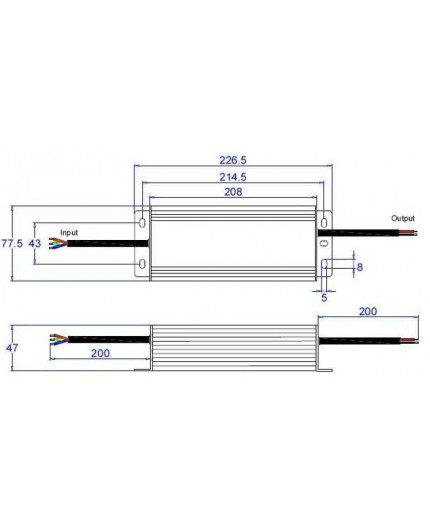

Dimensions: 226.5*77.5*47mm (L*W*H)
Packing: 1.8Kg

NOTE: ELED-200-24T prefers leading edge dimmers
