37.00 VAT excl.
£44.40 VAT incl.

24VDC LED tape,  YELLOW colour, 120 LED/m, 9.6 W/m, 8mm white PCB, IP20, length: 5m (48W, 600LEDs), with connection wires at both ends, SMD3528

Volume discounts

Quantity Unit price You Save
5 £37.00 £1.85
10 £37.00 £7.40
20 £37.00 £22.20
50 £37.00 £74.00
100 £37.00 £185.00
100 Items
Last items in stock


You can order online 24/7, all ordered goods will be dispatched as soon as possible and we will notify you via e-mail. For custom made orders please contact us.



Orders over £500 (excl. VAT) Standard and Next Day service apply to UK mainland and Northern Ireland only. All orders will be sent by a trackable method.



You have the right to cancel your online website order within 14 calendar working days of ordering, or 14 calendar days of receipt of the goods (whichever is the longer).

24VDC LED tape, yellow, 9.6W/m, 120LED/m, 5m (48W, 600 LED), IP20, SMD3528

LED chip: SMD3528
Input voltage: 24VDC
Type of LED power supply/driver: constant voltage
Number of LEDs per meter: 120
Power: 9.6W/m
Colour temperature (CCT): YELLOW
YELLOW Brightness: approx. 264lm/m
Beam angle: 120 degree
CRI(Ra)≥80
Energy Efficiency Rating: A+

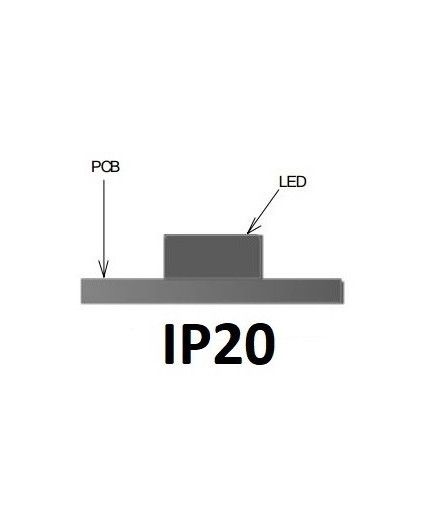

Degree of protection: IP20 (non-waterproof)

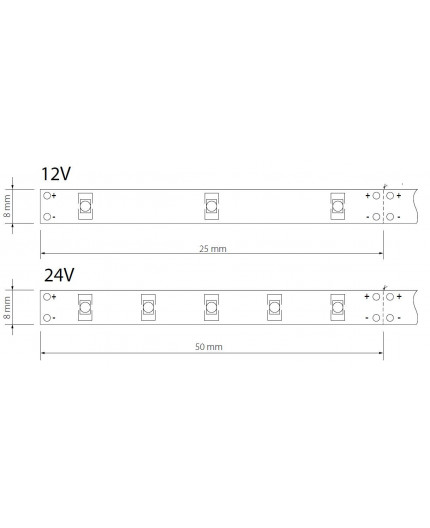

Width of PCB: 8mm
Installation: 8mm wide self-adhesive 3M tape backing
Cutting points: at 6 LED (50mm) intervals
Connections: with approx. 200mm connection wires at both ends
Operation temperature: -20℃-+45℃
Average life span: 50000h
Packing (total length): 5m (48W, 600LEDs)
Warranty: 3 years
Dimming: yes (0-10V/1-10V/DMX/DALI/Triac)

Note:

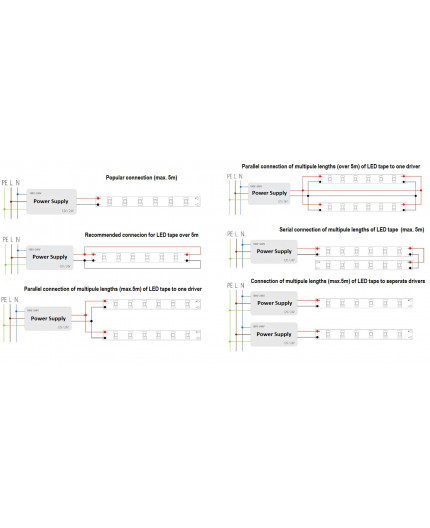

Adopt a suitable LED power supply to match the LED tapes.
The power of the LED power supply should be 20% bigger than the max power of LED tapes in order to ensure the long-time performance of the LED power supply.

ML-F3528A60-Y-24
100 Items

Data sheet

Light colour
Yellow
LED quantity
120LEDs/m
Ingress Protection (IP)
IP20 (non-waterproof)
PCB width
8mm
Length
5.0m / 5000mm
Watts per metre
9.6W/m
Features
Single Colour
Input voltage
24VDC
CRI
≥80
Version
Constant Voltage (CV)
LED chip
SMD3528
Cutting
50mm
Lumens per metre
500 - 999 lm/m
Beam angle
120 degree
