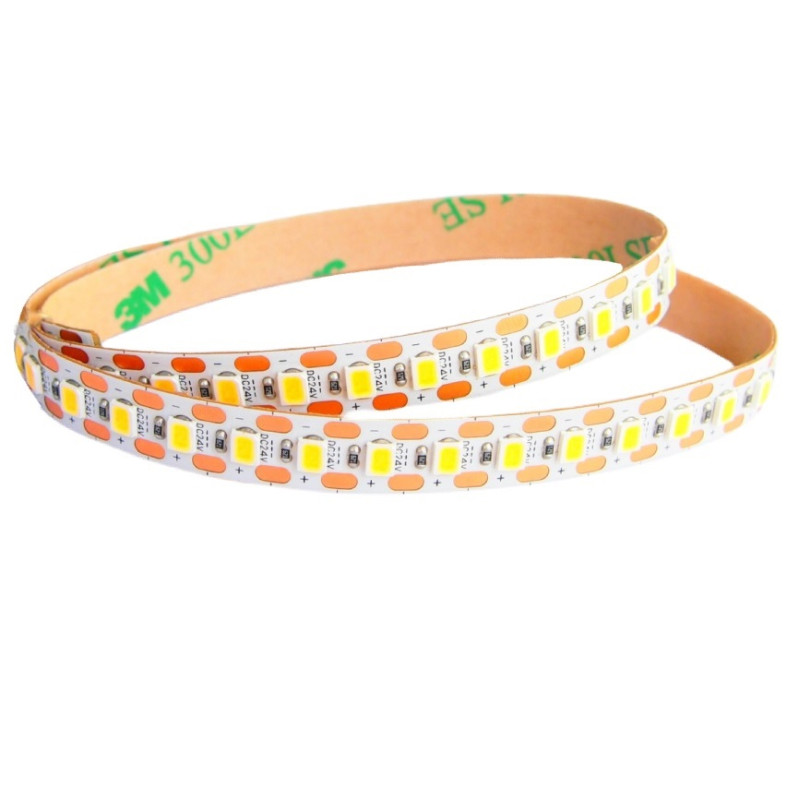

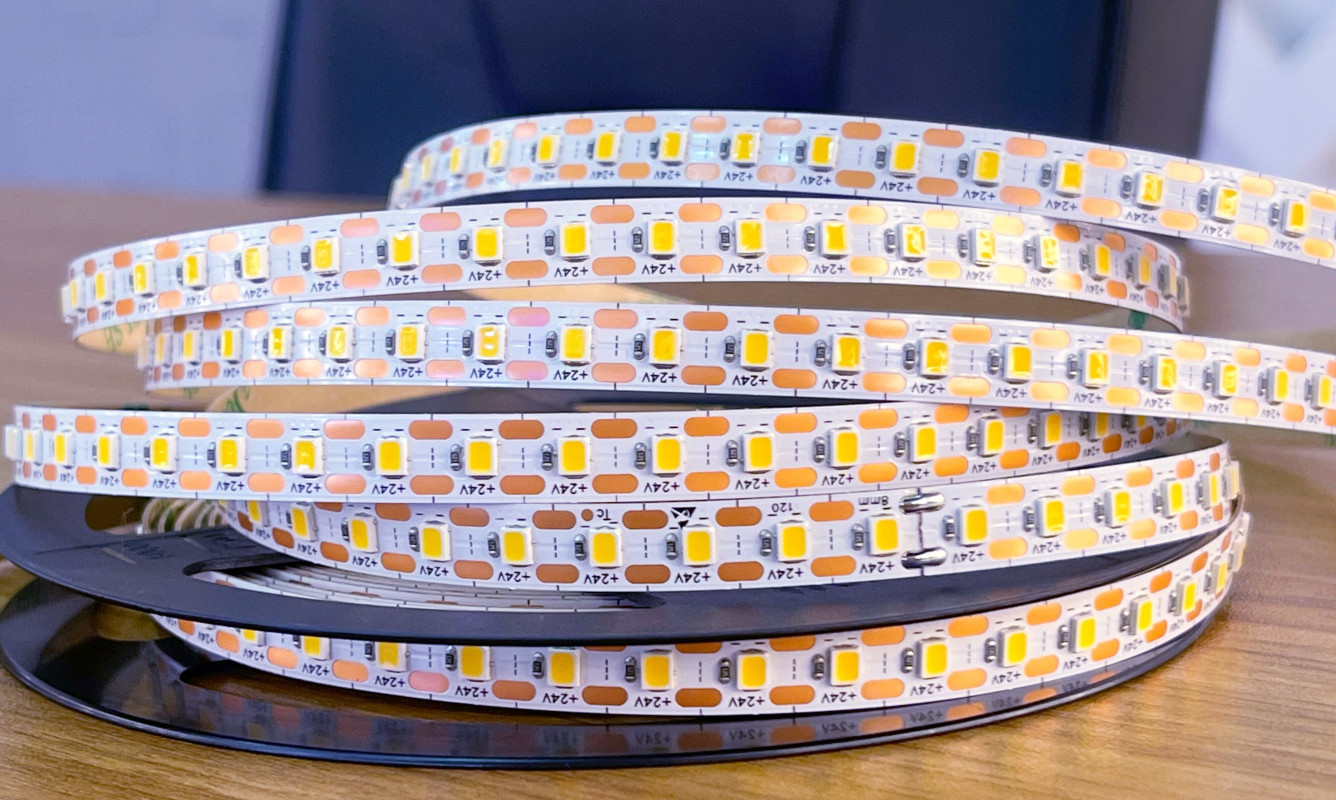

24VDC LED tape, 1-LED cut (10mm), 5000K, 8.4W/m, 100LED/m, 5m, IP20, SMD2835
28.00 VAT excl.
£33.60 VAT incl.
24VDC LED tape, 5000K, CRI90+, 100LED/m, 8.4 W/m, 8mm white PCB, IP20, length: 5m (42W, 500LEDs), with connection wires at both ends, SMD2835
1-LED cut
You can order online 24/7, all ordered goods will be dispatched as soon as possible and we will notify you via e-mail. For custom made orders please contact us.
Orders over £500 (excl. VAT) Standard and Next Day service apply to UK mainland and Northern Ireland only. All orders will be sent by a trackable method.
You have the right to cancel your online website order within 14 calendar working days of ordering, or 14 calendar days of receipt of the goods (whichever is the longer).
24VDC LED tape, 5000K, 8.4W/m, 100LED/m, 5m (42W, 500 LED), IP20, SMD2835, 1-LED cut
Applications:
- car decoration
- architectural decorative lighting
- furniture lighting
- backlighting for signage letters
- etc.
LED chip: SMD2835
Input voltage: 24VDC
Type of LED power supply/driver: constant voltage
Number of LEDs per meter: 100
Power: 8.4W/m
Colour temperature (CCT): 5000K
Brightness: approx. 1080lm/m
Beam angle: 120 degree
CRI(Ra)≥90
Energy Efficiency Rating: E

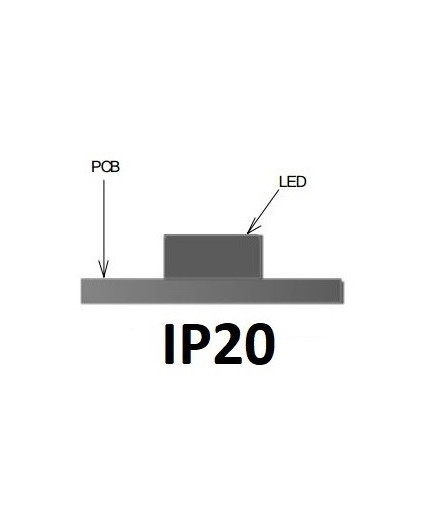

Degree of protection: IP20 (non-waterproof)
Width of PCB: 8mm
Installation: 8mm wide self-adhesive 3M tape backing
Cutting points: at 1-LED (10mm) intervals
Connections: with approx. 300mm connection wires at both ends
Operation temperature: -20℃-+45℃
Average life span: 50000h
Packing (total length): 5m (42W, 500LEDs)
Dimming: yes (0-10V/1-10V/DMX/DALI/Triac) (0-10V/1-10V/DMX/DALI/Triac)
UL, CUL, CE, RoHS approved
Comply with the European ErP EcoDesign regulation
Warranty: one year
Note:

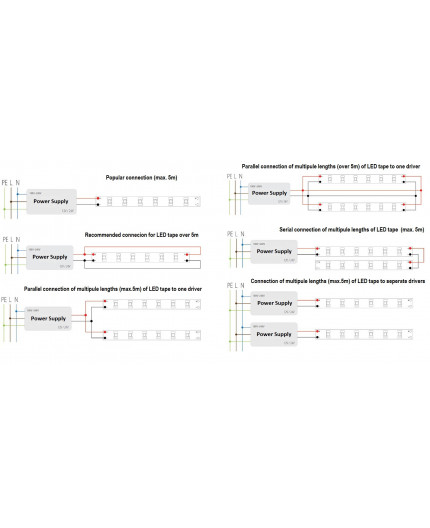

Adopt a suitable LED power supply to match the LED tapes.
To ensure its long-term performance, the power of the LED power supply should be 20% bigger than the maximum power of LED tapes.
ML-F2835A50SA-NP-24-CES1P
5 Items
Data sheet
- Light colour
- Cool white
- LED quantity
- 100LEDs/m
- Colour temperature (CCT)
- 5000K
- Ingress Protection (IP)
- IP20 (non-waterproof)
- PCB width
- 8mm
- Length
- 5.0m / 5000mm
- Watts per metre
- 8.4W/m
- Features
- Single Colour
- Input voltage
- 24VDC
- CRI
- ≥90
- Version
- Constant Voltage (CV)
- LED chip
- SMD2835
- Cutting
- 10mm (1-LED)
- Lumens per metre
- 1000 - 1999 lm/m
- Beam angle
- 120 degree
