2m opal diffuser / housing NP1 for LED strip up to 8mm and up to 10W/m
£12.00
2m opal diffuser / housing NP1 for LED strip up to 8mm and up to 10W/m
10.00 VAT excl.
£12.00 VAT incl.

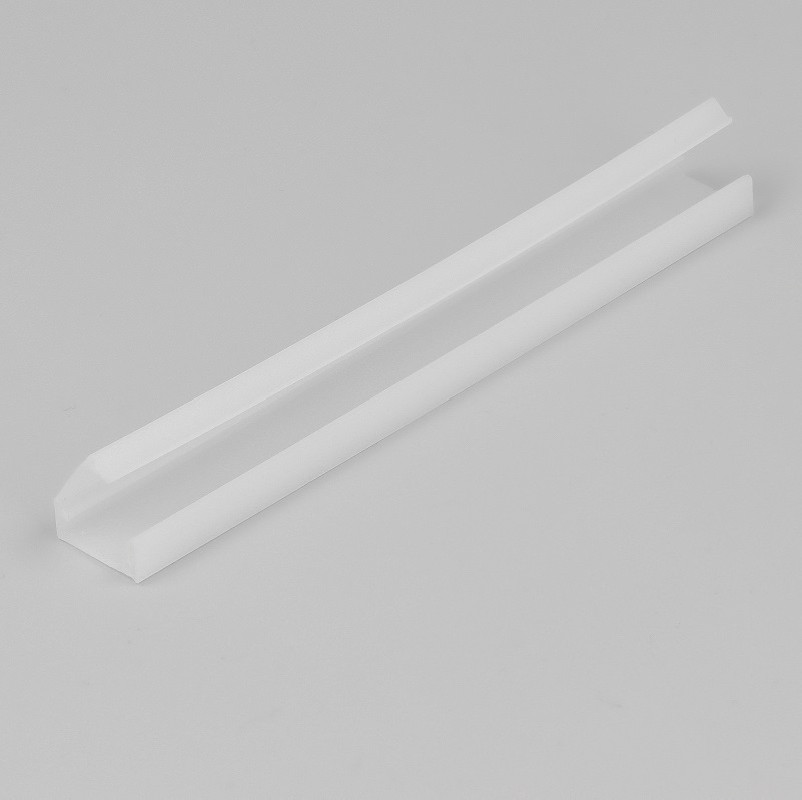

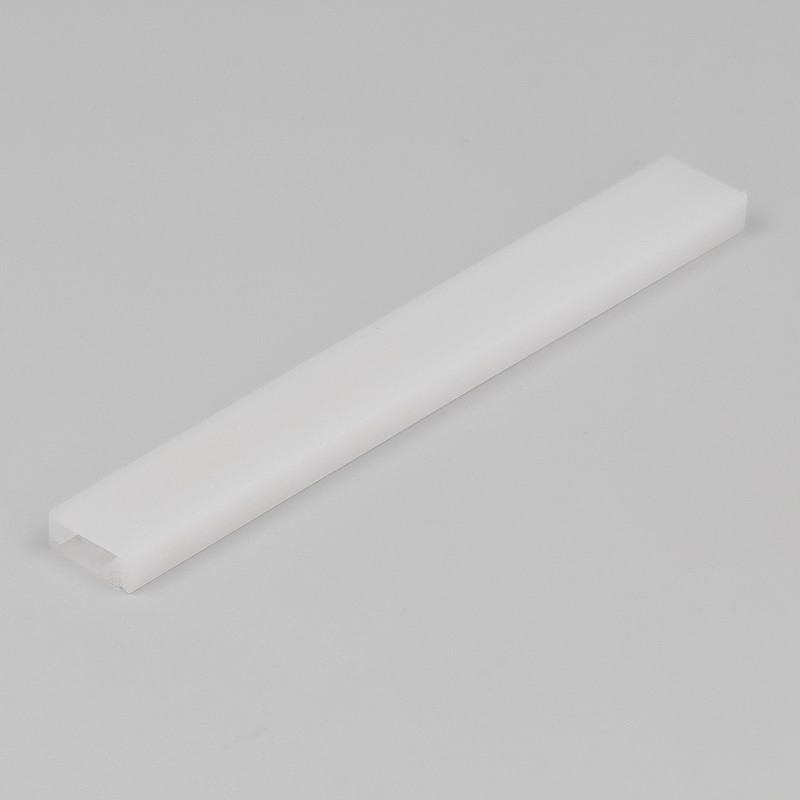

The PC extrusion (opal) is designed for LED strips 8mm.
Length: 2m

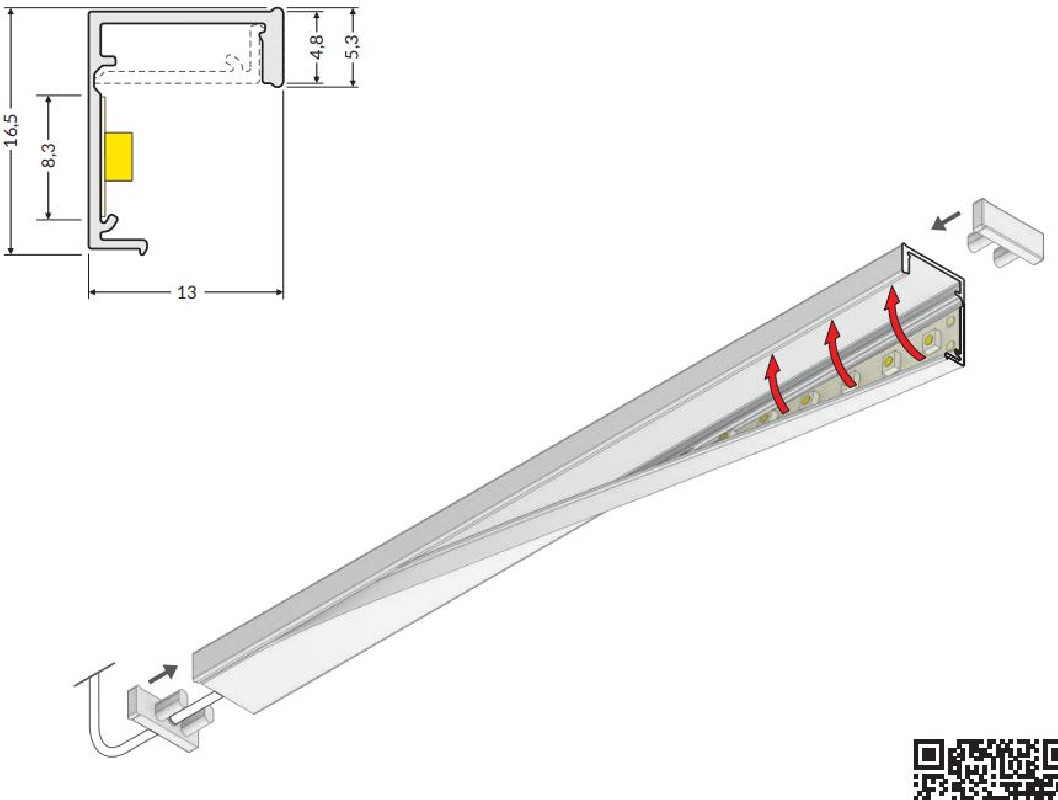

− easy installation of the LED strip

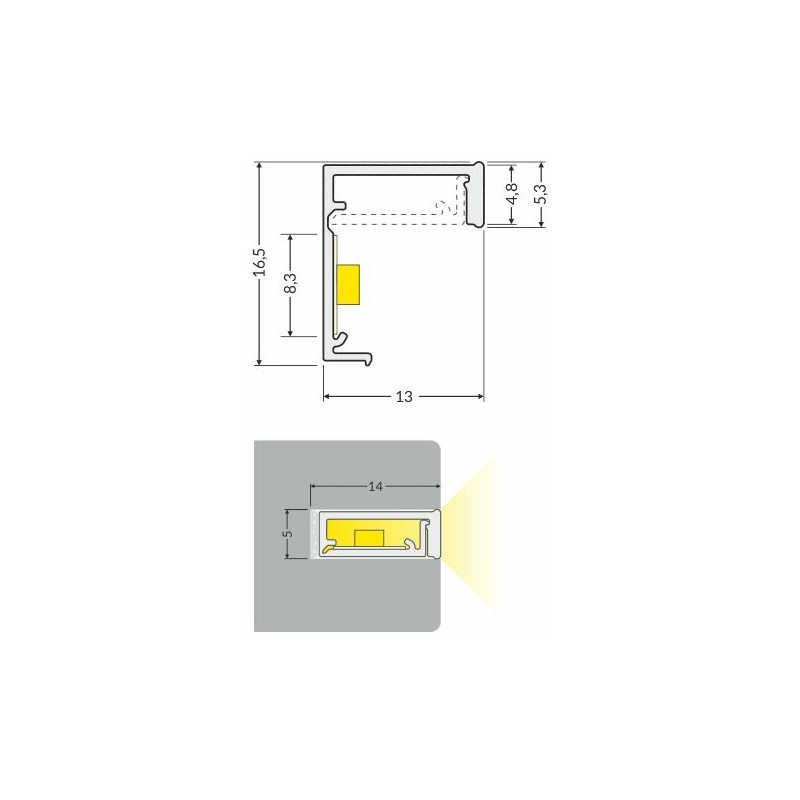

− installation in a small gap 5x14 mm

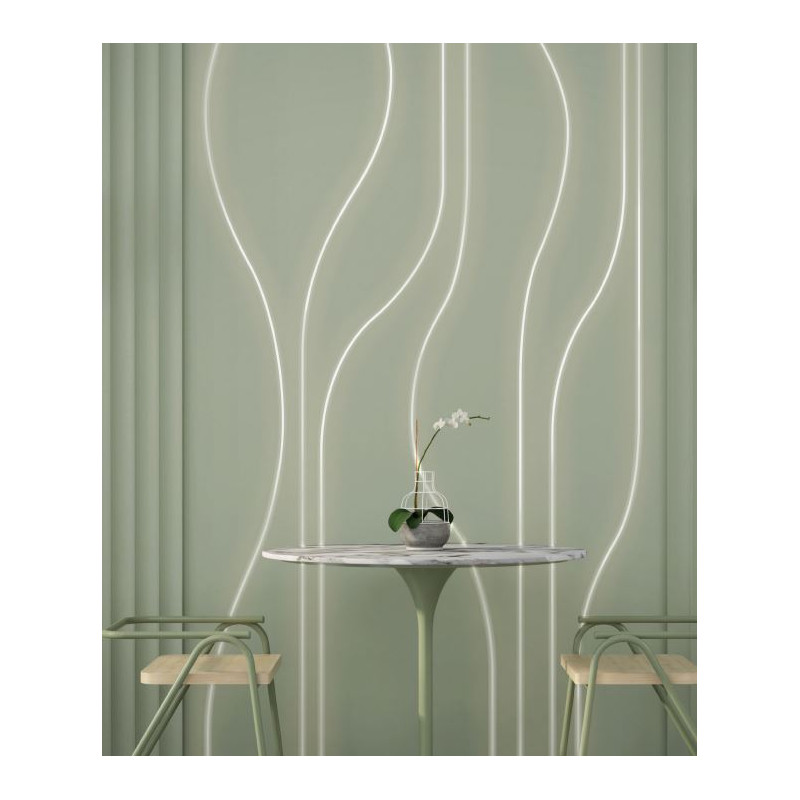

− possibility of installation in an arc (minimum bend cap radius 25 cm)
− continuous line of light when using COB or 120 LEDs/m LED strip
Designed and made in the EU.
You can order online 24/7, all ordered goods will be dispatched as soon as possible and we will notify you via e-mail. For custom made orders please contact us.
Orders over £500 (excl. VAT) Standard and Next Day service apply to UK mainland and Northern Ireland only. All orders will be sent by a trackable method.
You have the right to cancel your online website order within 14 calendar working days of ordering, or 14 calendar days of receipt of the goods (whichever is the longer).
This elastic diffuser/housing dedicated to LED strips 8mm, provide light diffusion, as well as stop small particles of matter interfering with the electrical components.
Constructions: plastics
Length: 2m
Type: opal
Installation: click
Material: PC
Working temp.: from -20°C to 70°C
Transparency: 70%
UV resistance: yes
Min. bending radius is 25cm
Width of LED strip: 8mm only (up to 10W/m)
Continuous light of light when using the COB LED strip or LED strips 120LED/m or more
LED strip is not included
Recommended Usage & Installation Notes
- Choose a high-density LED strip (e.g., ≥120 LEDs/m) with an opal cover to achieve a uniform, dot-free light line.
- Ensure the mounting recess accommodates the profile’s minimal height and width to allow the finish surface to remain flush.
- For curved installation, design with a minimum bend radius of 25 cm to avoid mechanical stress or light inconsistencies.

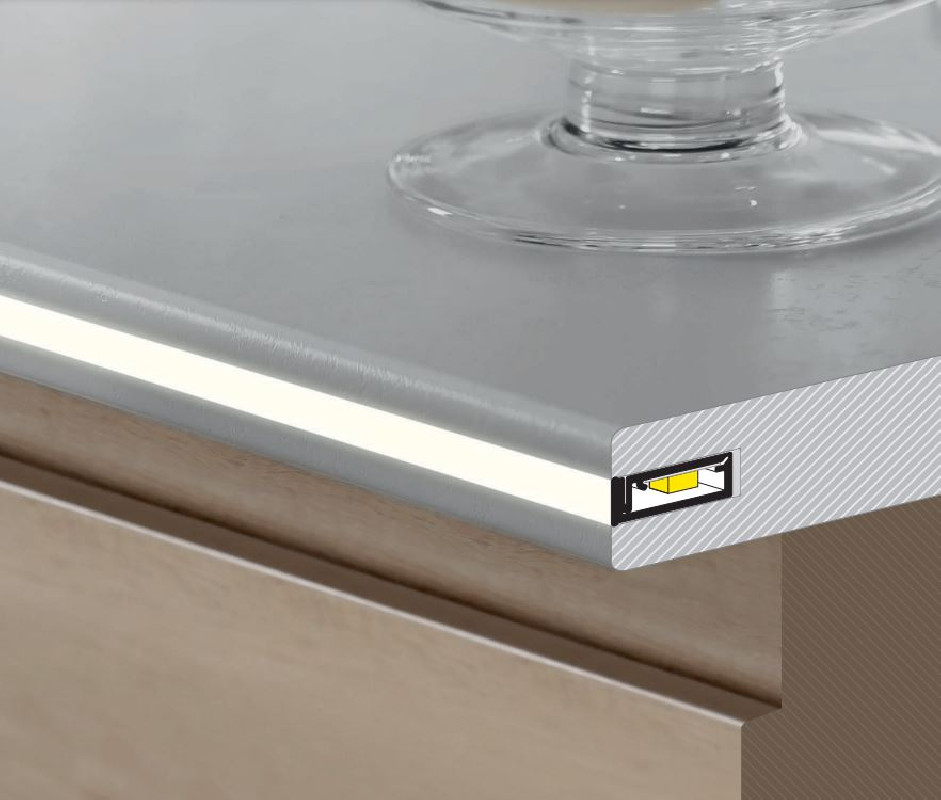

- Position the profile so the diffuser is exposed to view, with the light source hidden within for a clean aesthetic.

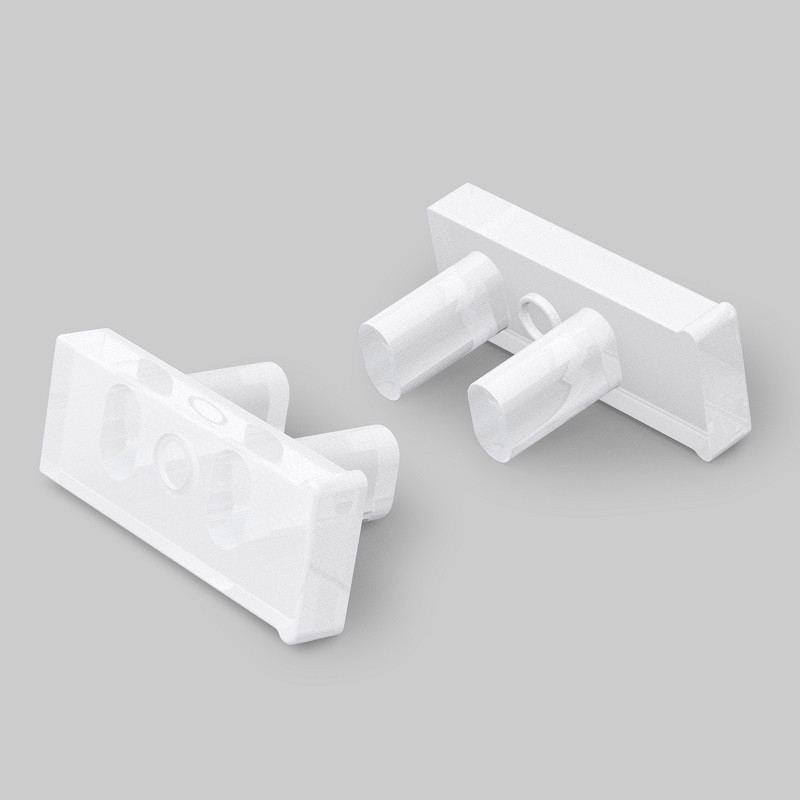

- Finish edges with compatible end caps to maintain a professional appearance and protect against dust ingress.
Designed and made in the EU.
ML-NP1-2
2 Item
Data sheet
- Length
- 2.0m / 2000mm
- Finish
- Plastics
- Accessories
- Diffusers / covers
