24VDC LED tape, warm white 3000K, 4.8W/m, 60 LED/m, 5m, IP54, SMD3528
£44.40
£35.52
24VDC LED tape, 4000K, 9.6W/m, 120LED/m, 5m, IP20, SMD3528
37.00 VAT excl.
£44.40 VAT incl.
24VDC LED tape, 4000K, 120 LED/m, 9.6 W/m, 8mm white PCB, IP20, length: 5m (48W, 600LEDs), with connection wires at both ends, SMD3528
You can order online 24/7, all ordered goods will be dispatched as soon as possible and we will notify you via e-mail. For custom made orders please contact us.
Orders over £500 (excl. VAT) Standard and Next Day service apply to UK mainland and Northern Ireland only. All orders will be sent by a trackable method.
You have the right to cancel your online website order within 14 calendar working days of ordering, or 14 calendar days of receipt of the goods (whichever is the longer).
24VDC LED tape, cool white 4000K, 9.6W/m, 120LED/m, 5m (48W, 600 LED), IP20, SMD3528
LED chip: SMD3528
Input voltage: 24VDC
Type of LED power supply/driver: constant voltage
Number of LEDs per meter: 120
Power: 9.6W/m
Colour temperature (CCT): 4000K
Brightness: approx. 900lm/m
Beam angle: 120 degree
CRI(Ra)≥80
Energy Efficiency Rating: A+

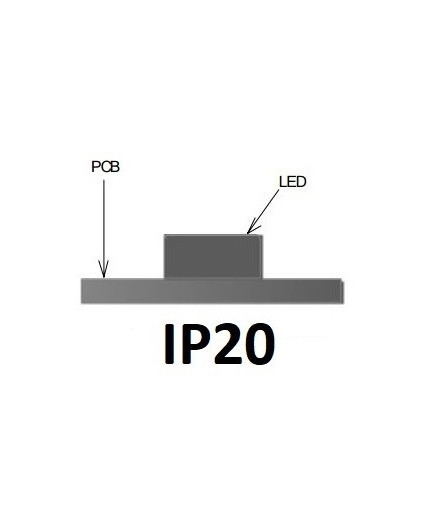

Degree of protection: IP20 (non-waterproof)

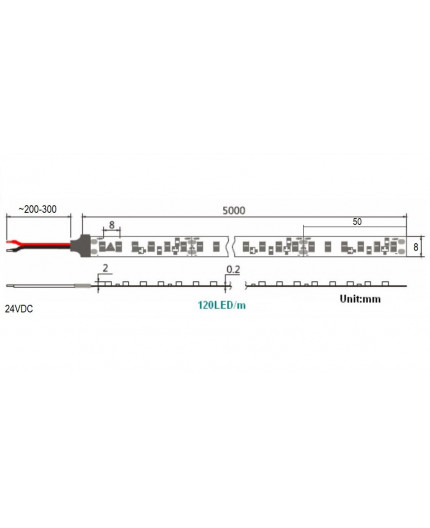

Width of PCB: 8mm
Installation: 8mm wide self-adhesive 3M tape backing

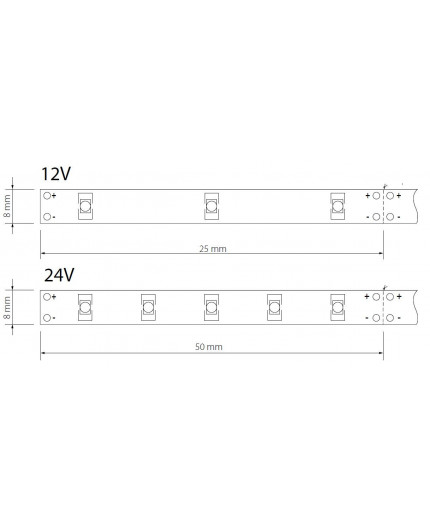

Cutting points: at 6 LED (50mm) intervals
Connections: with approx. 200mm connection wires at both ends
Operation temperature: -20℃-+45℃
Average life span: 50000h
Packing (total length): 5m (48W, 600LEDs)
Dimming: yes (0-10V/1-10V/DMX/DALI/Triac) (0-10V/1-10V/DMX/DALI/Triac) (0-10V/1-10V/DMX/DALI/Triac) (0-10V/1-10V/DMX/DALI/Triac) (if the LED tape is connected to the suitable dimmable LED power supply, additional dimmer switch required)
Note:

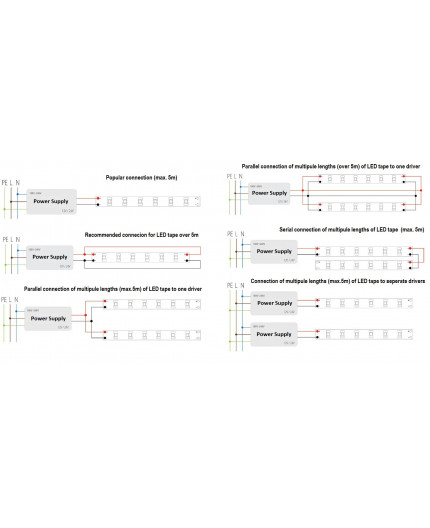

Adopt a suitable LED power supply to match the LED tapes.
The power of the LED power supply should be 20% bigger than the max power of LED tapes in order to ensure the long-time performance of the LED power supply.
ML-F3528A60-N-24
1 Item
Data sheet
- Light colour
- Natural white
- LED quantity
- 120LEDs/m
- Colour temperature (CCT)
- 4000K
- Ingress Protection (IP)
- IP20 (non-waterproof)
- PCB width
- 8mm
- Length
- 5.0m / 5000mm
- Watts per metre
- 9.6W/m
- Features
- Single Colour
- Input voltage
- 24VDC
- CRI
- ≥80
- Version
- Constant Voltage (CV)
- LED chip
- SMD3528
- Cutting
- 50mm
- Lumens per metre
- 500 - 999 lm/m
- Beam angle
- 120 degree
