24Vdc 60W RGB-3000K (RGBW) LED Flexible Back Light Module / Sheet SMD5050
£48.00
24V 120W 2700K-6500K 2-LED-Cut Dual-White Flexible Back Light Module/ Sheet SMD2835
68.00 VAT excl.
£81.60 VAT incl.
424VDC SMD2835 2-LED-Cut Tunable White (2700K-6500K) CRI≥95 Flexible Back Light Module / Panel, 120W
Perfect for a lighting box and different types of stones.
Spot-free lighting depends on the material being illuminated.
The minimum recommended distance between the LED sheet and the cover is 10 mm (suitable for thicker materials). For thinner or more translucent covers, you may need to increase the distance to achieve an even, spot-free light effect.

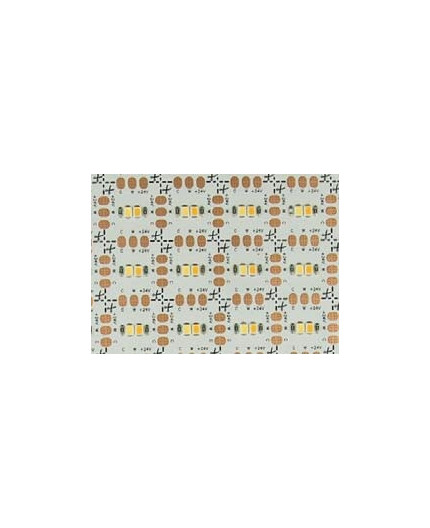

2-LED-cut (20mmx20mm)
You can order online 24/7, all ordered goods will be dispatched as soon as possible and we will notify you via e-mail. For custom made orders please contact us.
Orders over £500 (excl. VAT) Standard and Next Day service apply to UK mainland and Northern Ireland only. All orders will be sent by a trackable method.
You have the right to cancel your online website order within 14 calendar working days of ordering, or 14 calendar days of receipt of the goods (whichever is the longer).
SMD2835 2-LED-Cut (20mmx20mm) CRI≥95 Flexible Back Light Module CCT adjustable from 2700K to 6500K, for lighting box
Input voltage: 24VDC
Type of LED power supply/driver: constant voltage

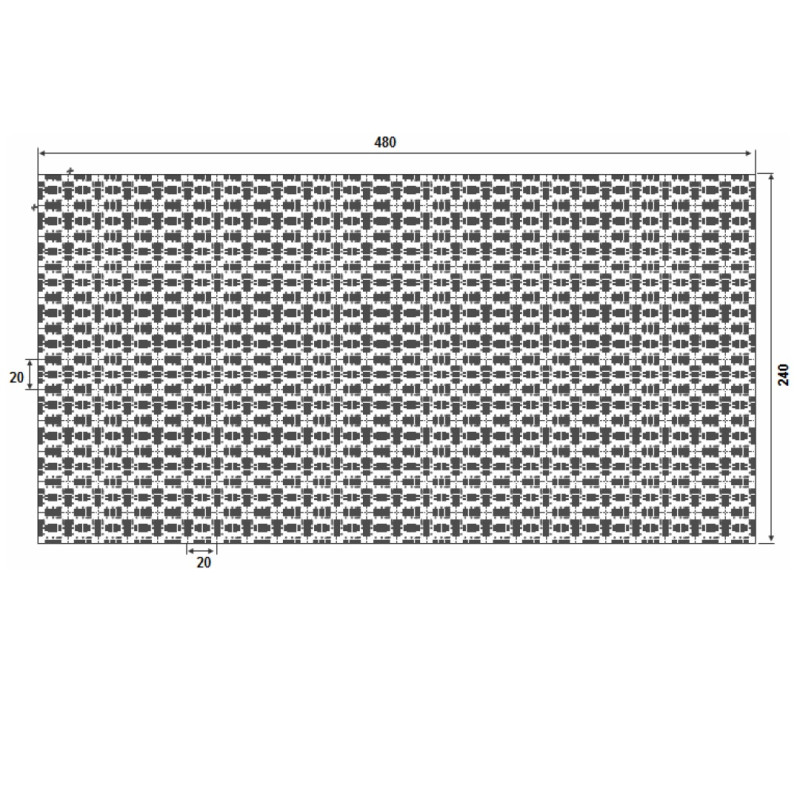

Size of module: 480mm x 240mm
Quantity of LEDs: 576pcs
Power: 120W
CCT: adjustable from 2700K to 6500K
Brightness: 10000-12000lm
CRI(Ra)≥95
Beam angle: 120 degrees
Degree of protection: IP20 (non-waterproof)
PCB: 480mm x 240mm white PCB
Operation temperature: -20℃-+45℃
Note:
Perfect for use in light boxes and with various types of stone.
Spot-free lighting performance depends on the material being illuminated.
The minimum recommended distance between the LED sheet and the cover is 10 mm (ideal for thicker materials).
For thinner or more translucent surfaces, increasing the distance will help achieve a smooth, even, spot-free light effect.
ML-M2835A576-TH-24-952P
4 Items
Data sheet
- Light colour
- Dual White
White - Colour temperature (CCT)
- 2700K-6500K
- Ingress Protection (IP)
- IP20 (non-waterproof)
- Features
- CCT Tuneable
- Wattage
- 120W
- Input voltage
- 24VDC
- CRI
- ≥95
- Version
- Constant Voltage (CV)
- LED chip
- SMD2835
- Lens
- No
