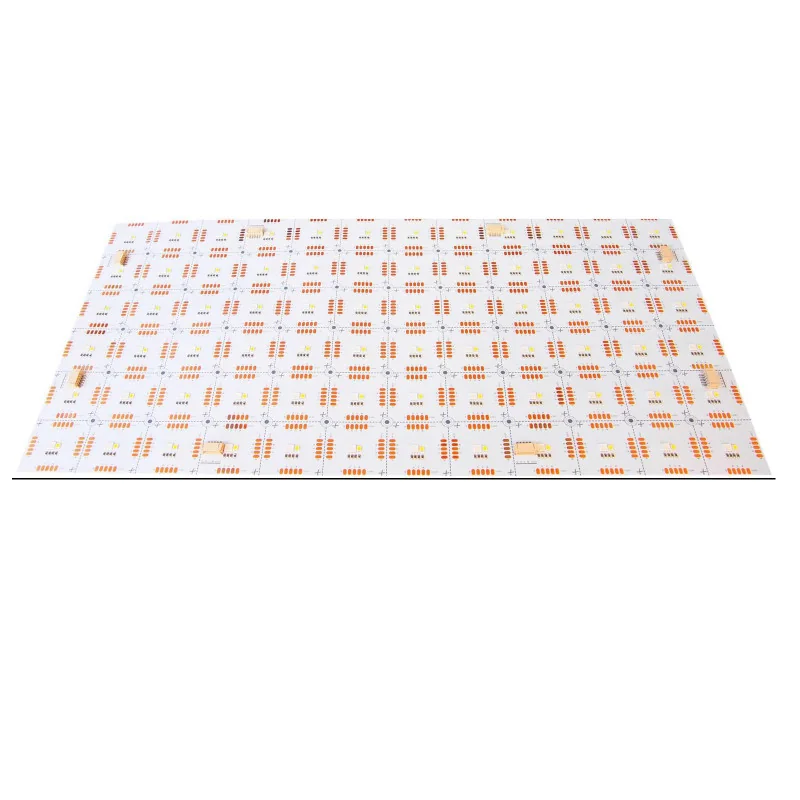

24Vdc 75W 2700K+RGB+6000K (RGBWW, RGB+CCT) LED Flexible Back Light Module / Sheet SMD5050

Name: 24Vdc 75W 2700K+RGB+6000K (RGBWW, RGB+CCT) LED Flexible Back Light Module / Sheet SMD5050
Brand: Marc LED Ltd
SKU: ML-M5050A216SA-WCP-24-1P
Price: 54 GBP
Availability: InStock

45.00 VAT excl.

£54.00 VAT incl.

24VDC SMD5050 2700K-RGB-6000K (RGBWW) LED Flexible Back Light Module / Panel, 75W, 480mm x 240mm.
Perfect for a lighting box and different types of stones.
Spot-free lighting depends on the material being illuminated.
The minimum recommended distance between the LED sheet and the cover is 10 mm (suitable for thicker materials). For thinner or more translucent covers, you may need to increase the distance to achieve an even, spot-free light effect.
1-LED-cut (40mmx40mm)

Volume discounts

Quantity	Unit price	You Save
5	£54.00	£2.70
10	£54.00	£10.80
20	£54.00	£32.40
50	£54.00	£108.00
100	£54.00	£270.00

In stock 12 Items

Last items in stock

You can order online 24/7, all ordered goods will be dispatched as soon as possible and we will notify you via e-mail. For custom made orders please contact us.

Orders over £500 (excl. VAT) Standard and Next Day service apply to UK mainland and Northern Ireland only. All orders will be sent by a trackable method.

You have the right to cancel your online website order within 14 calendar working days of ordering, or 14 calendar days of receipt of the goods (whichever is the longer).

Description
Product Details

1-LED-Cut (40mmx40mm) SMD5050 2700K-RGB-6000K (RGB+CCT) LED Flexible Back Light Module for lighting box

Input voltage: 24VDC
Type of LED power supply/driver: constant voltage

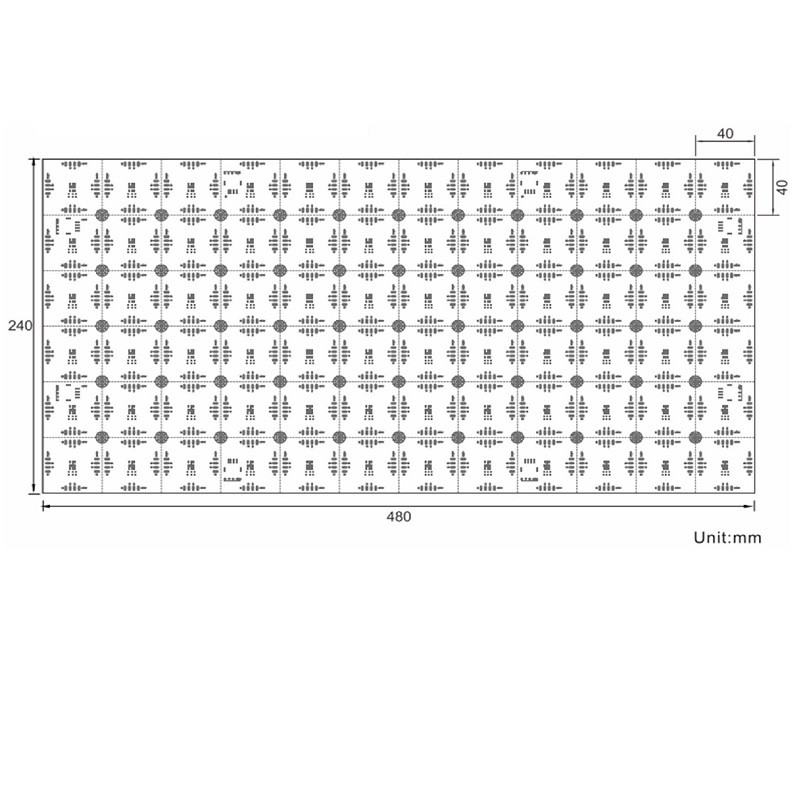

Size of the module: 480mm x 240mm
Quantity of LEDs: 216pcs
Power: 75W
RGB: 620-630Nm/520-525Nm/460-470Nm
CCT: 2700K-6500K
Brightness: 580lm(R)/250lm(B)/1300lm(G)/1350lm(2700K)/1500lm(6000K)
CRI(Ra)≥95
Beam angle: 120 degrees
Cutting: 40mmx40mm
Degree of protection: IP20 (non-waterproof)
PCB: 480mm x 240mm white PCB
Operation temperature: -20℃-+45℃

Note:
Perfect for use in light boxes and with various types of stone.
Spot-free lighting performance depends on the material being illuminated.
The minimum recommended distance between the LED sheet and the cover is 10 mm (ideal for thicker materials).
For thinner or more translucent surfaces, increasing the distance will help achieve a smooth, even, spot-free light effect.
