Sample of 24VDC LED tape, warm white 2700K, 4.8W/m, 60 LED/m, SMD3528
£1.14

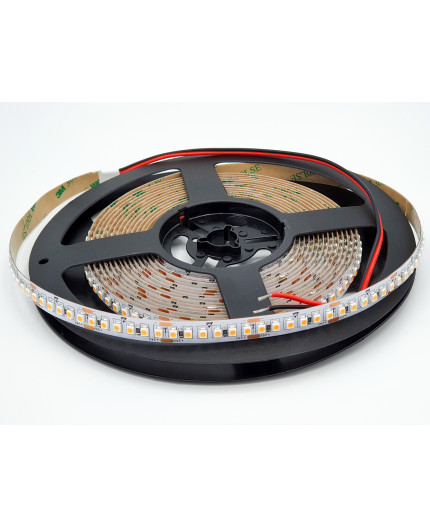

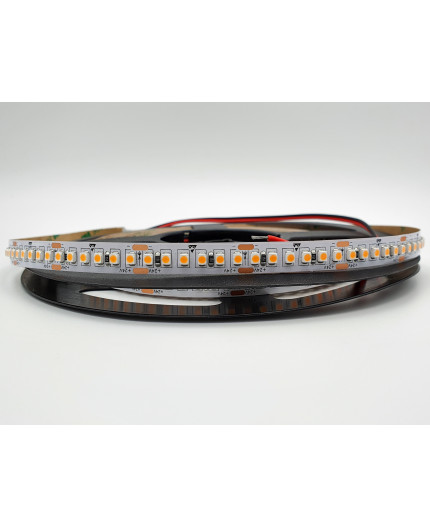

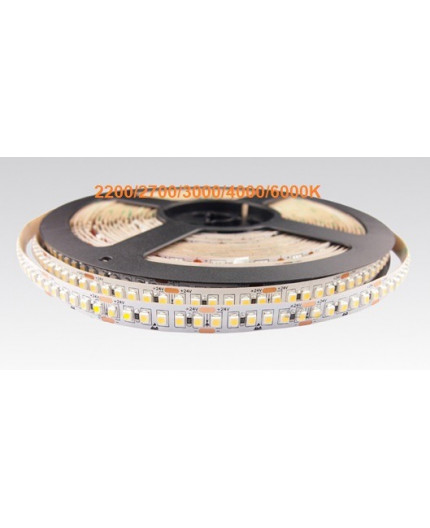

24VDC LED tape warm white 2200K 14.4W/m 180LED/m 5m (72W) IP20 SMD3528
50.00 VAT excl.
£60.00 VAT incl.
24VDC LED Strip, 2200K-2400K, 180 LEDs/m, 14.4W/m, length: 5m (72W, 900LEDs), white PCB (10mm), 1200 lm/m, IP20, SMD3528 with connection wires at both ends
You can order online 24/7, all ordered goods will be dispatched as soon as possible and we will notify you via e-mail. For custom made orders please contact us.
Orders over £500 (excl. VAT) Standard and Next Day service apply to UK mainland and Northern Ireland only. All orders will be sent by a trackable method.
You have the right to cancel your online website order within 14 calendar working days of ordering, or 14 calendar days of receipt of the goods (whichever is the longer).
24VDC LED tape, warm white 2200K, 14.4W/m, 180LED/m, 5m (72W, 900 LED), IP20, SMD3528
LED Strip, tape warm white SMD3528
Input voltage: 24VDC
Type of LED power supply/driver: constant voltage
Quantity/m: 180 LEDs per meter
Power: 14.4W/m
CCT: 2200-2400K (very warm white)
Brightness: approx. 1200lm/m
Beam angle: 120degree
Total length (roll): 5m (72W, 900LEDs)
Degree of protection: IP20 (non-waterproof)
PCB: 10mm wide white PCB
Inst.: 10mm wide self-adhesive 3M tape backing
Cutting points: at 6 LED (33.3mm) intervals
Connections: with approx. 200mm connection wires at both ends
Operation temperature: -20℃-+45℃
Warranty: 3 years
Dimming: yes (0-10V/1-10V/DMX/DALI/Triac) (0-10V/1-10V/DMX/DALI/Triac) (0-10V/1-10V/DMX/DALI/Triac) (0-10V/1-10V/DMX/DALI/Triac) if this LED strip is connected to suitable dimmable LED power supply (depending on method of dimming system)
ML-F3528A90-VW-24
18 Items
Data sheet
- Light colour
- Warm white
- LED quantity
- 180LEDs/m
- Colour temperature (CCT)
- 2200K
- Ingress Protection (IP)
- IP20 (non-waterproof)
- PCB width
- 10mm
- Length
- 5.0m / 5000mm
- Watts per metre
- 14.4W/m
- Features
- Single Colour
- Input voltage
- 24VDC
- CRI
- ≥80
- Version
- Constant Voltage (CV)
- LED chip
- SMD3528
- Cutting
- 33.33mm
- Lumens per metre
- 1000 - 1999 lm/m
- Beam angle
- 120 degree
