12VDC LED tape, blue, 9.6W/m 120LED/m, 5m (48W 600 LED) IP20, SMD3528
35.00 VAT excl.
£42.00 VAT incl.
12VDC LED tape, BLUE colour, 120 LED/m, 9.6 W/m, 8mm white PCB, IP20, length: 5m (48W, 600LEDs), with connection wires at both ends, SMD3528
You can order online 24/7, all ordered goods will be dispatched as soon as possible and we will notify you via e-mail. For custom made orders please contact us.
Orders over £500 (excl. VAT) Standard and Next Day service apply to UK mainland and Northern Ireland only. All orders will be sent by a trackable method.
You have the right to cancel your online website order within 14 calendar working days of ordering, or 14 calendar days of receipt of the goods (whichever is the longer).
12VDC LED tape, blue, 9.6W/m, 120LED/m, 5m (48W, 600 LED), IP20, SMD3528
LED chip: SMD3528
Input voltage: 12VDC
Type of LED power supply/driver: constant voltage
Number of LEDs per meter: 120
Power: 9.6W/m
Colour temperature BLUE
Brightness: approx. 288lm/m
Beam angle: 120 degree
CRI(Ra)≥80
Energy Efficiency Rating: A+

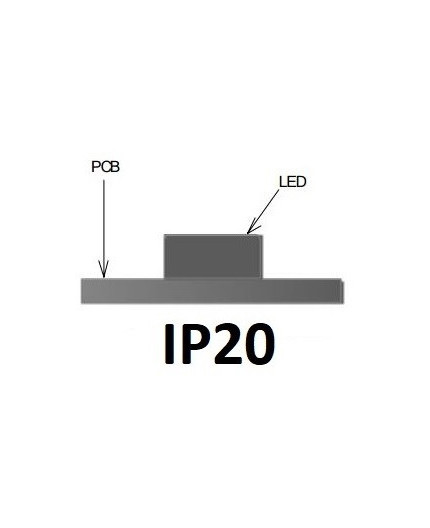

Degree of protection: IP20 (non-waterproof)
Width of PCB: 8mm
Installation: 8mm wide self-adhesive 3M tape backing

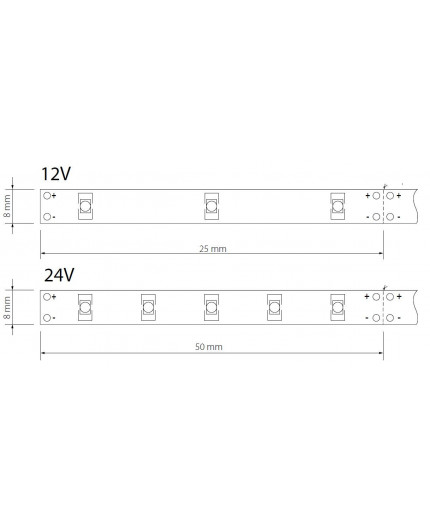

Cutting points: at 3 LED (25mm) intervals
Connections: with approx. 200mm connection wires at both ends
Operation temperature: -20℃-+45℃
Average life span: 50000h
Packing (total length): 5m (48W, 600LEDs)
Warranty: 3 years
Dimming: yes (0-10V/1-10V/DMX/DALI/Triac)
Note:

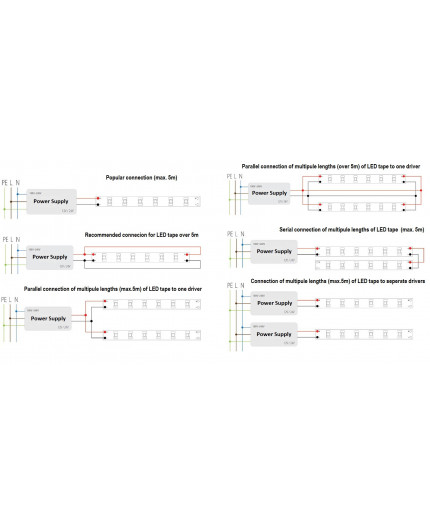

Adopt a suitable LED power supply to match the LED tapes.
The power of the LED power supply should be 20% bigger than the max power of LED tapes in order to ensure the long-time performance of the LED power supply.
ML-F3528A60-B-12
4 Items
Data sheet
- Light colour
- Blue
- LED quantity
- 120LEDs/m
- Ingress Protection (IP)
- IP20 (non-waterproof)
- PCB width
- 8mm
- Length
- 5.0m / 5000mm
- Watts per metre
- 9.6W/m
- Features
- Single Colour
- Input voltage
- 12VDC
- CRI
- ≥80
- Version
- Constant Voltage (CV)
- LED chip
- SMD3528
- Cutting
- 25mm
- Lumens per metre
- 0 - 499 lm/m
- Beam angle
- 120 degree
