15W 340mA Constant Current LED Driver, LED15-340CC-S, Govena
9.70 VAT excl.
£11.64 VAT incl.
15W, 340mA LED Driver for LED lamps, Govena
Output: 340mA, 44VDC
Input: 185-265VAC/260-375VDC,
You can order online 24/7, all ordered goods will be dispatched as soon as possible and we will notify you via e-mail. For custom made orders please contact us.
Orders over £500 (excl. VAT) Standard and Next Day service apply to UK mainland and Northern Ireland only. All orders will be sent by a trackable method.
You have the right to cancel your online website order within 14 calendar working days of ordering, or 14 calendar days of receipt of the goods (whichever is the longer).
15W 340mA Constant Current LED Driver, Govena
Product code: Z-LED-15W-340CC-SLIM
Rated power: 15W
Output voltage: 44VDC
Constant current range: 10-44dc (rated); max. 7.5-47Vdc
Rated current: 340mA
Voltage tolerance: ±3%
Line regulation: ±3%
Input voltage: 185-265 VAC / 260-375 VDC
Frequency range: 47-53Hz
Turn-on delay: ≤ 600ms/ 230VAC at 100% load
Output stabilization: Constant current
Power factor: at 100% load and 230Vac - 0.95; at 60%-100% load and 230Vac - ≥0.90
Efficiency: 86%
Inrush current: <18A
No load power consumption (standby): 0.26W

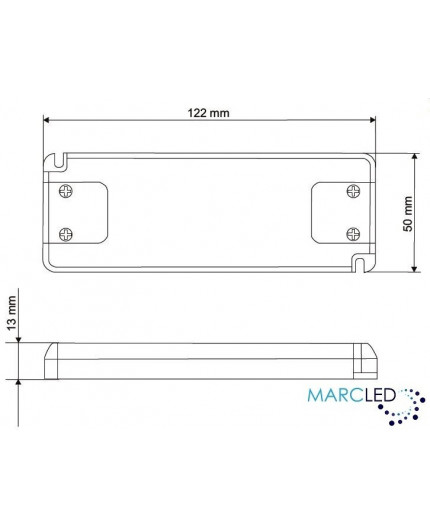

Dimensions: L 122 mm x W 50 mm x H 13 mm
Weight: 55 g
Dimmable: No
Protection degree: IP20
Over Current: Constant current limiting, recovers automatically after fault condition is removed
Short Circuit: Hiccup mode, recovers automatically after fault condition is removed
Over Voltage: 60V; protection type: Constant voltage limiting
Over temperature: 85 ± 10°C , protection type: Decrease in output voltage and output power
Working temperature ta: -20*C - +45*C
Working humidity: 10-95%RH
Storage temperature/humidity: -20*C - +75*C/10-95%RH
Case temperature tc: max. 80*C
Meets standards: EN 61347-1, EN 61347-2-13, EN 55015, EN 61547, EN 61000-3-2, EN 61000-3-3
LED15-340CC-S
18 Items
Data sheet
- Type
- Constant Current
- Ingress Protection (IP)
- IP20 (non-waterproof)
- Output
- 340mA
- Wattage
- 15W
- Dimming Control
- Non-dimmable
- Design
- Plastic case
