16W 400mA Constant Current Single Output Switching LED Power Supply active PFC function
15.00 VAT excl.
£18.00 VAT incl.
16W 400mA LED Driver Single Output, model DPCR-16-400
- Built-in active PFC function
- Protections: Short circuit / Over voltage / Over temperature
3 years warranty
You can order online 24/7, all ordered goods will be dispatched as soon as possible and we will notify you via e-mail. For custom made orders please contact us.
Orders over £500 (excl. VAT) Standard and Next Day service apply to UK mainland and Northern Ireland only. All orders will be sent by a trackable method.
You have the right to cancel your online website order within 14 calendar working days of ordering, or 14 calendar days of receipt of the goods (whichever is the longer).
16W 400mA Single Output Switching LED Power Supply, Built-in active PFC function, 3 years warranty
Model: DPCR-16-400
- Suitable for LED lighting
- Cooling by free air convection
- Universal AC input
- Constant current design: 400mA
- Built-in active PFC function
- Protections: Short circuit / Over voltage / Over temperature
- 100% full load burn-in test
- Isolation class II
- UL1310 Class 2 power unit
- Excellent quality / price ratio
Electrical Specification
Input Rated Voltage : 100 - 277Vac
Input Frequency : 50/60 Hz
Efficiency : 80%
Power Factor : 0.9
Output Voltage : 21 - 40 VDC
Output Current : 400mADC
Output Power : 16W max.
Protection : SCP, OVP, OTP
- Cooling by free air convection
- Universal AC input
- Constant current design: 400mA
- Built-in active PFC function
- Protections: Short circuit / Over voltage / Over temperature
- 100% full load burn-in test
- Isolation class II
- UL1310 Class 2 power unit
- Excellent quality / price ratio
Electrical Specification
Input Rated Voltage : 100 - 277Vac
Input Frequency : 50/60 Hz
Efficiency : 80%
Power Factor : 0.9
Output Voltage : 21 - 40 VDC
Output Current : 400mADC
Output Power : 16W max.
Protection : SCP, OVP, OTP
Environmental Characteristics
Working Temperature (ta) : -20 ~ +55 oC
IP Rating : IP54, For Dry and/or Damp location
Safety
Product Design : Class II (Building in type)
Regular Standard : UL 8750 with Class 2 output that base on UL 1310, EN 61347-1, EN 61347-2-13
Approval Safety : UL, cUL (CULUS), CE
EMC
Emission : Compliance to EN 55015 / FCC Part 15 Class B；EN 61000-3-2 Class C；EN 61000-3-3
Immunity : Compliance to EN 61547, IEC 61000-4-2,3,4,5,6,8,11
Mechanical

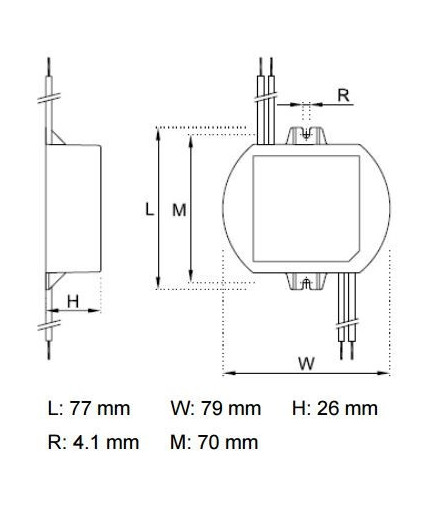

Dimension (L x W x H): 79 x 77 x 26 (mm)

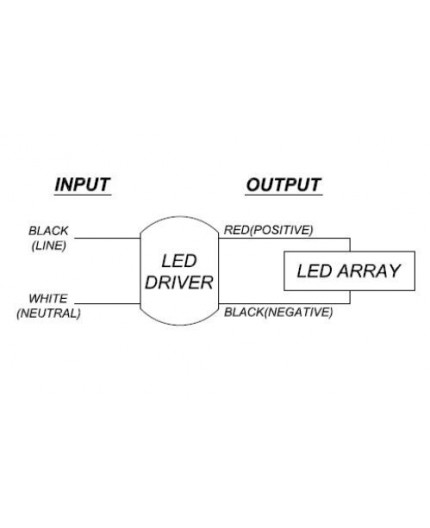

Input wires: L: Black, N: White; AWG18, length: 300mm
Output wires: Positive: Red, Negative: Black; AWG18, length: 110mm
Approval Safety : UL, cUL (CULUS), CE
EMC
Emission : Compliance to EN 55015 / FCC Part 15 Class B；EN 61000-3-2 Class C；EN 61000-3-3
Immunity : Compliance to EN 61547, IEC 61000-4-2,3,4,5,6,8,11
Mechanical
Dimension (L x W x H): 79 x 77 x 26 (mm)
Input wires: L: Black, N: White; AWG18, length: 300mm
Output wires: Positive: Red, Negative: Black; AWG18, length: 110mm
ML16DPCR400
95 Items
Data sheet
- Type
- Constant Current
- Ingress Protection (IP)
- IP20 (non-waterproof)
IP54 (splashproof) - Output
- 400mA
- Wattage
- 16W
- Dimming Control
- Non-dimmable
- Design
- Plastic case
