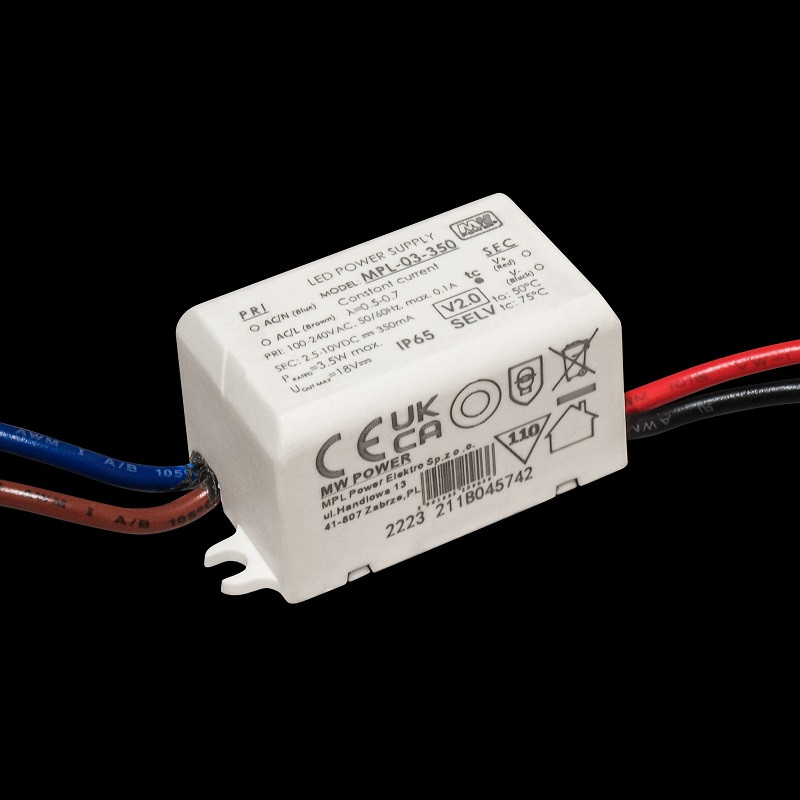

3W 350mA Constant Current LED Driver, LMPL-03-350LC

Name: 3W 350mA Constant Current LED Driver, LMPL-03-350LC
SKU: MPL-03-350LC
Price: 6.72 GBP
Availability: InStock

5.60 VAT excl.

£6.72 VAT incl.

3W, 350mA constant current LED Driver
Output: 350mA, 6-12VDC
Input: 90-264VAC
Perfect for furniture and other LED lighting applications, IP65

Volume discounts

Quantity	Unit price	You Save
5	£6.72	£0.34
10	£6.72	£1.34
20	£6.72	£4.03
50	£6.72	£13.44
100	£6.72	£33.60

In stock 10 Items

Last items in stock

You can order online 24/7, all ordered goods will be dispatched as soon as possible and we will notify you via e-mail. For custom made orders please contact us.

Orders over £500 (excl. VAT) Standard and Next Day service apply to UK mainland and Northern Ireland only. All orders will be sent by a trackable method.

You have the right to cancel your online website order within 14 calendar working days of ordering, or 14 calendar days of receipt of the goods (whichever is the longer).

Description
Product Details

3W 700mA Constant Current LED Driver

Product code: MPL-03-350LC
Rated power: 3W
Output voltage: 6-12VDC
Rated current: 350mA
Voltage tolerance: ±5%
Line regulation: ±5%
Input voltage: 90-265 VAC
Frequency range: 47-63Hz
Input current: 0.08A/230Vac
Output stabilization: Constant current
Efficiency: 70%
Inrush current: <10A
No load power consumption (standby): 0.27W

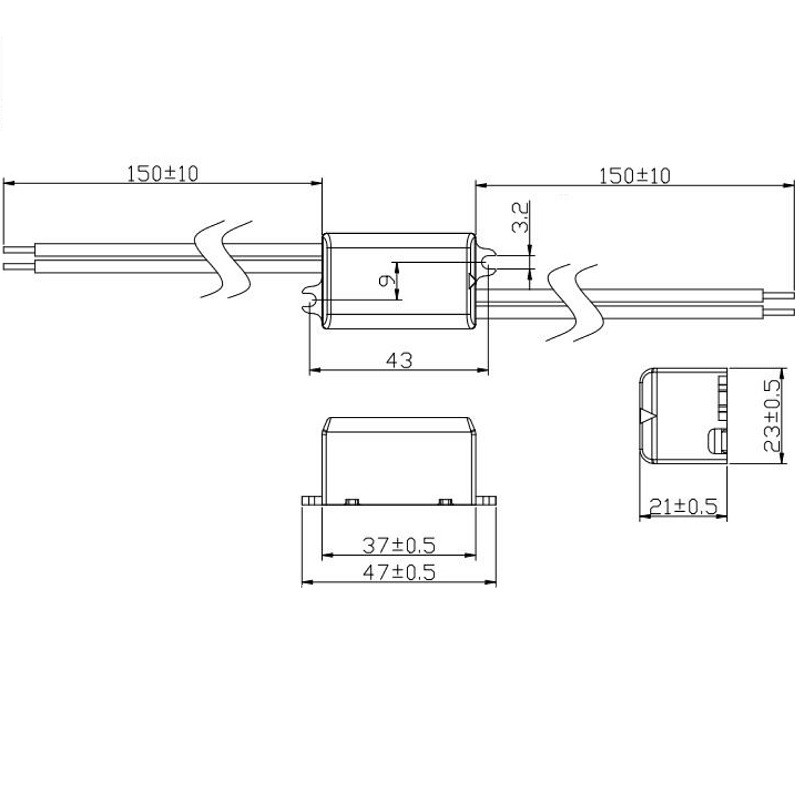

Dimensions: L 53mm x W 37mm x H 23 mm
Weight: 40 g
Dimmable: No
Protection degree: IP65
Short Circuit / overload
Working temperature ta: -10*C - +55*C
Working humidity: 20-90%RH
Storage temperature/humidity: -10*C - +60*C/10-90%RH
