DIM18 350mA, Constant Current Dimmable LED Driver, Vadsbo
£19.00
28W 350mA Single Output Switching LED Power Supply active PFC function
18.80 VAT excl.
£22.56 VAT incl.
28W 350mA Constant current LED Power Supply, Single Output, Suitable for LED lighting
- Universal AC input
- Fully encapsulated with IP67 level
3 years warranty
You can order online 24/7, all ordered goods will be dispatched as soon as possible and we will notify you via e-mail. For custom made orders please contact us.
Orders over £500 (excl. VAT) Standard and Next Day service apply to UK mainland and Northern Ireland only. All orders will be sent by a trackable method.
You have the right to cancel your online website order within 14 calendar working days of ordering, or 14 calendar days of receipt of the goods (whichever is the longer).
28W 350mA Single Output Switching LED Power Supply, Built-in active PFC function, 3 years warranty
Model: GPCP-35-350
- Suitable for LED lighting
- Cooling by free air convection
- Universal AC input
- Constant current design: 350mA
- Built-in active PFC function
- Protections: Short circuit / Over temperature
- 100% full load burn-in test
- Isolation class II
- Pass LPS
- Fully encapsulated with IP67 level
- Excellent quality / price ratio
- Cooling by free air convection
- Universal AC input
- Constant current design: 350mA
- Built-in active PFC function
- Protections: Short circuit / Over temperature
- 100% full load burn-in test
- Isolation class II
- Pass LPS
- Fully encapsulated with IP67 level
- Excellent quality / price ratio
Output:
LED driver mode: constant current
Output Voltage: 80Vdc
No of outputs: 1
Output Voltage: 80Vdc
No of outputs: 1
Rated current: 350mA
Voltage range: 40 ÷ 80V
Rated power: 28W
Line regulation: ± 1%
Current accuracy: ± 5%
Voltage tolerance: ± 3%
Ripple & noise (max.): 4mVP-P
Setup, rise time: 2000ms, 250ms/230VAC; 3000ms, 250ms / 115VAC at full load
Hold up time (typ.): 30ms / 115VAC, 60ms / 230VAC at full load
Rated power: 28W
Line regulation: ± 1%
Current accuracy: ± 5%
Voltage tolerance: ± 3%
Ripple & noise (max.): 4mVP-P
Setup, rise time: 2000ms, 250ms/230VAC; 3000ms, 250ms / 115VAC at full load
Hold up time (typ.): 30ms / 115VAC, 60ms / 230VAC at full load
Input:
Input Voltage: 90-264Vac
Frequency range: 47 ÷ 63Hz
Efficiency: 85%
AC current (typ.): 0.6A/115VAC, 0.3A / 230VAC
Power factor: PF > 0.9 / 230VAC; PF > 0.95 > 115VAC
Input Voltage: 90-264Vac
Frequency range: 47 ÷ 63Hz
Efficiency: 85%
AC current (typ.): 0.6A/115VAC, 0.3A / 230VAC
Power factor: PF > 0.9 / 230VAC; PF > 0.95 > 115VAC
Inrush current (typ.): 65A / 230VAC
Leakage current(max.): 0.25mA / 240VAC
Leakage current(max.): 0.25mA / 240VAC
Protections:
Short circuit:
Short circuit:
- type: hiccup mode, auto-recovery
Environment:
Working temperature: -30°C ÷ 70°C (Refer to Derating Curve)
Working humidity: 20 ÷ 90% RH non-condensing
Storage temperature and humidity: -40°C ÷ 80°C, 10 ÷ 95% RH non-condensing
Temperature coefficient: ± 0.03% / °C (0°C ÷ 50°C)
Vibration: 10 ÷ 500Hz, 2G, 10min / cycle, period for 60min. each along X, Y, Z axes
Working humidity: 20 ÷ 90% RH non-condensing
Storage temperature and humidity: -40°C ÷ 80°C, 10 ÷ 95% RH non-condensing
Temperature coefficient: ± 0.03% / °C (0°C ÷ 50°C)
Vibration: 10 ÷ 500Hz, 2G, 10min / cycle, period for 60min. each along X, Y, Z axes
Safety and EMC regulations:
Safety standards: compliance to EN61347-1, EN61347-2-13, IP67
Withstand voltage: I-P/O-P: 3kVAC
Isolation resistance: I-P/O-P; O-P/FG; I-P/FG: 100MΩ/500VDC/25°C/70%
EMC emission: compliance to EN55015
EMC immunity: compliance to EN61547; EN55024; EN61000-4-2, -3, -4, -5, -6, -8, -11
Harmonic current: compliance to EN61000-3-3; EN61000-3-2
Safety standards: compliance to EN61347-1, EN61347-2-13, IP67
Withstand voltage: I-P/O-P: 3kVAC
Isolation resistance: I-P/O-P; O-P/FG; I-P/FG: 100MΩ/500VDC/25°C/70%
EMC emission: compliance to EN55015
EMC immunity: compliance to EN61547; EN55024; EN61000-4-2, -3, -4, -5, -6, -8, -11
Harmonic current: compliance to EN61000-3-3; EN61000-3-2
Other:

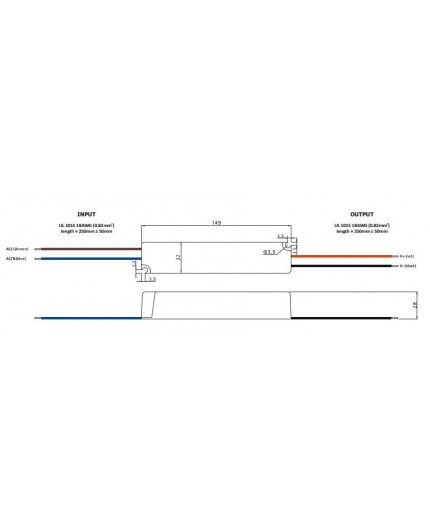

Dimensions: 149 x 32 x 28mm
Weight: 0.25kg
Termination style: flying leads, approx. 250mm ± 50mm (UL 1015 18AWG (0.82mm ))
Dimensions: 149 x 32 x 28mm
Weight: 0.25kg
Termination style: flying leads, approx. 250mm ± 50mm (UL 1015 18AWG (0.82mm ))
GPCP-35-350
8 Items
Data sheet
- Type
- Constant Current
- Ingress Protection (IP)
- IP67
- Output
- 350mA
- Wattage
- 28W
- Dimming Control
- Non-dimmable
- Design
- Plastic case
- Power factor correction (PFC)
- Built-in active PFC function
