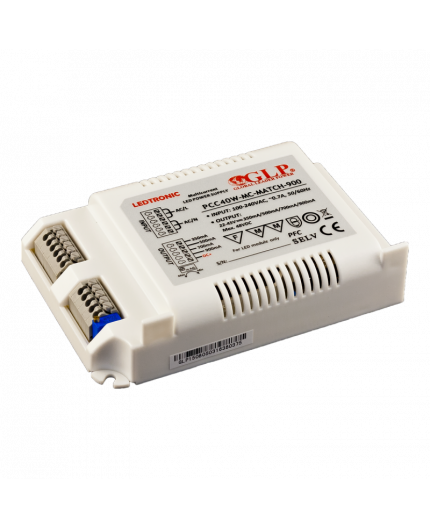

40W 900mA LED power supply, PFC function, 4 kinds of output current selectable
Model: PCC40W-MC-MATCH-900
- Suitable for LED lighting
- Cooling by free air convection
- Universal AC input
- Constant current design
- 4 kinds of output current selectable (350mA/500mA/700mA/900mA)
- Output current adjustment (±10%) by built-in potentiometer
- Built-in active PFC function
- Protections: Short-circuit/Over current/Over voltage
- Isolation class II
- Suitable for LED lighting
- Cooling by free air convection
- Universal AC input
- Constant current design
- 4 kinds of output current selectable (350mA/500mA/700mA/900mA)
- Output current adjustment (±10%) by built-in potentiometer
- Built-in active PFC function
- Protections: Short-circuit/Over current/Over voltage
- Isolation class II
Output:
LED driver mode: constant current
Output Voltage: 48V
No of outputs: 4 selectable
Output Voltage: 48V
No of outputs: 4 selectable
Rated current: 350mA/500mA/700mA/900mA
Voltage range: 22 ÷ 45V
Current adjustment: 315 ÷ 385mA/450 ÷ 550mA/630 ÷ 770mA/810 ÷ 990mA
Rated power: 40.5W
Line regulation: ± 1%
Current accuracy: ± 5%
Voltage tolerance: ± 5%
Load regulation: ± 3%
Ripple & noise (max.): 1VP-P/1VP-P/1.5VP-P/2VP-P
Setup, rise time: 800ms, 80ms, 20ms / 230VAC; 1300ms, 80ms, 20ms / 115VAC at full load
Current adjustment: 315 ÷ 385mA/450 ÷ 550mA/630 ÷ 770mA/810 ÷ 990mA
Rated power: 40.5W
Line regulation: ± 1%
Current accuracy: ± 5%
Voltage tolerance: ± 5%
Load regulation: ± 3%
Ripple & noise (max.): 1VP-P/1VP-P/1.5VP-P/2VP-P
Setup, rise time: 800ms, 80ms, 20ms / 230VAC; 1300ms, 80ms, 20ms / 115VAC at full load
Input:
Input Voltage: 90 ÷ 264VAC; 127 ÷ 370VDC
Frequency range: 47 ÷ 63Hz
Efficiency: 80%/82%/85%/86%
AC current (typ.): 0.7A/115VAC, 0.3A / 230VAC
Power factor: PF > 0.9 / 230VAC; PF > 0.95 / 115VAC at full load
Input Voltage: 90 ÷ 264VAC; 127 ÷ 370VDC
Frequency range: 47 ÷ 63Hz
Efficiency: 80%/82%/85%/86%
AC current (typ.): 0.7A/115VAC, 0.3A / 230VAC
Power factor: PF > 0.9 / 230VAC; PF > 0.95 / 115VAC at full load
Protections:
Overcurrent:
- range: 110 ÷ 130%
- type: constant current limiting to 50% rated voltage next hiccup mode.
Recovers automatically after fault condition is removed.
- range: 110 ÷ 130%
- type: constant current limiting to 50% rated voltage next hiccup mode.
Recovers automatically after fault condition is removed.
Short circuit:
- type: hiccup mode, auto-recovery
Over voltage:
Over voltage:
- max.50V
- type: hiccup mode. Recovers automatically after fault condition is removed.
Environment:
Working temperature: -20°C ÷ 60°C
Working humidity: 20 ÷ 90% RH non-condensing
Storage temperature and humidity: -40°C ÷ 70°C, 10 ÷ 95% RH non-condensing
Temperature coefficient: ± 0.03% / °C (0°C ÷ 50°C)
Working humidity: 20 ÷ 90% RH non-condensing
Storage temperature and humidity: -40°C ÷ 70°C, 10 ÷ 95% RH non-condensing
Temperature coefficient: ± 0.03% / °C (0°C ÷ 50°C)
Safety and EMC regulations:
Safety standards: Compliance to EN61347-1, EN61347-2-13
Withstand voltage: I-P/O-P: 3.0kVAC
Isolation resistance: I-P/O-P: 100MΩ/500VDC/25°C/70%
EMC emission: compliance to EN550155
EMC immunity: compliance to EN61547; IEC 61000-4-2, -3, -4, -5, -6, -8, -11
Harmonic current: compliance to EN61000-3-3; EN61000-3-2 class C
Safety standards: Compliance to EN61347-1, EN61347-2-13
Withstand voltage: I-P/O-P: 3.0kVAC
Isolation resistance: I-P/O-P: 100MΩ/500VDC/25°C/70%
EMC emission: compliance to EN550155
EMC immunity: compliance to EN61547; IEC 61000-4-2, -3, -4, -5, -6, -8, -11
Harmonic current: compliance to EN61000-3-3; EN61000-3-2 class C

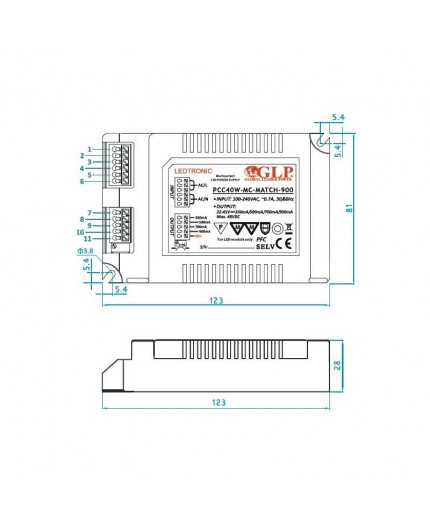

Other:
Dimensions: 121 x 81 x 28mm
Weight: 0.23kg
Dimensions: 121 x 81 x 28mm
Weight: 0.23kg
PCC40W-MC-MATCH-900
100 Items
Data sheet
- Type
- Constant Current
- Ingress Protection (IP)
- IP20 (non-waterproof)
- Output
- 350mA
500mA
700mA
900mA
multi-current selectable output - Wattage
- 40W
- Dimming Control
- Non-dimmable
- Design
- Plastic case
- Power factor correction (PFC)
- Built-in active PFC function
