8.4W 700mA Single Output Switching LED Power Supply
7.20 VAT excl.
£8.64 VAT incl.
8,4W 700mA Constant current LED Power Supply, Single Output, Suitable for LED lighting
- Universal AC input
- Fully encapsulated with IP67 level
3 years warranty
You can order online 24/7, all ordered goods will be dispatched as soon as possible and we will notify you via e-mail. For custom made orders please contact us.
Orders over £500 (excl. VAT) Standard and Next Day service apply to UK mainland and Northern Ireland only. All orders will be sent by a trackable method.
You have the right to cancel your online website order within 14 calendar working days of ordering, or 14 calendar days of receipt of the goods (whichever is the longer).

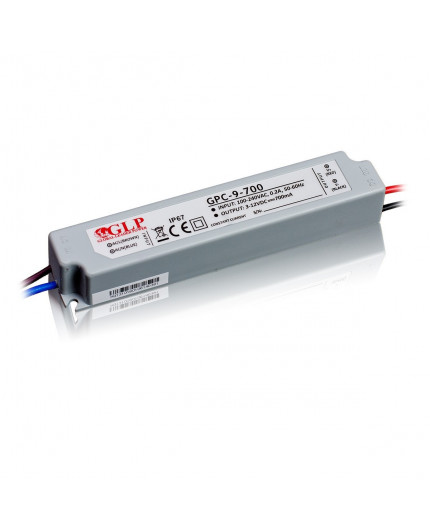

Single Output Switching LED Power Supply, GPC-9-700, 3 years warranty
Model: GPC-9-700
- Suitable for LED lighting
- Cooling by free air convection
- Universal AC input
- Constant current design: 700mA
- Protections: Short circuit / Over temperature
- 100% full load burn-in test
- Isolation class II
- UL1310 Class 2 power unit, pass LPS
- Fully encapsulated with IP67 level
- Excellent quality / price ratio
- Suitable for LED lighting
- Cooling by free air convection
- Universal AC input
- Constant current design: 700mA
- Protections: Short circuit / Over temperature
- 100% full load burn-in test
- Isolation class II
- UL1310 Class 2 power unit, pass LPS
- Fully encapsulated with IP67 level
- Excellent quality / price ratio
Output:
LED driver mode: constant current
Output Voltage: 12Vdc
No of outputs: 1
Output Voltage: 12Vdc
No of outputs: 1
Rated current: 700mA
Voltage range: 2 ÷ 12V
Rated power: 8.4W
Line regulation: ± 1%
Current accuracy: ± 2%
Voltage tolerance: ± 3%
Ripple & noise (max.): 150mVP-P
Setup, rise time: 500ms, 250ms at full load
Hold up time (typ.): 24ms / 115VAC, 50ms / 230VAC at full load
Rated power: 8.4W
Line regulation: ± 1%
Current accuracy: ± 2%
Voltage tolerance: ± 3%
Ripple & noise (max.): 150mVP-P
Setup, rise time: 500ms, 250ms at full load
Hold up time (typ.): 24ms / 115VAC, 50ms / 230VAC at full load
Input:
Input Voltage: 90-264Vac
Frequency range: 47 ÷ 63Hz
Efficiency: 72%
AC current (typ.): 0.2A/115VAC, 0.1A / 230VAC
Input Voltage: 90-264Vac
Frequency range: 47 ÷ 63Hz
Efficiency: 72%
AC current (typ.): 0.2A/115VAC, 0.1A / 230VAC
Inrush current (typ.): 30A / 230VAC
Leakage current(max.): 0.25mA / 240VAC
Leakage current(max.): 0.25mA / 240VAC
Protections:
Short circuit:
Short circuit:
- type: hiccup mode, auto-recovery
Over temperature:
Over temperature:
- range: 140°C ± 10°C detect on main control IC
- type: shut off, recovers automatically after temperature goes down
Environment:
Working temperature: -30°C ÷ 70°C (Refer to Derating Curve)
Working humidity: 20 ÷ 90% RH non-condensing
Storage temperature and humidity: -40°C ÷ 80°C, 10 ÷ 95% RH non-condensing
Temperature coefficient: ± 0.03% / °C (0°C ÷ 50°C)
Vibration: 10 ÷ 500Hz, 2G, 10min / cycle, period for 60min. each along X, Y, Z axes
Working humidity: 20 ÷ 90% RH non-condensing
Storage temperature and humidity: -40°C ÷ 80°C, 10 ÷ 95% RH non-condensing
Temperature coefficient: ± 0.03% / °C (0°C ÷ 50°C)
Vibration: 10 ÷ 500Hz, 2G, 10min / cycle, period for 60min. each along X, Y, Z axes
Safety and EMC regulations:
Safety standards: compliance to EN61347-1, EN61347-2-13, IP67
Withstand voltage: I-P/O-P: 3kVAC
Isolation resistance: I-P/O-P; O-P/FG; I-P/FG: 100MΩ/500VDC/25°C/70%
EMC emission: compliance to EN55015
EMC immunity: compliande to EN61547; EN55024; EN61000-4-2, -3, -4, -5, -6, -8, -11
Harmonic current: compliance to EN61000-3-3; EN61000-3-2
TÜV certificate
Safety standards: compliance to EN61347-1, EN61347-2-13, IP67
Withstand voltage: I-P/O-P: 3kVAC
Isolation resistance: I-P/O-P; O-P/FG; I-P/FG: 100MΩ/500VDC/25°C/70%
EMC emission: compliance to EN55015
EMC immunity: compliande to EN61547; EN55024; EN61000-4-2, -3, -4, -5, -6, -8, -11
Harmonic current: compliance to EN61000-3-3; EN61000-3-2
TÜV certificate
Other:

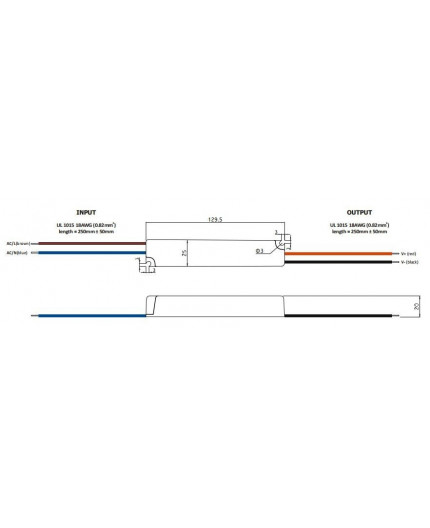

Dimensions: 129.5 x 25 x 20mm
Weight: 0.13kg
Termination style: flying leads, approx. 250mm ± 50mm (UL 1015 18AWG (0.82mm ))
IP67
Dimensions: 129.5 x 25 x 20mm
Weight: 0.13kg
Termination style: flying leads, approx. 250mm ± 50mm (UL 1015 18AWG (0.82mm ))
IP67
GPC-9-700
94 Items
Data sheet
- Type
- Constant Current
- Ingress Protection (IP)
- IP67
- Output
- 700mA
- Wattage
- 8W
- Dimming Control
- Non-dimmable
- Design
- Plastic case
