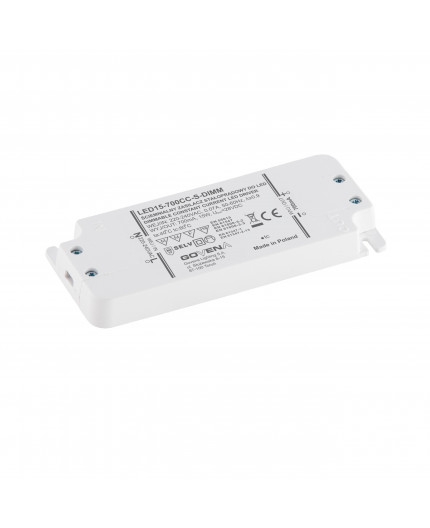

15W 700mA constant current dimmable LED driver Govena

15W 700mA constant current dimmable LED driver, Govena

Dimmable constant current LED power supplies:

- Suitable for LED Lighting
- Dedicated to adjustment LED light intensity by applying light dimmer
- Compatible with triac & transistor dimmers (leading edge and trailing edge)
- Good cooperation with a wide range of commercially available dimmers
- Very good technical parameters
- High Power Factor Correction PF≥ 0.98
- Low content of Harmonic Current THD (Total Harmonic Distortion) ≤6%
- High efficiency up to 88%
- No negative impact on the power grid
- Reversible protections: short circuit, over voltage, overload and thermal
- High reliability
- Fully isolated plastic case
- Can be mounted on the surface of indeterminate flammability class
- Cooling by free air convection
- 100% full load burn-in test
- Comply with European Safety & EMC standards for Lighting

- Conformity with The Eco project Directive ErP 2009/125/EC and its Regulations (No 278/2009 and1194/2012) with regard to eco design requirements for no-load condition electric power consumption and average active efficiency of external and LED power supplies

Product code: LED15-700CC-S-DIMM
Rated power: 15W
Min. load: 7.5W
Output voltage: 21.5VDC
Constant current range: 7-21.5Vdc (rated)
Rated current: 700mA
Voltage tolerance: ±3%
Line regulation: ±3%
Input voltage: 220-240 VAC
Frequency range: 50-60Hz
Output stabilization: Constant current
Power factor: at 100% load and 230Vac - 0.98; at 50%-100% load and 230Vac - ≥0.90
Efficiency (min. load): 83%
Input AC Current: 70mA
Inrush current: <2A
No load power consumption (standby): 0.3W

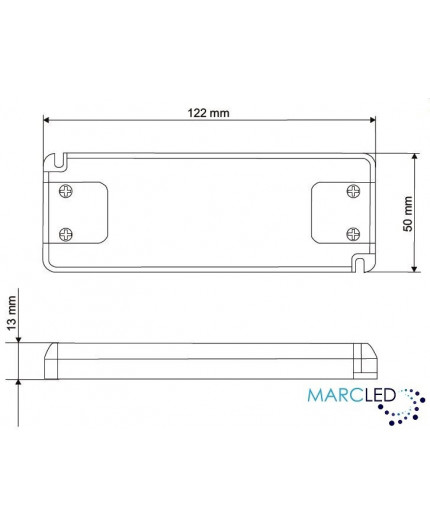

Dimensions: L 122 mm x W 50 mm x H 13 mm
Weight: 68 g
Dimmable: Yes
Protection degree: IP20
SELV
Over Load: 100-110%, Constant current limiting, recovers automatically after fault condition is removed
Short Circuit: Hiccup mode, recovers automatically after fault condition is removed
Over Voltage:  27V; protection type: Constant voltage limiting
Over temperature: Above ta = +40°C, protection type: Over-Temperaturre Shutdown, recovers automatically after temperature goes down
Working temperature ta: -20*C - +40*C
Working humidity: 10-95%RH
Storage temperature/humidity: -20*C - +75*C/10-95%RH
Case temperature tc: max. 80*C
Meets standards: EN 61347-1, EN 61347-2-13, EN 55015, EN 61547, EN 61000-3-2
Low Voltage Directive: LVD 2014/35/EU E
Electromagnetic Compatibility Directive: EMC 2014/30/EU
Eco design Directive: ErP 2009/125/EC (No 278/2009, 1194/2012)
Restriction of the use of certain hazardous substances: RoHS 2011/65/EU
Other:
MAXIMUM LENGTH OF OUTPUT CABLES: 2m
MIN LINE Input: 2x0.75mm2/ Ouput: 2x0.75mm2
NUMBER OF TERMINALS In: 2/ Out: 2
LIFETIME (100% load and ta=+40°C) 30 000h
