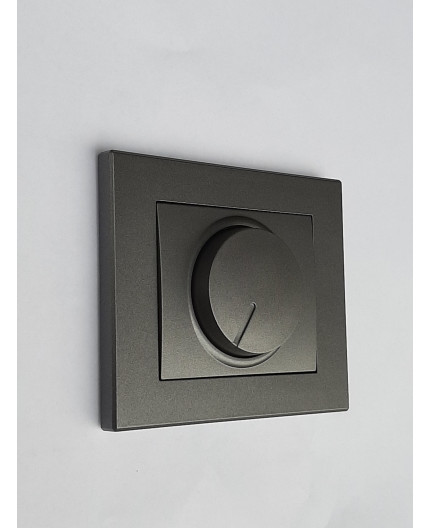

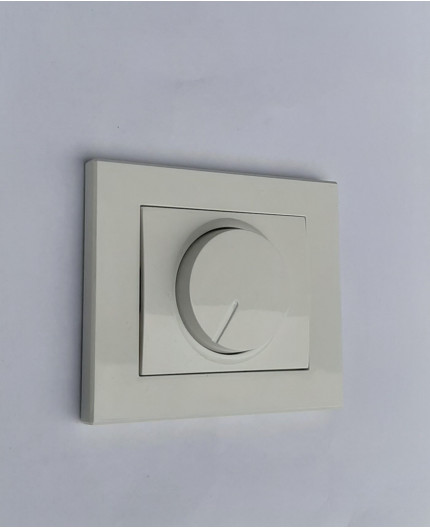

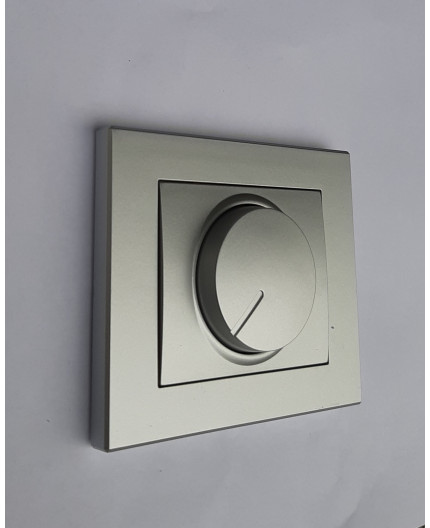

Universal push-rotate dimmer for dimmable HV LED, HV halogen, and more
Universal push-rotate dimmer for dimmable HV LED, HV halogen, controlled by a rotary potentiometer
LED: 3-100W
Halogen: up to 250W
CFL: up to 250W
Incandescent: up to 250W
You can order online 24/7, all ordered goods will be dispatched as soon as possible and we will notify you via e-mail. For custom made orders please contact us.
Orders over £500 (excl. VAT) Standard and Next Day service apply to UK mainland and Northern Ireland only. All orders will be sent by a trackable method.
You have the right to cancel your online website order within 14 calendar working days of ordering, or 14 calendar days of receipt of the goods (whichever is the longer).
Universal push-rotate dimmer for dimmable HV LED, HV halogen, and more, PRO-100-LT-LED
Features:
- adjustable between leading and trailing edge phase control with MICROSWITCH
- adjustable minimum and maximum of brightness
- reset option
- for dimmable HV LED lamps
- controlled by a rotary potentiometer
- very low minimum power - 3W
- soft start
- noiseless
- special circuit design to reduce load peak current
- self-resetting protections: overload, over temperature, short circuit
- Operate in stairs circuits with stair’s 2-way switch
Technical data:
- Rated voltage: 230V ± 10%
- Mains frequency: 50Hz
- Power loss: max 4W
- Output power: 3-100W (LED) 5-250W (incandescent)
- Type of potentiometer axis 19mm length, ∅4 mm, metal axis + adapter to 6mm
- Control power element transistor (leading and trailing edge phase control)
- Current limit: peak 14A
- Protection level: IP20

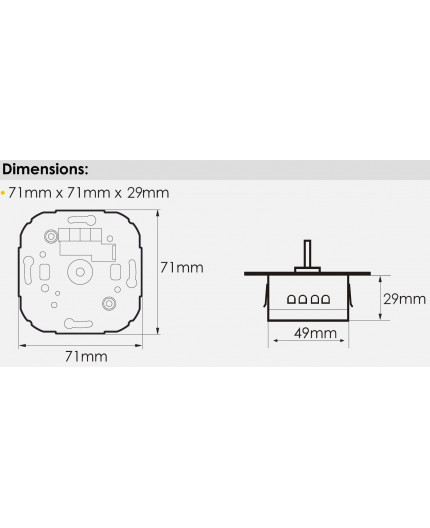

- Dimensions: 71mm x 71mm x 29mm
- Diameter of flush box: Ø60mm
- Connection: screw terminals
single wire: 1x0.5…4.0m2
stranded without ferrule: 1x0.5…4.0mm2
stranded with ferrule: 1x0.5…4.0mm2
- Weight: 71g
- Additional information microprocessor control
Dedicated light sources:
- Dimmable HV LED lamp: 3-100W
- LV LED diodes with dimmable CC LED drivers*: 3-100W
- Incandescent bulbs: 5-250W
- HV Halogen lamps: 5-250W
- LV Halogen lamps with dimmable electronic transformers*: 5-250W
- Dimmable CFL lamps, Govena DIMM: 3-60W
(* recommended Govena products: YT50, YT60, YT70, YT105, YT150, YT210, YT250)
Standards:
- EN 60669-2-1
- EN 60669-1
- EN 55015
- LVD 2014/35/EU
- EN 61547
- EMC 2014/30/EU
- ErP 2009/125/EC (no.278/2009; 1194/2012)
- RoHS 2011/65/EU
- RoHS 2015/863/EU
