24VDC Constant Current LED tape 4000K 180lm/m IP20 5m (110W) SMD2835

24VDC Constant Current LED tape 4000K 180lm/m IP20 5m (110W) SMD2835

£96.00

£96.00 VAT excluded

Volume discounts

Quantity Unit discount You Save
10 1% Up to £9.60
20 2% Up to £38.40
50 3% Up to £144.00
100 4% Up to £384.00
200 5% Up to £960.00
Quantity
approx. 2 weeks
100% secure payments

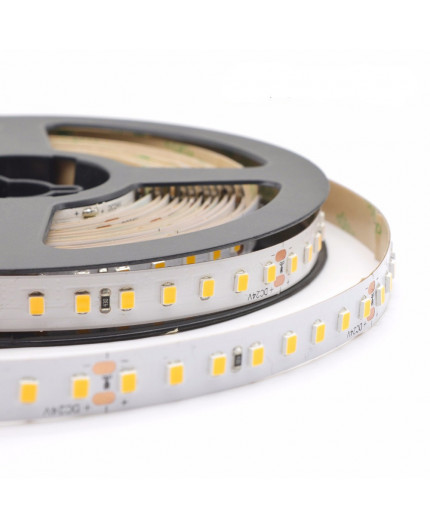

24VDC high efficiency (180lm/m) constant current LED Strip SMD2835, 4000K, 128 LEDs/m, 22W/m, IP20, total length: 5m a roll (110W, 600LEDs), very bright, 4000lm/m, with connection wires at both ends, 12mm PCB



You can order online 24/7, all ordered goods will be dispatched as soon as possible and we will notify you via e-mail. For custom made orders please contact us.



Orders over £500 (excl. VAT) Standard and Next Day service apply to UK mainland and Northern Ireland only. All orders will be sent by a trackable method.



You have the right to cancel your online website order within 14 calendar working days of ordering, or 14 calendar days of receipt of the goods (whichever is the longer).

24VDC High Efficiency 180lm/m constant current LED tape 4000K SMD2835, IP20, 5m a reel (110W, 640LEDs)

Temperature Sensor Constant Current LED Strip from PREMIUM range.
Constant current version: with stable current, suitable for high-quality requirements project.
With constant current IC for each segment: NO need of a constant current driver.
DC24V input: can work with any DC24V PWM control system or dimmer such as RF, 0-10V, DALI, DMX512, etc.
Can work with unstable power supply and without damage.
With a temperature sensor: can lower the current to protect itself when the temperature is too high.
Brightness uniform: with the same brightness from the first end to the last end
DC24V version: can work with DC21V to DC30V input (the same current)
The voltage drop will not affect the brightness uniform of LED strips (DC21V-DC30V input)
The constant current LED strip is cuttable like the constant voltage LED strip

Chip: SMD2835
Input voltage: 24VDC
Type of LED power supply/driver: constant voltage
Quantity/m: 128 LEDs per meter
Power: 22W/m
CCT: 4000K (natural white)
Brightness: approx. 180lm/m
Beam angle: 120degree
Total length (reel): 5m (110W, 640LEDs)
Degree of protection: IP20 (non-waterproof)
PCB: 12mm wide white PCB
Inst.: 12mm wide self-adhesive 3M tape backing
Cutting points: at 8 LED (62.5mm) intervals
Connections: with approx. 200mm connection wires at both ends
Operation temperature: -20℃-+45℃

Dimming: yes (depending on dimming method: main trailing/leading edge or 0-10V or DALI, etc.)

ML-F2835A64-N-24C-HE
100 Items

Data sheet

Light colour
Natural white
LED quantity
128LEDs/m
Colour temperature (CCT)
4000K
Ingress Protection (IP)
IP20 (non-waterproof)
PCB width
12mm
Length
5.0m / 5000mm
Watts per metre
22W/m
Features
Single Colour
Input voltage
24VDC
CRI
≥80
Version
Constant Current (CC)
LED chip
SMD2835
Cut length
62.50mm
Lumens per metre
2000 - 4999 lm/m
Beam angle
120 degree
