0.95 VAT excl.
£1.14 VAT incl.

Sample of 24VDC LED tape, 4000K, 60 LEDs/m, 4.8W/m, SMD3528, IP20, 8mm white PCB, 450lm/m, length: 10cm = 0.48W, with connection wires at one end

Volume discounts

Quantity Unit price You Save
5 £0.95 £0.05
10 £0.95 £0.19
20 £0.95 £0.57
50 £0.95 £1.90
100 £0.95 £4.75
20 Items
Last items in stock


You can order online 24/7, all ordered goods will be dispatched as soon as possible and we will notify you via e-mail. For custom made orders please contact us.



Orders over £500 (excl. VAT) Standard and Next Day service apply to UK mainland and Northern Ireland only. All orders will be sent by a trackable method.



You have the right to cancel your online website order within 14 calendar working days of ordering, or 14 calendar days of receipt of the goods (whichever is the longer).

Sample of 24VDC LED tape, cool white 4000K, 4.8W/m, 60LED/m, IP20, SMD3528

LED chip: SMD3528
Input voltage: 24VDC
Type of LED power supply/driver: constant voltage
Number of LEDs per meter: 60
Power: 4.8W/m
Colour temperature (CCT): 4000K
Brightness: approx. 450lm/m
Beam angle: 120 degree
CRI(Ra)≥80
Energy Efficiency Rating: A+

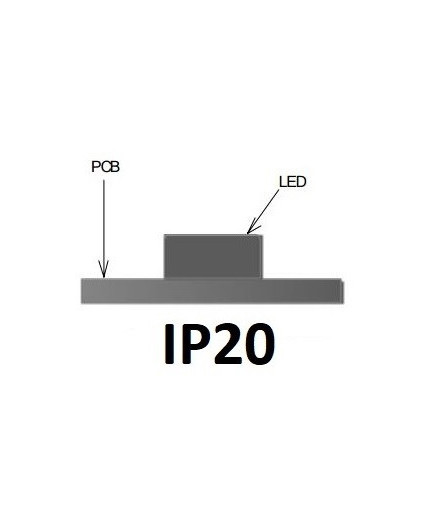

Degree of protection: IP20 (non-waterproof)
Width of PCB: 8mm
Installation: 8mm wide self-adhesive 3M tape backing

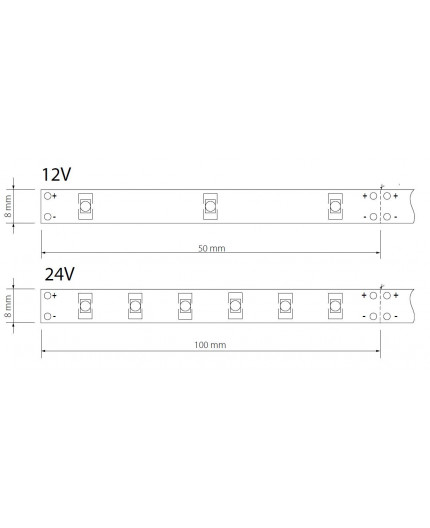

Cutting points: at 6 LED (100mm) intervals

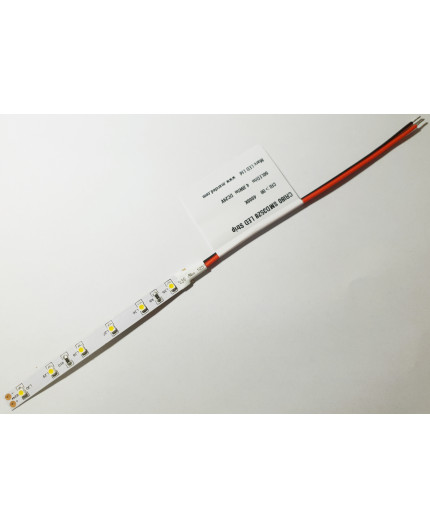

Connections: with approx. 200mm connection wires at one end
Operation temperature: -20℃-+45℃
Average life span: 50000h
Sample length: 10cm
Dimming: yes (0-10V/1-10V/DMX/DALI/Triac) (if the LED tape is connected to the suitable dimmable LED power supply, additional dimmer switch required)

Note:

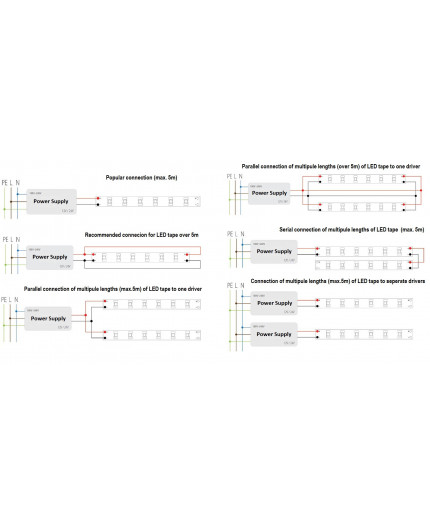

Adopt a suitable LED power supply to match the LED tapes.
The power of the LED power supply should be 20% bigger than the max power of LED tapes in order to ensure the long-time performance of the LED power supply.

ML-F3528A30-N-24-SAMPLE
20 Items

Data sheet

Light colour
White
LED quantity
60LEDs/m
Colour temperature (CCT)
4000K
Ingress Protection (IP)
IP20 (non-waterproof)
PCB width
8mm
Length
SAMPLE
Watts per metre
4.8W/m
Features
Single Colour
Input voltage
24VDC
CRI
≥80
Version
Constant Voltage (CV)
LED chip
SMD3528
Cutting
100mm
Lumens per metre
0 - 499 lm/m
Beam angle
120 degree
