Save 20%
36.24 VAT excl.
£43.49 VAT incl. £45.30

24VDC LED Strip, AMBER, 60 LEDs/m, 4.8W/m, 10mm white PCB, IP54, SMD3528 total length: 5m (24W, 300LEDs), 120-130lm/m, with connection wires at both ends

Volume discounts

Quantity Unit price You Save
5 £45.30 £2.27
10 £45.30 £9.06
20 £45.30 £27.18
50 £45.30 £90.60
100 £45.30 £226.50
1 Item
Last items in stock


You can order online 24/7, all ordered goods will be dispatched as soon as possible and we will notify you via e-mail. For custom made orders please contact us.



Orders over £500 (excl. VAT) Standard and Next Day service apply to UK mainland and Northern Ireland only. All orders will be sent by a trackable method.



You have the right to cancel your online website order within 14 calendar working days of ordering, or 14 calendar days of receipt of the goods (whichever is the longer).

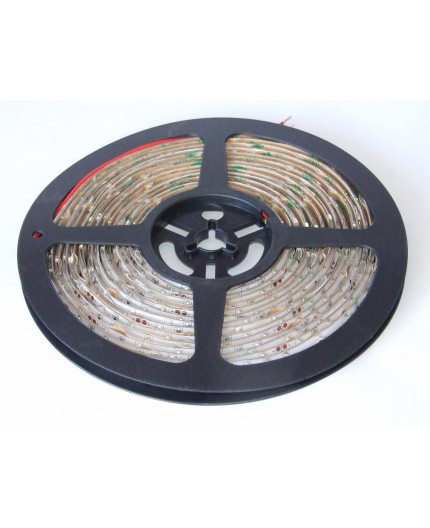

24VDC LED tape, amber, 4.8W/m, 60LED/m, 5m (24W, 300 LED), IP54, SMD3528

LED chip: SMD3528
Input voltage: 24VDC
Type of LED power supply/driver: constant voltage
Number of LEDs per meter: 60
Power: 4.8W/m
Colour temperature (CCT): AMBER (before applying silicon glue on LEDs)
Brightness: approx. 120-130lm/m
Beam angle: 120 degree
CRI(Ra)≥80
Energy Efficiency Rating: A+

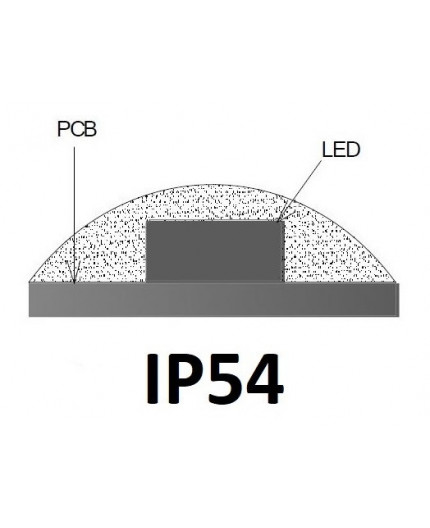

Degree of protection: IP54 (splashproof)
Width of PCB: 10mm
Installation: 10mm wide self-adhesive 3M tape backing

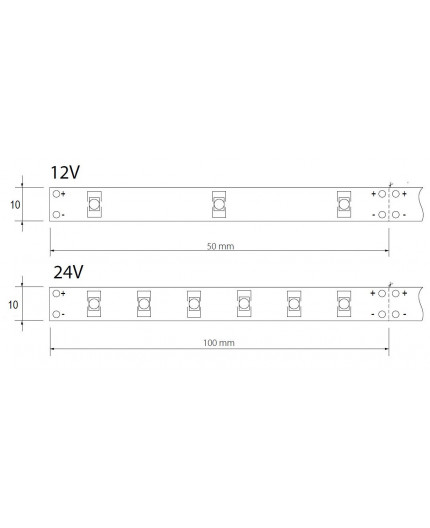

Cutting points: at 6 LED (100mm) intervals
Connections: with approx. 200mm connection wires at both ends
Operation temperature: -20℃-+45℃
Average life span: 50000h
Packing (total length): 5m (24W, 300LEDs)
Warranty: 3 years
Dimming: yes (0-10V/1-10V/DMX/DALI/Triac)

Note:

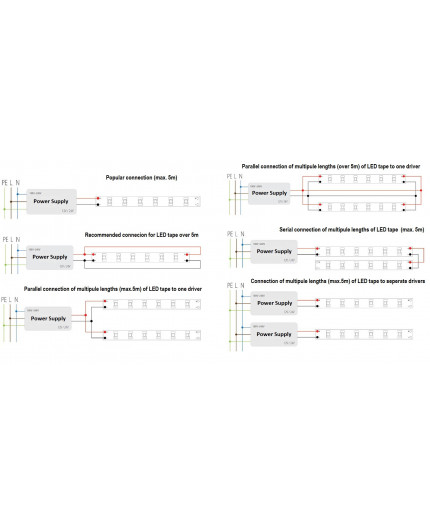

Adopt a suitable LED power supply to match the LED tapes.
The power of the LED power supply should be 20% bigger than the max power of LED tapes in order to ensure the long-time performance of the LED power supply.

ML-F3528S30-A-24
1 Item

Data sheet

Light colour
Amber
LED quantity
60LEDs/m
Ingress Protection (IP)
IP54 (splashproof)
PCB width
10mm
Length
5.0m / 5000mm
Watts per metre
4.8W/m
Features
Single Colour
Input voltage
24VDC
CRI
≥80
Version
Constant Voltage (CV)
LED chip
SMD3528
Cutting
100mm
Lumens per metre
0 - 499 lm/m
Beam angle
120 degree
