24VDC LED tape, 1-LED cut (10mm), 3500K, 8.4W/m, 100LED/m, 5m, IP20, SMD2835
24VDC LED tape, 1-LED cut (10mm), 3500K, 8.4W/m, 100LED/m, 5m, IP20, SMD2835
24VDC LED tape, 1-LED cut (10mm), 3500K, 8.4W/m, 100LED/m, 5m, IP20, SMD2835
24VDC LED tape, 1-LED cut (10mm), 3500K, 8.4W/m, 100LED/m, 5m, IP20, SMD2835
Previous keyboard_arrow_left
Next keyboard_arrow_right
zoom_in
24VDC LED tape, 1-LED cut (10mm), 3500K, 8.4W/m, 100LED/m, 5m, IP20, SMD2835
24VDC LED tape, 1-LED cut (10mm), 3500K, 8.4W/m, 100LED/m, 5m, IP20, SMD2835
24VDC LED tape, 1-LED cut (10mm), 3500K, 8.4W/m, 100LED/m, 5m, IP20, SMD2835
24VDC LED tape, 1-LED cut (10mm), 3500K, 8.4W/m, 100LED/m, 5m, IP20, SMD2835

24VDC LED tape, 1-LED cut (10mm), 3500K, 8.4W/m, 100LED/m, 5m, IP20, SMD2835

28.00 VAT excl.
£33.60 VAT incl.

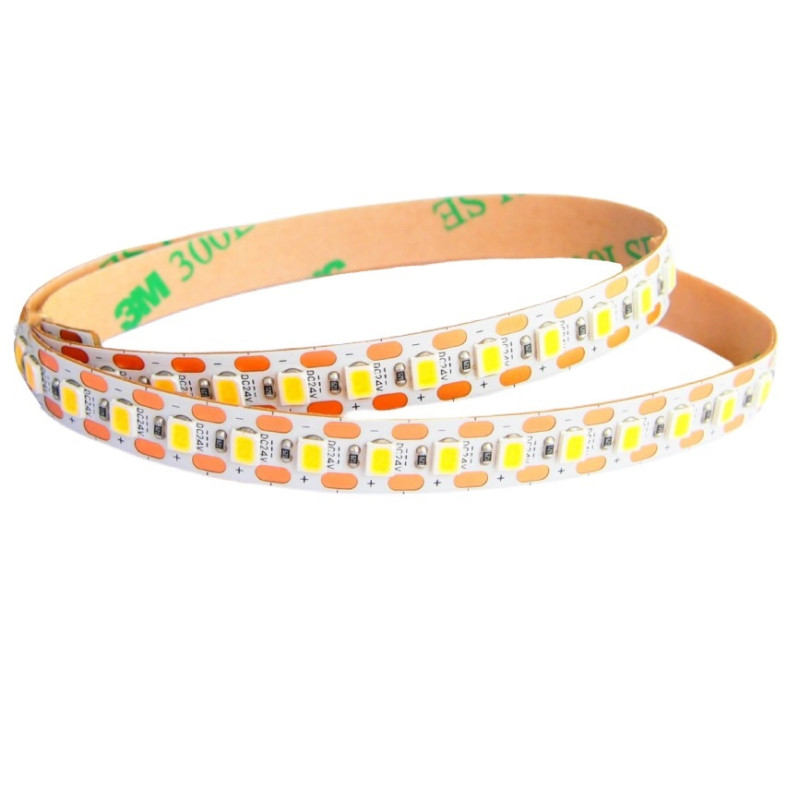

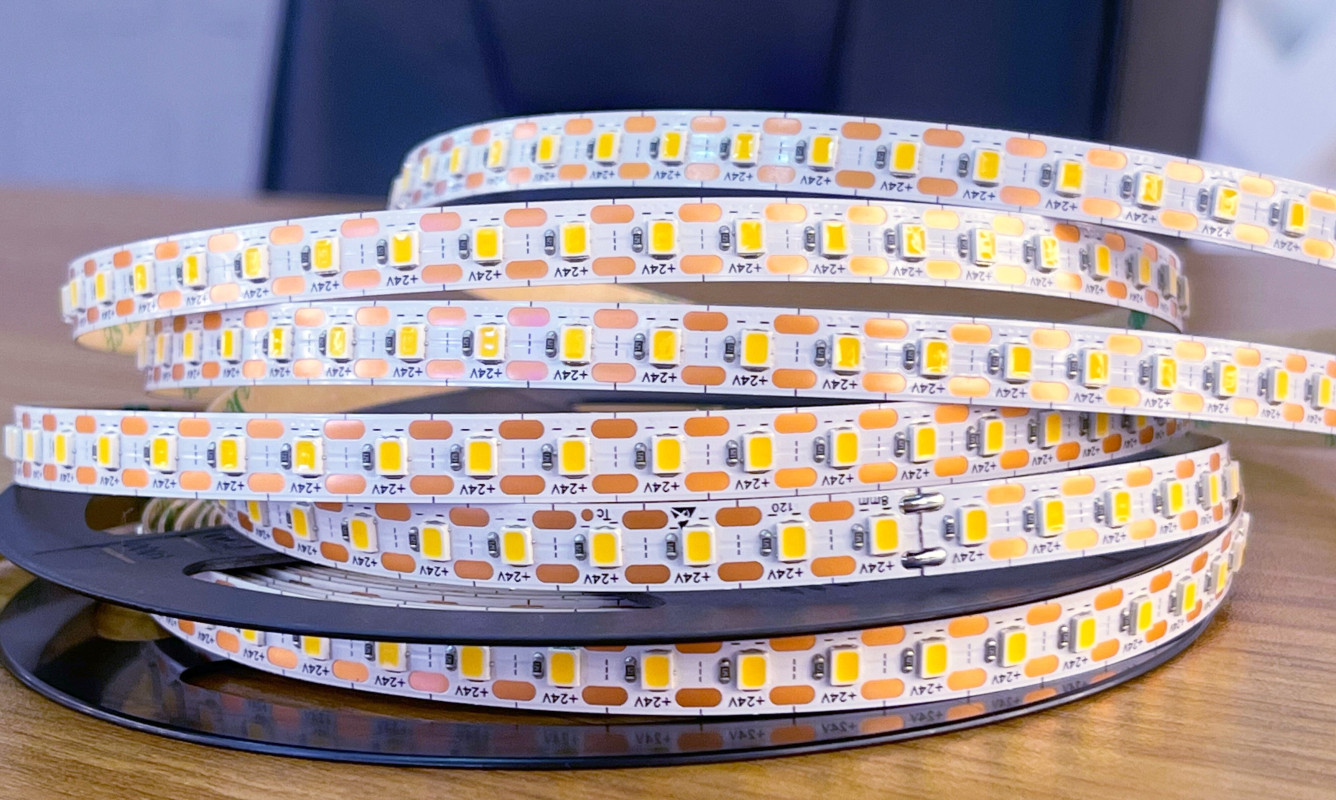

24VDC LED tape, 3500K warm white, CRI90+, 100LED/m, 8.4 W/m, 8mm white PCB, IP20, length: 5m (42W, 500LEDs), with connection wires at both ends, SMD2835
1-LED cut

Volume discounts

Quantity Unit price You Save
5 £28.00 £1.40
10 £28.00 £5.60
20 £28.00 £16.80
50 £28.00 £56.00
100 £28.00 £140.00
5 Items
Last items in stock


You can order online 24/7, all ordered goods will be dispatched as soon as possible and we will notify you via e-mail. For custom made orders please contact us.



Orders over £500 (excl. VAT) Standard and Next Day service apply to UK mainland and Northern Ireland only. All orders will be sent by a trackable method.



You have the right to cancel your online website order within 14 calendar working days of ordering, or 14 calendar days of receipt of the goods (whichever is the longer).

24VDC LED tape, warm white 3500K, 8.4W/m, 100LED/m, 5m (42W, 500 LED), IP20, SMD2835, 1-LED cut

Applications:
- car decoration
- architectural decorative lighting
- furniture lighting
- backlighting for signage letters
- etc.

LED chip: SMD2835
Input voltage: 24VDC
Type of LED power supply/driver: constant voltage
Number of LEDs per meter: 100
Power: 8.4W/m
Colour temperature (CCT): 3500K, warm white
Brightness: approx. 1030lm/m
Beam angle: 120 degree
CRI(Ra)≥90
Energy Efficiency Rating: E

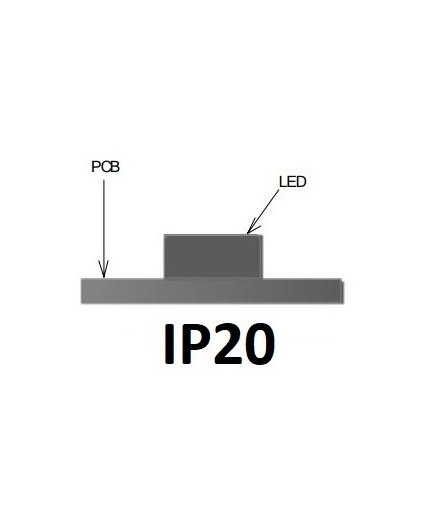

Degree of protection: IP20 (non-waterproof)
Width of PCB: 8mm
Installation: 8mm wide self-adhesive 3M tape backing
Cutting points: at 1-LED (10mm) intervals
Connections: with approx. 300mm connection wires at both ends
Operation temperature: -20℃-+45℃
Average life span: 50000h
Packing (total length): 5m (42W, 500LEDs)
Dimming: yes (0-10V/1-10V/DMX/DALI/Triac) (0-10V/1-10V/DMX/DALI/Triac)
UL, CUL, CE, RoHS approved
Comply with the European ErP EcoDesign regulation
Warranty: one year

Note:

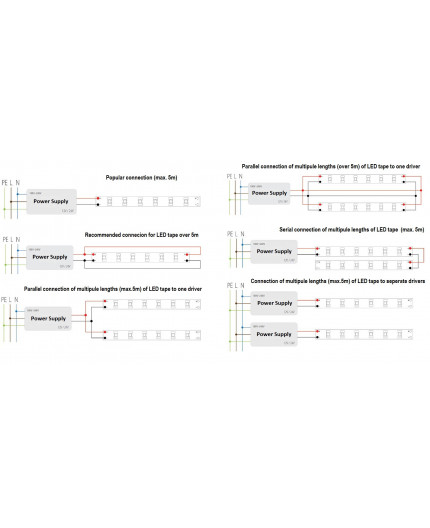

Adopt a suitable LED power supply to match the LED tapes.
To ensure its long-term performance, the power of the LED power supply should be 20% bigger than the maximum power of LED tapes.

ML-F2835A50SA-WN-24-CES1P
5 Items

Data sheet

Light colour
White
LED quantity
100LEDs/m
Colour temperature (CCT)
3500K
Ingress Protection (IP)
IP20 (non-waterproof)
PCB width
8mm
Length
5.0m / 5000mm
Watts per metre
8.4W/m
Features
Single Colour
Input voltage
24VDC
CRI
≥90
Version
Constant Voltage (CV)
LED chip
SMD2835
Cutting
10mm (1-LED)
Lumens per metre
1000 - 1999 lm/m
Beam angle
120 degree
