30W 12Vdc triac dimmable LED power supply
20.00 VAT excl.
£24.00 VAT incl.
30W LED Triac Dimmable Switching Power Supply (CV+CC)
- European AC input
- Constant voltage design: 12Vdc
- Built-in active PFC function
- AC phase cut (leading or trailing edge) dimmable
You can order online 24/7, all ordered goods will be dispatched as soon as possible and we will notify you via e-mail. For custom made orders please contact us.
Orders over £500 (excl. VAT) Standard and Next Day service apply to UK mainland and Northern Ireland only. All orders will be sent by a trackable method.
You have the right to cancel your online website order within 14 calendar working days of ordering, or 14 calendar days of receipt of the goods (whichever is the longer).

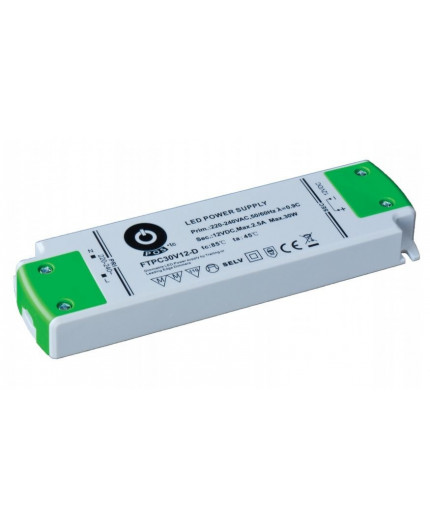

Triac dimmable LED power supply 30W 12Vdc
Model: FTPC30V12-D
Output:
LED driver mode: constant voltage
Output Voltage: 12Vdc
No of outputs: 1
Output Voltage: 12Vdc
No of outputs: 1
Rated current: 2.5A
Current range: 0.04-2.5A
Rated power: 30W
No Load Output Voltage (max.): 16V
Line regulation: ± 1%
Load regulation: ± 5%
Voltage tolerance: ± 5%
Ripple & noise (max.): 1500mVP-P
Setup, rise time: 500ms, 30ms at full load
Hold up time (typ.): 5ms / 230VAC at full load
Rated power: 30W
No Load Output Voltage (max.): 16V
Line regulation: ± 1%
Load regulation: ± 5%
Voltage tolerance: ± 5%
Ripple & noise (max.): 1500mVP-P
Setup, rise time: 500ms, 30ms at full load
Hold up time (typ.): 5ms / 230VAC at full load
Input:
Input Voltage: 180-264Vac
Frequency range: 47 ÷ 63Hz
Power Factor (typ.): PF > 0.9 / 230VAC at full load
Efficiency: 83%
AC current (typ.): 0.2A / 230VAC
Input Voltage: 180-264Vac
Frequency range: 47 ÷ 63Hz
Power Factor (typ.): PF > 0.9 / 230VAC at full load
Efficiency: 83%
AC current (typ.): 0.2A / 230VAC
Inrush current (typ.): 90A / 230VAC(25°C)
No Load Power Consumption (max.): 0.5W
No Load Power Consumption (max.): 0.5W
Protections:
Overcurrent:
- Range: > 100%
- Type: Decrease output current. Recovers automatically after fault condition is removed.
Overcurrent:
- Range: > 100%
- Type: Decrease output current. Recovers automatically after fault condition is removed.
Short circuit:
- Type: Decrease output current. Recovers automatically after fault condition is removed.
Over voltage:
Over voltage:
- > 15.5V
- Type: shut down output voltage. Re-power on to recovery.
Over Temperature
- Range: 110°C ± 10°C
- Type: Decrease output current. Recovers automatically after fault condition is removed.
Over Temperature
- Range: 110°C ± 10°C
- Type: Decrease output current. Recovers automatically after fault condition is removed.
Environment:
Working temperature: -20°C ÷ +45°C
Working humidity: 45 ÷ 85% RH non-condensing
Storage temperature and humidity:-30°C ÷ +70°C, 10 ÷ 95% RH non-condensing
Working humidity: 45 ÷ 85% RH non-condensing
Storage temperature and humidity:-30°C ÷ +70°C, 10 ÷ 95% RH non-condensing
Safety and EMC regulations:
Safety standards: Compliance to EN61347-1, EN61347-2-13
Withstand voltage: IN/OUT: 3.75kVAC
EMC emission: Compliance to EN55015
EMC immunity: Compliance to EN61547
Harmonic current: Compliance to EN61000-3-2, EN61000-3-3
Safety standards: Compliance to EN61347-1, EN61347-2-13
Withstand voltage: IN/OUT: 3.75kVAC
EMC emission: Compliance to EN55015
EMC immunity: Compliance to EN61547
Harmonic current: Compliance to EN61000-3-2, EN61000-3-3
Other:
Dimensions: 159 x 46 x 18mm (L x W x H)
Weight: 0.2kg
ML-FTPC30V12-D
9 Items
Data sheet
- Type
- Constant Voltage
- Ingress Protection (IP)
- IP20 (non-waterproof)
- Output
- 12VDC
- Wattage
- 30W
- Dimming Control
- Trailing / Leading edge
- Design
- Plastic case
- Power factor correction (PFC)
- Built-in active PFC function
