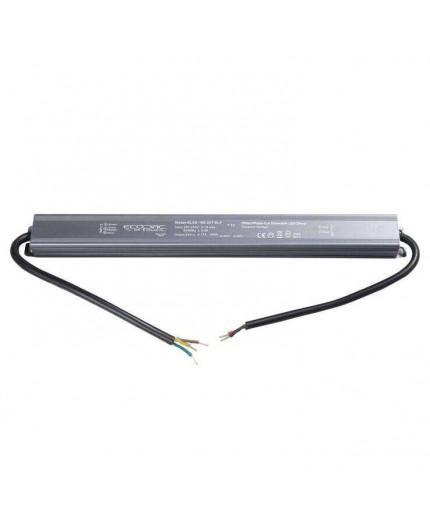

100W Slim Constant Voltage Triac dimmable LED driver for 24Vdc LED lights
Model: ELED-100-24T-SLP (slim)
Output DC voltage: 24V
Rated current: 4.17A
Rated power: 100W
Min. load: 10W
Input Voltage Range: 200-240VAC
Frequency Range: 47-63HZ
Voltage accuracy: ±0.5V
Inrush Current: 52A, 50% 210us@230VAC
Power Factor ( Typ.): PF ≥ 0.96/220V
Full Load Efficiency(Typ.): 88%
AC Current (Max.): 0.59A
Short Circuit: Shut down o/p voltage, re-power onto recover after fault condition is removed.
Over loading: ≤120%, constant current limiting, re-power onto recover
Over Temperature: 100°C ±10°C, re-power onto recover
Protection Class: I
Working TEMP.: -40~+60°C
Working Humidity: 20~95%RH, non-condensing
Storage TEMP.-40*C - +80*V
Humidity: 10-95% RH
Temperature Coefficient: ±0.03%/°C (0-50°C)
Vibration: 10~500Hz,5G 10min./1 cycle, period for 60min.each along X,Y,Z axes.
Safety standards: EN613471, EN61347-2-13, EN62493
Withstand voltage: I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC
Isolation resistance: I/P-O/P I/P-FG O/P-FG: 100MΩ/500VDC/25°C/70%RH
EMC EMISSION: Compliance to EN55015, EN61000-3-2, EN61000-3-3
EMC IMMUNITY: Compliance to EN61000-4-2,3,4,5,6,11, EN61547
IP Rating: IP66
Dimensions: 330*32*23mm (L*W*H)
Packing: 0.6Kg
NOTE: ELED-100-24T-SLP prefers leading edge dimmers
