0 - 80W 24V Dimmable (trailing edge) Electronic Transformer for LED DC, TE80W

38.00 VAT excl.
£45.60 VAT incl.

TE80W, 0-80W dimmable electronic transformer for 24vdc LED lights

- For best compatibility use intelligent dimmers (trailing edge)
- Constant Voltage Design

Volume discounts

Quantity Unit price You Save
5 £38.00 £1.90
10 £38.00 £7.60
20 £38.00 £22.80
50 £38.00 £76.00
100 £38.00 £190.00
13 Items
Last items in stock


You can order online 24/7, all ordered goods will be dispatched as soon as possible and we will notify you via e-mail. For custom made orders please contact us.



Orders over £500 (excl. VAT) Standard and Next Day service apply to UK mainland and Northern Ireland only. All orders will be sent by a trackable method.



You have the right to cancel your online website order within 14 calendar working days of ordering, or 14 calendar days of receipt of the goods (whichever is the longer).

0 - 80W 24Vdc Dimmable (trailing edge) Electronic Transformer for LEDs, TE80W-DIMM-LED-24V
5 years warranty

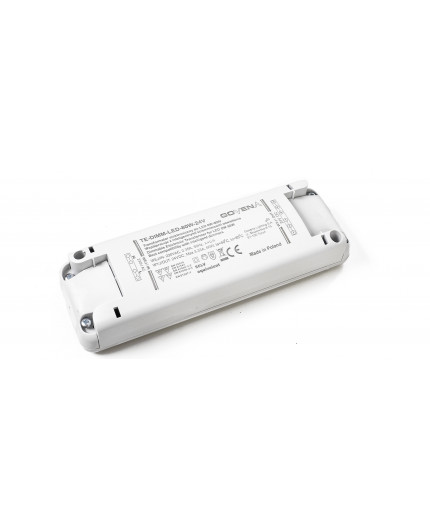

Electronic LED transformer with built-in AC/DC converter.

- For best compatibility use intelligent dimmers
- Constant Voltage Design
- Protections: Short circuit/ Over voltage/Over temperature
- Cooling by free air convection
- IP64 design
- Delivering up to 80W of power
- Suitable for 24VDC LED lighting

Input voltage: 230 V AC +/-10%, 50Hz
Input current: ≤ 0,35 A
Power factor: >0,9
Output voltage: 24VDC +/- 10%
Rated power: 80W
Power range: 0 – 80 W
Nominal output current: ≤ 3.33 A
Output current range: 0 – 3.3 A
Protection degree: IP40
Ambient temperature ta: max. 40 ºC
Case temperature tc: max. 85 ºC
Number of terminals input: 4
Number of terminals output: 6
Weight: 290g
Dimensions: 173 x 54 x 33 mm

Cooperation with light dimmers:
TE80W-DIMM-LED-24V can by used for the adjustment of the LED light intensity by applying light dimmer.
For best compatibility use intelligent transistor dimmers which cut off the mains voltage towards the end of sine wave (trailing edge dimmers).

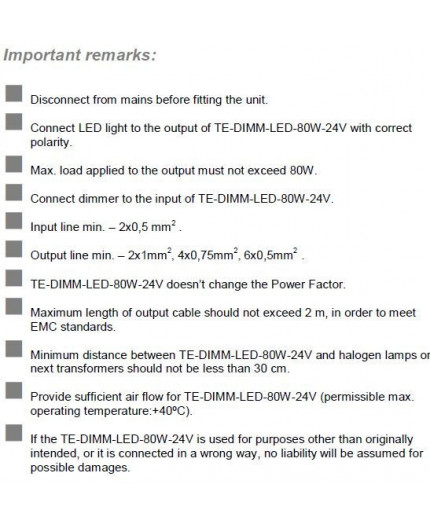

Important remarks:

-       Disconnect from mains before fitting the unit.

-        Connect LED light to the output of TE-DIMM-LED-80W-24V with correct

-       Max. load applied to the output must not exceed 80W.

-       Connect dimmer to the input of TE-DIMM-LED-80W-24V.

-       Input line min. – 2x0,5 mm2 .

-       Output line min. – 2x1mm2, 4x0,75mm2, 6x0,5mm2 .

-       TE-DIMM-LED-80W-24V doesn’t change the Power Factor.

-       Maximum length of output cable should not exceed 2 m, in order to meet EMC standards.

-       Minimum distance between TE-DIMM-LED-80W-24V and halogen lamps or next transformers should not be less than 30 cm.

-        Provide sufficient air flow for TE-DIMM-LED-80W-24V (permissible max. operating temperature:+40ºC).

-        If the TE-DIMM-LED-80W-24V is used for purposes other than originally intended, or it is connected in a wrong way, no liability will be assumed for possible damages.

TE80W-DIMM-LED-24V
13 Items

Data sheet

Type
Constant Voltage
Ingress Protection (IP)
IP40
Output
24VDC
Wattage
80W
Dimming Control
Trailing / Leading edge
Design
Plastic case
