24Vdc 300W DALI dimmable LED driver, active PFC, ELED-300-24D
24Vdc 300W DALI dimmable LED driver, active PFC, ELED-300-24D

24Vdc 300W DALI dimmable LED driver, active PFC, ELED-300-24D

165.00 VAT excl.
£198.00 VAT incl.

300W DALI dimmable LED driver, Constant Voltage, IP20
Suitable for 24Vdc LED lighting and moving sign applications.

Volume discounts

Quantity Unit price You Save
5 £198.00 £9.90
10 £198.00 £39.60
20 £198.00 £118.80
50 £198.00 £396.00
100 £198.00 £990.00
0 Item


You can order online 24/7, all ordered goods will be dispatched as soon as possible and we will notify you via e-mail. For custom made orders please contact us.



Orders over £500 (excl. VAT) Standard and Next Day service apply to UK mainland and Northern Ireland only. All orders will be sent by a trackable method.



You have the right to cancel your online website order within 14 calendar working days of ordering, or 14 calendar days of receipt of the goods (whichever is the longer).

DALI dimmable LED driver, active PFC 300W
Model: ELED-300-24D
DALI dimmable
Dimming range: 0.1-100%
- DALI dimmable
- Constant Voltage Design, 24Vdc
- IP20 design
- Built-in active PFC function
- Suitable for LED lighting and moving sign applications
- Dimming range: 0.1-100%

Output DC voltage: 24V
Rated current: 0~15A
Voltage accuracy: ±0.5V
Rated power: 300W
Min. load: 2.5W

Input Voltage Range: 100-265VAC
Frequency Range: 47-63HZ
Power Factor ( Typ.): PF≥0.98/120VAC
Full Load Efficiency (Typ.): 78%
AC Current (Typ.): 0.25A
Leakage current: <0.5mA
Protections: Short Circuit (Hiccup mode, recovers automatically after fault condition is removed)/ Over Loading (≤120%)
Built-in active PFC function
Cooling by free air convection
Working TEMP.: -40~+60°C
Working Humidity: 20~90%RH, non-condensing
Storage TEMP.-40~+60℃,10~95%RH
Humidity: ±0.03%/℃(0~50℃)
Vibration: 10~500Hz, 2G 10min./1 cycle, period for 60min.each along X,Y,Z axes
Safety standards: EN61347-1 EN61347-2-13
Withstand voltage: I/P-O/P:3.75KVAC
Isolation resistance: I/PO/P:100M Ohms/500VDC/25℃/70%RH
EMC Emission: Compliance to EN55015,EN61000-3-2 (≥60%load)
EMC Immunity: Compliance to EN61000-4-2,3,4,5,6,11, A light industry Level (surge 4KV)

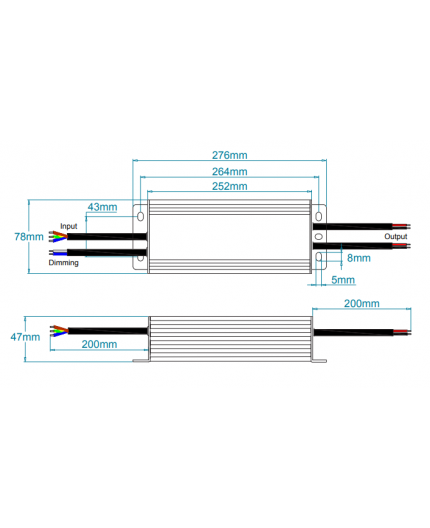

Dimensions: 276 x 78 x 47mm (L*W*H)
Packing: 1.65Kg

ELED-300-24D
0 Item

Data sheet

Type
Constant Voltage
Ingress Protection (IP)
IP20 (non-waterproof)
Output
24VDC
Wattage
360W
Dimming Control
DALI
Design
Plastic case

Download

ELED-360-D

ELED-360-D datasheet

Download (919.34KB)
