MEW-01 Wi-fi Electric energy monitor for 3-phase or 1phase power supply Supla

Wi-fi Electric energy monitor, for three-phase or single-phase power supply, Supla

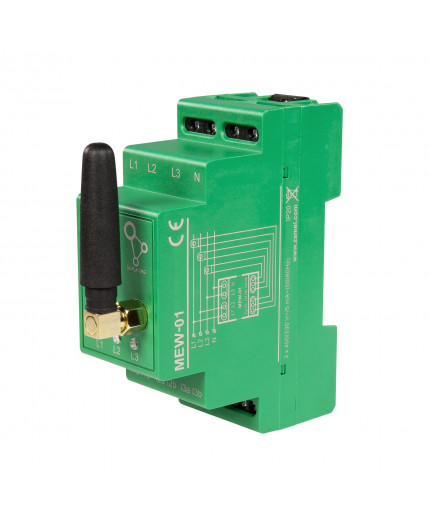

The MEW-01 electricity monitor allows you to control energy consumption through a Wi-Fi wireless network.

The MEW-01 monitor is a 3-phase device that is easily installed in an electrical switchboard, without additional costs.

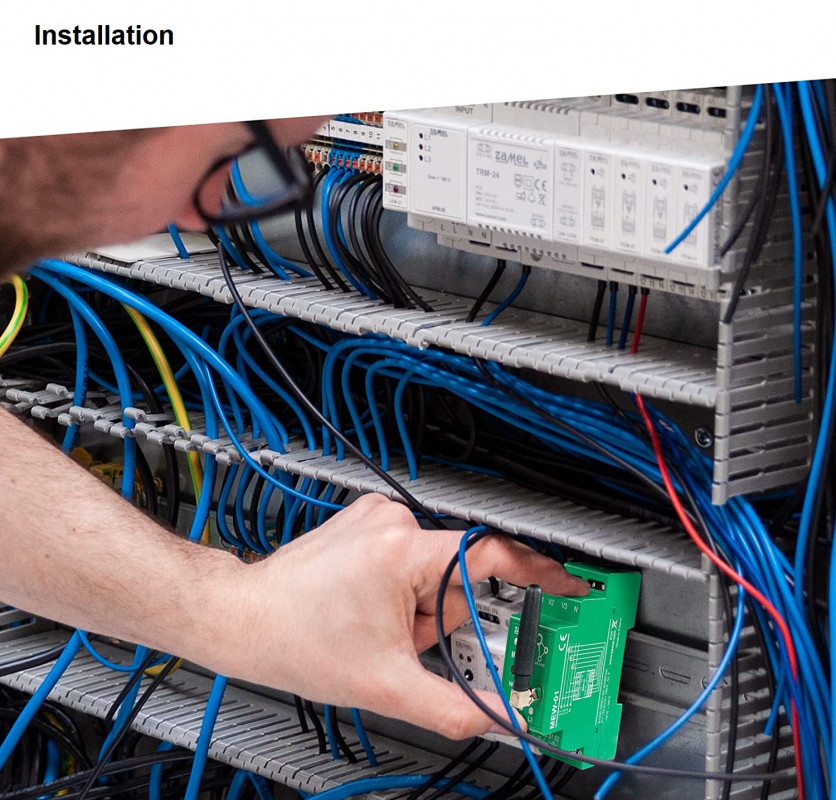

The MEW-01 receiver is intended for installation in switchboards on a TH35 rail (DIN). The device occupies two modules. An important element is the connection of 100A current transformers and antenna (included in the kit). If the antenna must be installed outside the switch cabinet (mainly for metal switchgears) an external antenna should be used for this purpose. The antenna has a SMA connector.

It is worth paying attention to the fact that MEW-01 enables the measurement of energy consumption also in phase 1.

PRODUCT FUNCTIONAL FEATURES:

1. Simple installation - commercially available building automation systems are usually very complex, closed and expensive. In many cases, they require installation already at the stage of building the facility. SUPLA devices are simple to assemble and configure and do not need additional wiring.

2. SUPLA Community - SUPLA products have a developed community. You can share your comments and ideas with other system users, you can look for support and inspiration in the community forum. Join thousands of satisfied users!

3. 3off 100 A current transformers included

4. Wi-Fi - all SUPLA products communicate over a wireless network. Thanks to this, you don't have to invest in expensive building automation controllers. Via Wi-Fi, you can connect to devices from anywhere on earth. You don't have to worry about providing additional communication cables to the devices.

5. Measurement of electricity consumption as well as current, voltage and power on three phases.

6. The ability to measure electricity consumption in one phase.

7. Everything at hand - each of us sometimes wonders if he turned off the light, stove or kettle after leaving the house. You don't have to worry about that today. All you have to do is mount SUPLA devices and you can immediately check if everything that should have been turned off.

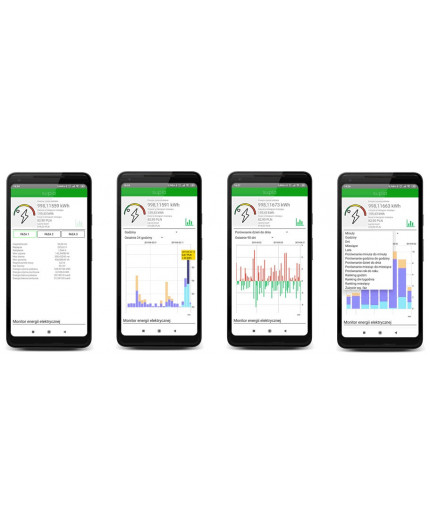

8. Transfer and access to measurement data in the cloud. Downloading electricity consumption reports to an Excel file. Data on electricity consumption and measured network parameters (also in the form of graphs) presented in the Supla application.

WHAT YOU NEED?
• Access to the switchboard.
• Screwdriver and pliers.
• 2.5 mm² max core cable for power supply wiring
• Recommended: electrician’s license for max. 1 kV systems.

TECHNICAL SPECIFICATIONS
Voltage rating: 3 x 230/400 V AC
Voltage tolerance: -20% to +15%
Rated power input: 1.5 W
Frequency: 50/60 Hz
Measurement accuracy: Class 2 (±2%)
Current transformer specifications: 0.1 to 33.3 mA / 100 A
Operating temperature: -10°C to +55°C
Supply voltage ON indicator: 1 LED per each supply voltage phase
Ingress protection rating: IP20
Maximum wiring size: 10 (2.5 mm² max conductor)
Enclosure installation: TH-35 mounting rails, clearance for 2 modules
Transmission: Wi-Fi 2.4 GHz 802.11 b/g/n
Transmission range: Ref. the Wi-Fi range
Dimensions: 90 x 35 x 66 mm
Weight: 0,4 kg
Reference standards:
EN 61010-1, EN 50470-1,
EN 50470-3, EN 301 489-17,
ETSI EN 300 328,
ETSI EN 301 489-1
Power input terminals: V1; V2; V3; N
CT terminals: S1 S2 – I1; S1 S2 – I2; S1 S2 – I3
