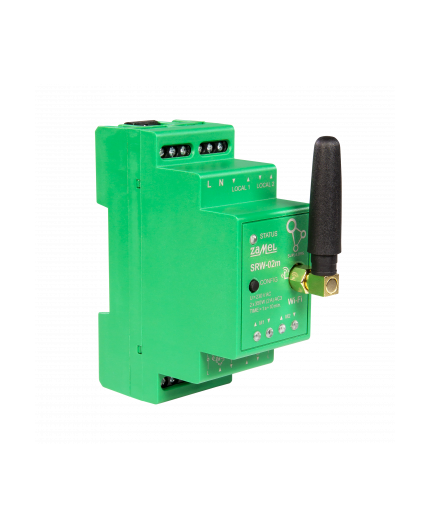

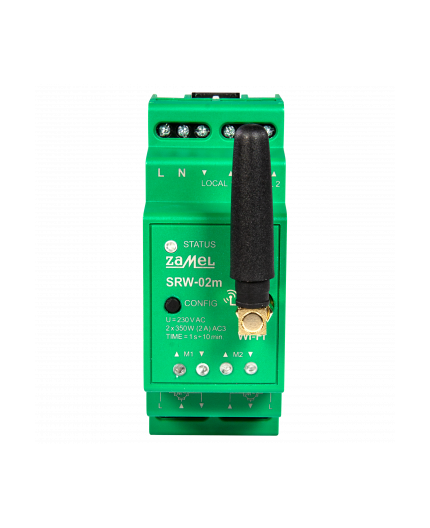

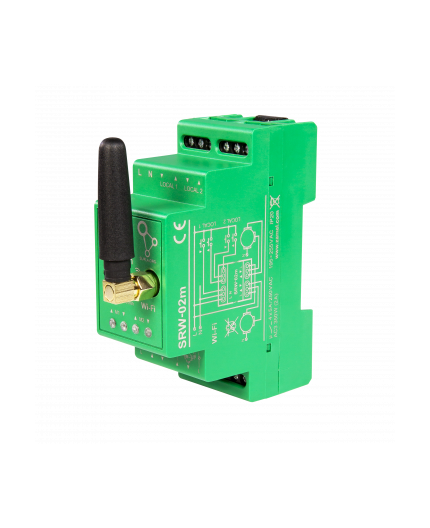

SRW-02m Wi-Fi 2-channels roller blind control module, Supla
2-channel Wi-Fi roller blind controller SRW-02M allows to control two roller blinds by using roller blinds buttons and application. ROW-02m
![](/modules/blockreassurance/img/ic_verified_user_black_36dp_1x.png)
You can order online 24/7, all ordered goods will be dispatched as soon as possible and we will notify you via e-mail. For custom made orders please contact us.
![](/modules/blockreassurance/img/ic_local_shipping_black_36dp_1x.png)
Orders over £500 (excl. VAT) Standard and Next Day service apply to UK mainland and Northern Ireland only. All orders will be sent by a trackable method.
![](/modules/blockreassurance/img/ic_swap_horiz_black_36dp_1x.png)
You have the right to cancel your online website order within 14 calendar working days of ordering, or 14 calendar days of receipt of the goods (whichever is the longer).

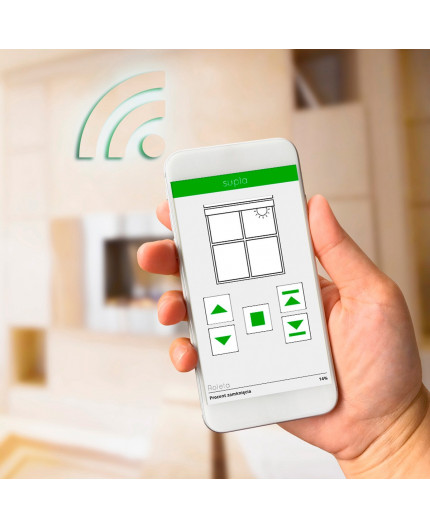

All buttons lowering and raising roller shutters anywhere at home in one place! Thanks to SRW-02 control modules raise and lower roller shutters through standard buttons, as well as through a smartphone while being at home or outside.
You can also plan automatic opening or closing of roller shutters at specific times and to a specific height.
TECHNICAL DATA
Rated supply voltage: 230 V AC
Relay contact parameters: 4 x NO 5 A / 250 V AC
Rated mains frequency: 50 / 60 Hz
Rated power consumption: 4.6 W
Transmission: Wi-Fi 2.4 GHz 802.11 b/g/n
Operating range: Wi-Fi range
Number of inputs: 4

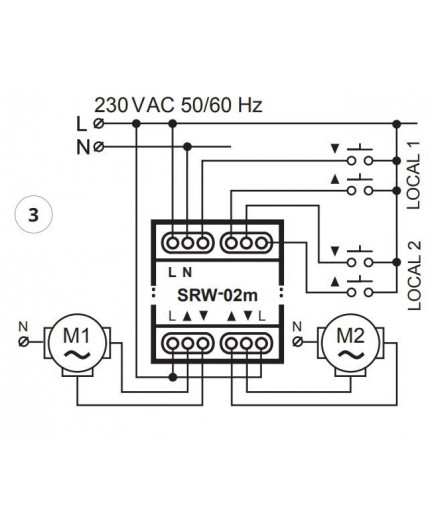

Compatible connectors: monostable (bell buttons), bistable (standard roller blind switches) Number of output channels: 2
Relay contact parameters: 4 x NO 5 A / 250 V AC
Maximum output current-carrying capacity: 4 x 5 A / 250 V AC: roller blind drives – 350 W
Number of connection terminals: 12 (conductor cross-section up to 2.5 mm2)
Enclosure mounting: DIN rail TH-35
Operating temperature range: -10 to +55°C
Enclosure protection rating: IP20
Dimensions: 90 × 35 × 66 mm
Weight: 0.13 g
Reference standards: EN 60669-1, EN 60669-2-1, ETSI EN 300 328, ETSI EN 301 489-1, EN 301 489-17
