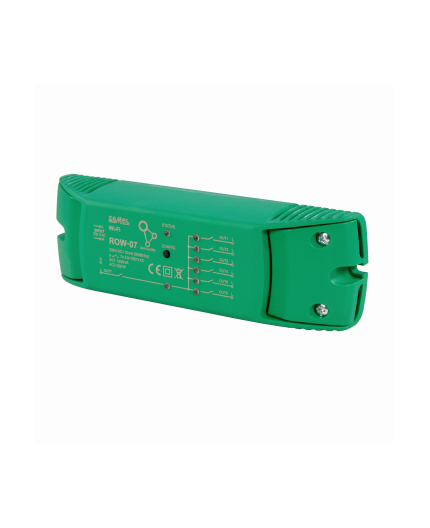

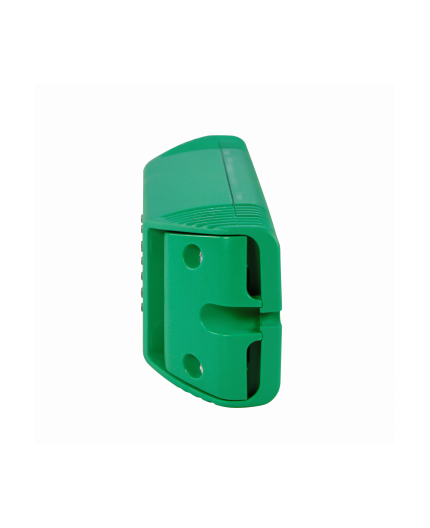

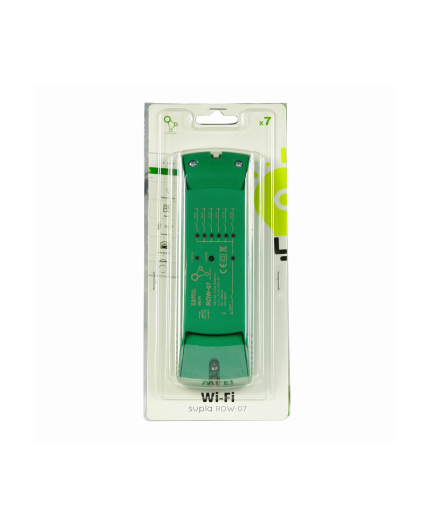

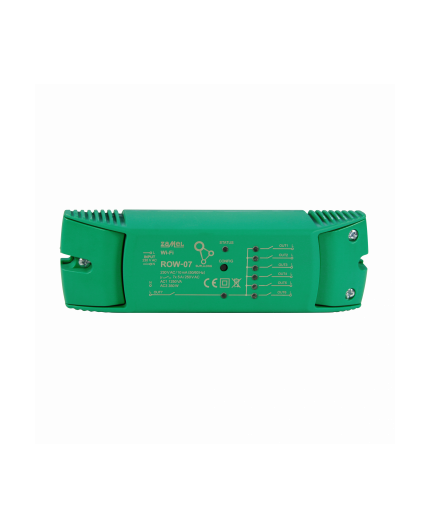

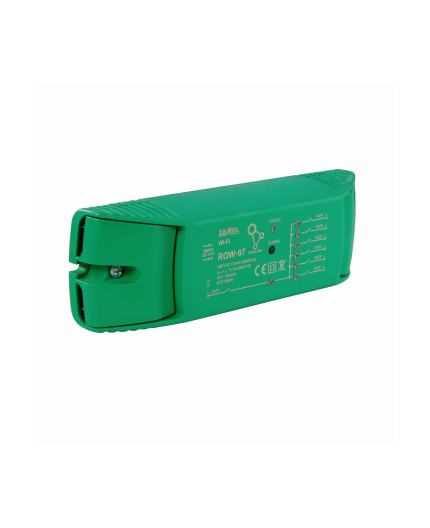

ROW-07 Power socket and lights control module, Wi-Fi 7-channels, Supla

The ROW-07 controller allows controlling lighting and other electrical devices. Thanks to the built-in Wi-Fi module, it is possible to manage devices on / off remotely.

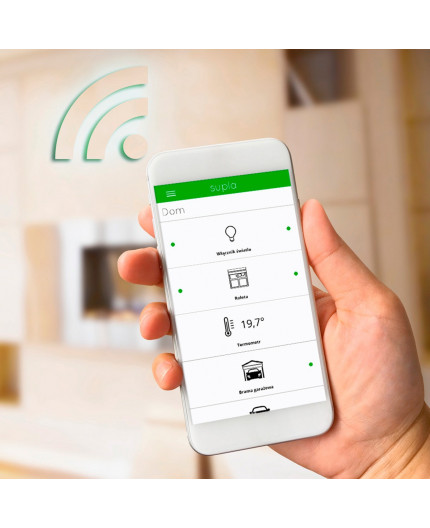

ROW-07 informs about their condition, thanks to which we have information whether the devices are switched on or off. The user can control devices from anywhere in the world. Thanks to the cloud application it is also possible to automatically start or shut down the devices according to the schedule stored on the cloud.
Thanks to ROW-02 you can comfortably control two circuits (e. g. two lamps) from the level of a smartphone or through a standard wall switch.

PRODUCT FUNCTIONAL FEATURES:
- WiFi 2.4GHz wireless communication
- control over seven channels can be done from a smartphone and automatically using the schedule
- the ability to control 7 channels independently
- it is ideally suited for electrical installations allowing to add control functionality from a smartphone

TECHNICAL DATA
Rated supply voltage: 230 V AC
Rated mains frequency: 50 / 60 Hz
Rated power consumption: 3.2 W
Transmission: Wi-Fi 2.4 GHz 802.11 b/g/n
Operating range: Wi-Fi range
Number of inputs: 1
Compatible connectors: monostable (bell buttons), bistable (standard light switches without backlight function)
Number of output channels: 7
Relay contact parameters: 7 x NO 5 A / 250 V AC
Maximum output current-carrying capacity: 7 x 5 A / 250 V AC
Number of connection terminals: 10 (conductor cross-section up to 2.5 mm2)
Enclosure mounting: surface installation
Operating temperature range: -10 to +55°C
Enclosure protection rating: IP20
Dimensions: 167 x 52.5 x 38.5 mm
Weight: 0.177 g
Reference standards: EN 60669-1, EN 60669-2-1, ETSI EN 300 328, ETSI EN 301 489-1, EN 301 489-17
