ROW-04m Power socket and lights control module, Wi-Fi 4-channels, Supla

Name: ROW-04m Power socket and lights control module, Wi-Fi 4-channels, Supla
Brand: ZAMEL
SKU: ROW-04m
Price: 96 GBP
Availability: InStock

80.00 VAT excl.

£96.00 VAT incl.

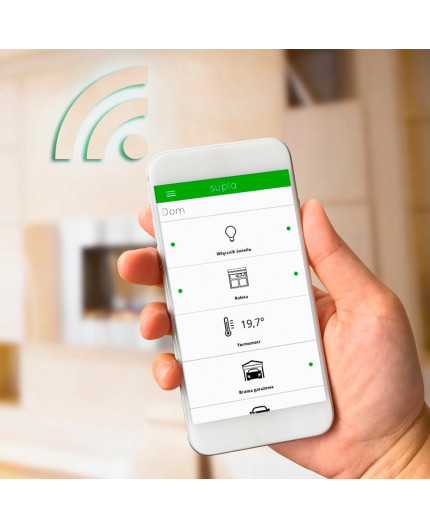

4-channel Wi-Fi control module enables the control of lighting, switching on and switching off the sockets and electrical devices by means of a smartphone or a tablet. ROW-04m:

Volume discounts

Quantity	Unit price	You Save
5	£96.00	£4.80
10	£96.00	£19.20
20	£96.00	£57.60
50	£96.00	£192.00
100	£96.00	£480.00

In stock 1 Item

Last items in stock

You can order online 24/7, all ordered goods will be dispatched as soon as possible and we will notify you via e-mail. For custom made orders please contact us.

Orders over £500 (excl. VAT) Standard and Next Day service apply to UK mainland and Northern Ireland only. All orders will be sent by a trackable method.

You have the right to cancel your online website order within 14 calendar working days of ordering, or 14 calendar days of receipt of the goods (whichever is the longer).

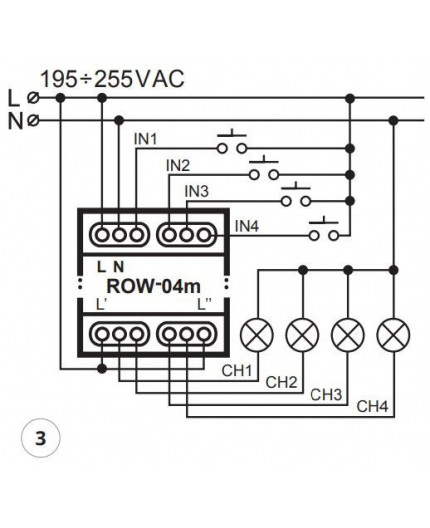

The ROW-04M Wi-Fi modular receiver is part of the system Supla, which allows independent control of four any 230 V AC devices / circuits. Device it is mounted in the control cabinet, making it very versatile. The element is great for controlling lamps equipped with incandescent, halogen, LED and CFL compact fluorescent lamps.

PRODUCT FUNCTIONAL FEATURES:
- WiFi 2.4GHz wireless communication
- control over four channels can be done from a smartphone and automatically using the schedule
- the ability to control 4 channels independently
- it is ideally suited for electrical installations allowing to add control functionality from a smartphone

TECHNICAL DATA
Rated supply voltage: 230 V AC
Rated mains frequency: 50 / 60 Hz
Rated power consumption: 3.2 W
Transmission: Wi-Fi 2.4 GHz 802.11 b/g/n
Operating range: Wi-Fi range
Number of inputs: 1
Compatible connectors: monostable (bell buttons), bistable (standard light switches without backlight function)
Number of output channels: 7
Relay contact parameters: 7 x NO 5 A / 250 V AC
Maximum output current-carrying capacity: 7 x 5 A / 250 V AC
Number of connection terminals: 10 (conductor cross-section up to 2.5 mm2)
Enclosure mounting: DIN rail TH-35
Operating temperature range: -10 to +55°C
Enclosure protection rating: IP20
Dimensions: 167 x 52.5 x 38.5 mm
Weight: 0.177 g
Reference standards: EN 60669-1, EN 60669-2-1, ETSI EN 300 328, ETSI EN 301 489-1, EN 301 489-17
