54.00 VAT excl.
£64.80 VAT incl.

Wi-Fi Gate control module, 2-channel Bi-directional, Supla SBW-02

Volume discounts

Quantity Unit price You Save
5 £54.00 £2.70
10 £54.00 £10.80
20 £54.00 £32.40
50 £54.00 £108.00
100 £54.00 £270.00
2 Items
Last items in stock


You can order online 24/7, all ordered goods will be dispatched as soon as possible and we will notify you via e-mail. For custom made orders please contact us.



Orders over £500 (excl. VAT) Standard and Next Day service apply to UK mainland and Northern Ireland only. All orders will be sent by a trackable method.



You have the right to cancel your online website order within 14 calendar working days of ordering, or 14 calendar days of receipt of the goods (whichever is the longer).

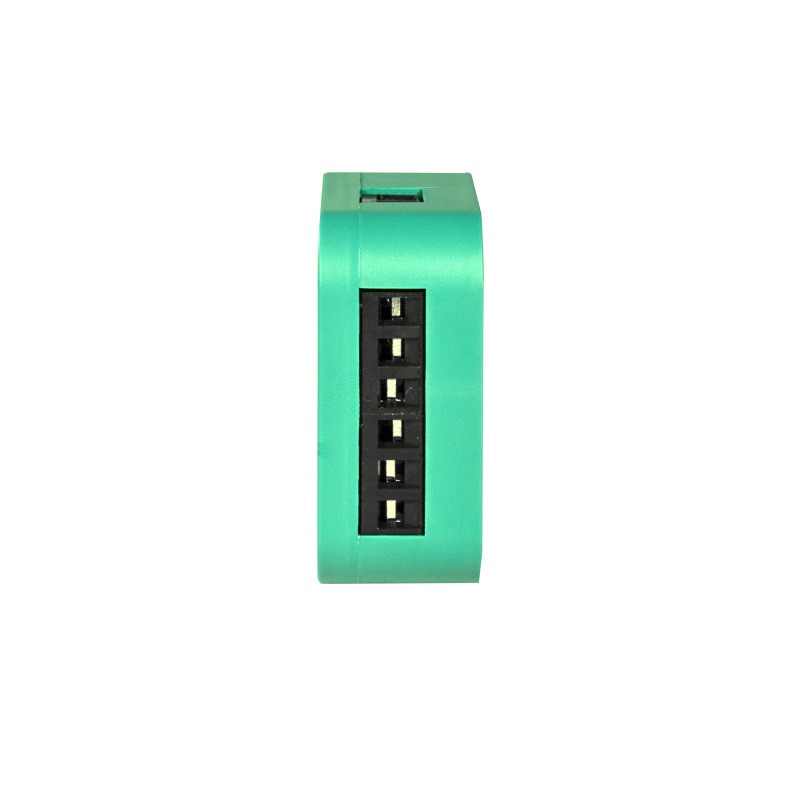

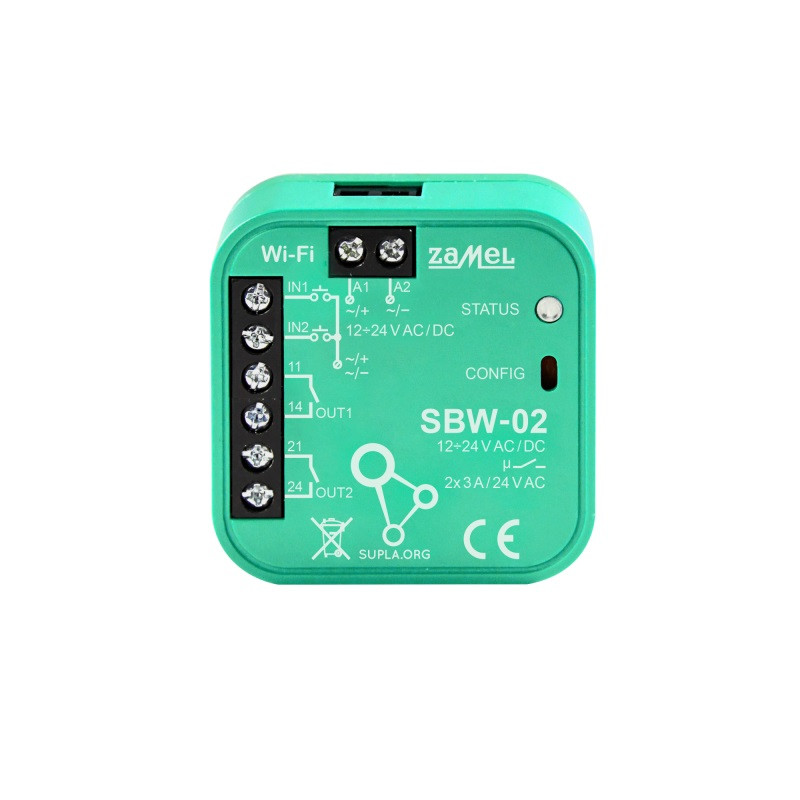

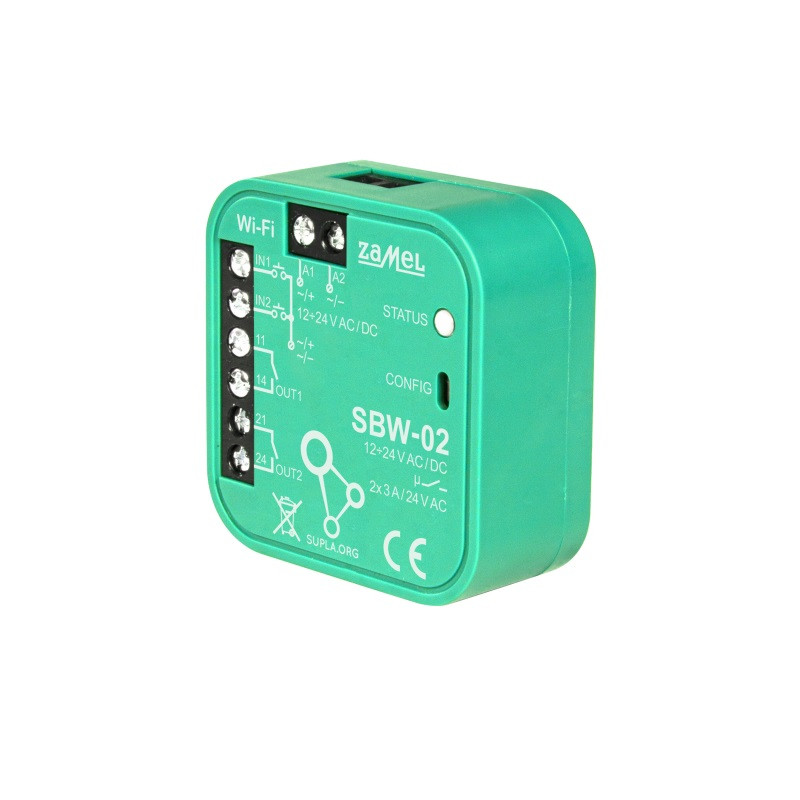

Wi-Fi Gate control module, Supla SBW-02

The gate controller allows integration with any gate drive and allows remote control of the gate through the mobile application SUPLA. The device is adapted for installing directly in the drive. Thanks to 12V or 24V power supply it is completely safe. By connecting signals from limit switches to the controller's inputs, we receive information about opening and closing the gate.

TECHNICAL DATA
Nominal supply voltage: 12-24 V AC/DC
Nominal frequency: AC :Stand-by/Relay switched on: AC: 16mA/62mA DC :Stand-by/ Relay switched on: DC 10mA/27mA
Rated power consumption: 0,45 W
Transmission: Wi-Fi 2.4GHz b/g/n
Operating range: Wi-Fi network operating range
Number of inputs: 2
Number of output channels: 2
Relay contact parameters: 2 x NO 3A / 250 V AC (voltage free a-contact)
Maximum output load: 5 A / 250 V AC
Number of connection terminals: 6 (cables up to 2,5 mm2 cross-section)
Temperature operating range: -20 to +55°C
Ingress protection rating: IP20
Dimensions: 47,5 x 47,5 x 20 mm
Weight: 0,04 kg
Compliance with standards: EN 60669-1, EN 60669-2-1, ETSI EN 300 328, ETSI EN 301 489-1, EN 301 489-17

SBW-02
