ROW-01/16A, power socket and lights control module, Wi-Fi 1-channel, Supla
£63.60

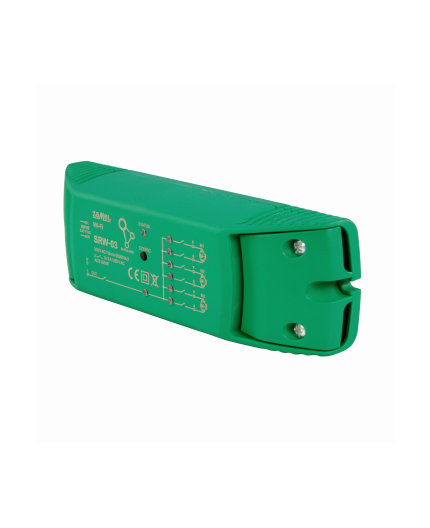

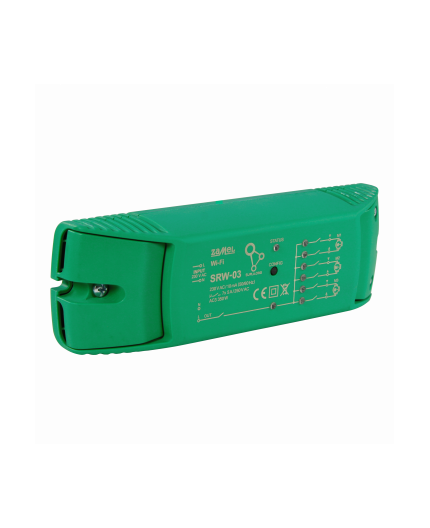

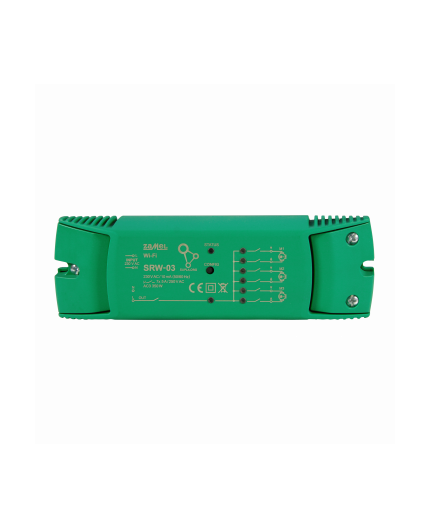

SRW-03 Wi-Fi roller blind control module, 3-ROLLER+1 CHANNEL, Supla
83.00 VAT excl.
£99.60 VAT incl.
The SRW-03 roller shutter controller 3 roller + 1 channel enables remote control of blinds, thanks to the built-in Wi-Fi receiver.
You can order online 24/7, all ordered goods will be dispatched as soon as possible and we will notify you via e-mail. For custom made orders please contact us.
Orders over £500 (excl. VAT) Standard and Next Day service apply to UK mainland and Northern Ireland only. All orders will be sent by a trackable method.
You have the right to cancel your online website order within 14 calendar working days of ordering, or 14 calendar days of receipt of the goods (whichever is the longer).
The SRW-03 roller shutter controller enables remote control of blinds, thanks to the built-in wi-fi receiver and the use of an external cloud. The user can check the position of the blind. It is also possible to remotely close it or open it. Thanks to the schedules stored in the cloud, it is possible to automatically control the roller blind at a specific time on a selected day of the week. SRW-03 is equipped with an additional one channel, which enables switching on and off of the electrical device.
PRODUCT FUNCTIONAL FEATURES:
- WiFi 2.4GHz wireless communication
- communication with the cloud
- no need for additional controls such as a controller
- cooperation with 230 V AC roller shutters
- remote access to the control without having to redirect the connection
- wireless communication with the Wi-Fi access point
- possibility of manual control of roller blinds by means of roller shutter buttons
TECHNICAL DATA
Rated supply voltage: 230 V AC
Relay contact parameters: 7 x NO 5 A / 250 V AC
Rated mains frequency: 50 / 60 Hz
Rated power consumption: 3.2 W
Transmission: Wi-Fi 2.4 GHz 802.11 b/g/n
Operating range: Wi-Fi range
Number of inputs: 2
Compatible connectors: monostable (bell buttons), bistable (standard roller blind switches) Number of output channels: 2
Relay contact parameters: 7 x NO 5 A / 250 V AC
Maximum output current-carrying capacity: 7 x 5 A / 250 V AC: roller blind drives – 350 W per channel
Number of connection terminals: 10 (conductor cross-section up to 2.5 mm2)
Enclosure mounting: surface installation
Operating temperature range: -10 to +55°C
Enclosure protection rating: IP20
Dimensions: 167 × 52.5 × 38.5 mm
Weight: 0.177 g
Reference standards: EN 60669-1, EN 60669-2-1, ETSI EN 300 328, ETSI EN 301 489-1, EN 301 489-17
SRW-03
