3W 700mA Constant Current LED Driver, LMPL-03-700LC
3W 700mA Constant Current LED Driver, LMPL-03-700LC
3W 700mA Constant Current LED Driver, LMPL-03-700LC
Previous keyboard_arrow_left
Next keyboard_arrow_right
zoom_in
3W 700mA Constant Current LED Driver, LMPL-03-700LC
3W 700mA Constant Current LED Driver, LMPL-03-700LC
3W 700mA Constant Current LED Driver, LMPL-03-700LC

3W 700mA Constant Current LED Driver, LMPL-03-700LC

5.60 VAT excl.
£6.72 VAT incl.

3W, 700mA constant current LED Driver
Output: 700mA, 2.5-4.2VDC
Input: 90-264VAC/260-375VDC
Perfect for furniture and other LED lighting applications, IP65

Volume discounts

Quantity Unit price You Save
5 £5.60 £0.28
10 £5.60 £1.12
20 £5.60 £3.36
50 £5.60 £11.20
100 £5.60 £28.00
10 Items
Last items in stock


You can order online 24/7, all ordered goods will be dispatched as soon as possible and we will notify you via e-mail. For custom made orders please contact us.



Orders over £500 (excl. VAT) Standard and Next Day service apply to UK mainland and Northern Ireland only. All orders will be sent by a trackable method.



You have the right to cancel your online website order within 14 calendar working days of ordering, or 14 calendar days of receipt of the goods (whichever is the longer).

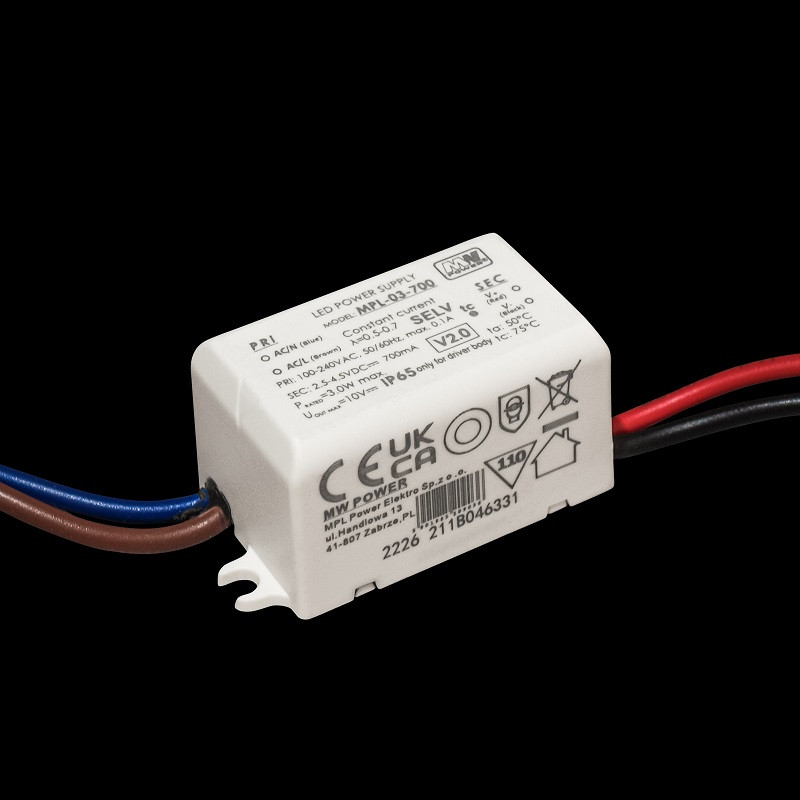

3W 700mA Constant Current LED Driver

Product code: MPL-03-700LC
Rated power: 3W
Output voltage: 2.5-4.2VDC
Rated current: 700mA
Voltage tolerance: ±5%
Line regulation: ±5%
Input voltage: 90-265 VAC
Frequency range: 47-63Hz
Input current: 0.08A/230Vac
Output stabilization: Constant current
Efficiency: 60%
Inrush current: <10A
No load power consumption (standby): 0.27W

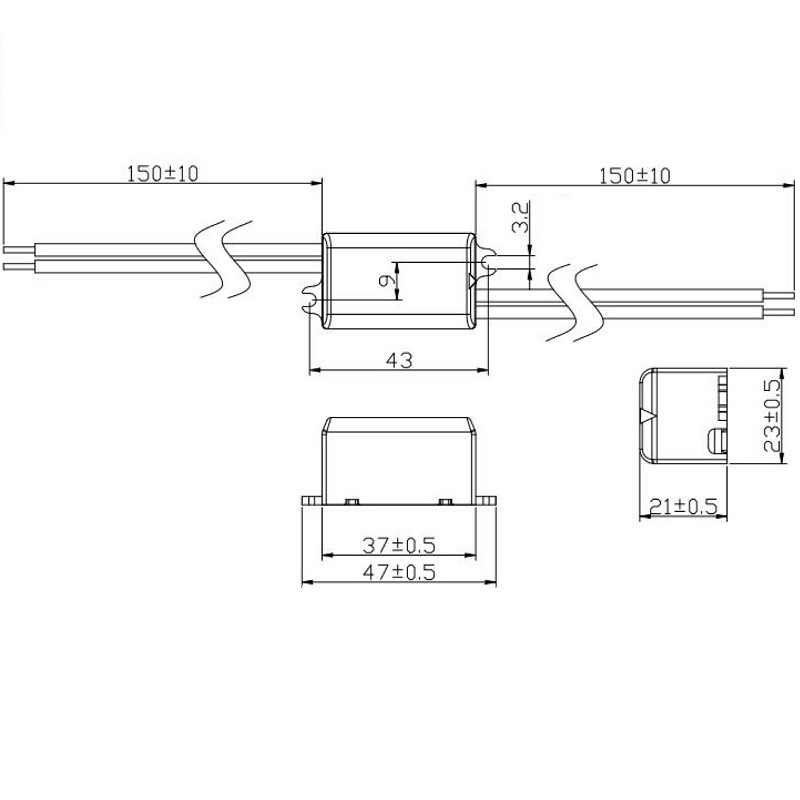

Dimensions: L 53mm x W 37mm x H 23 mm
Weight: 40 g
Dimmable: No
Protection degree: IP65
Short Circuit / overload
Working temperature ta: -10*C - +55*C
Working humidity: 20-90%RH
Storage temperature/humidity: -10*C - +60*C/10-90%RH

MPL-03-700LC
10 Items

Data sheet

Type
Constant Current
Ingress Protection (IP)
IP65
Output
700mA
Wattage
3W
Dimming Control
Non-dimmable
Design
Plastic case
