75W 12VDC Switching Power Supply for DIN Rail Mounting
£35.88
45W 24VDC Switching Power Supply for DIN Rail Mounting
21.00 VAT excl.
£25.20 VAT incl.

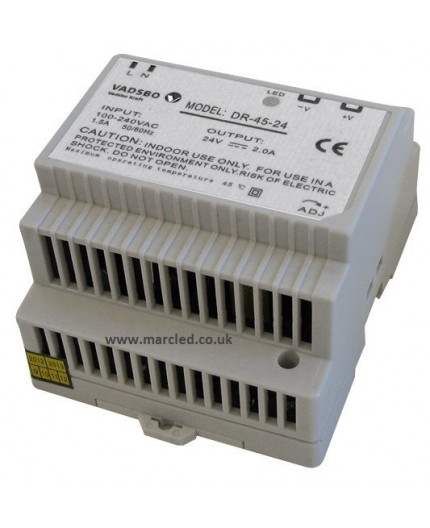

45W 24VDC Switching Power Supply for DIN Rail Mounting.
Built-in protection against short circuiting, overload, over-voltage with automatic reset when error is corrected.
Self-cooled.
You can order online 24/7, all ordered goods will be dispatched as soon as possible and we will notify you via e-mail. For custom made orders please contact us.
Orders over £500 (excl. VAT) Standard and Next Day service apply to UK mainland and Northern Ireland only. All orders will be sent by a trackable method.
You have the right to cancel your online website order within 14 calendar working days of ordering, or 14 calendar days of receipt of the goods (whichever is the longer).
Switching Power Supply for DIN Rail Mounting 45W 24VDC
Part Number: DR45/24
Protection against:
-short circuit
-overload
-overvoltage
-automatic return
Cooling: natural
Mounting: DIN rail TS-35/7.5 & TS-35/15
Insulation class:II
LED indicator of power supply
Standard: EN 55, 61, 50, 60, UL60950
Input voltage: 100-240VAC
Output voltage: 24VDC
Voltage tolerance: +-1%
Rated current: 2A
Rated power: 45W
Max ripple: 480 mV p-p
DC adjustment: +-10%
Efficiency: 80%
Overload capacity: 5%
Insulation level: 3kVAC
Working temp.: -10*C-+45*C
Dimensions(without DIN mount): 78x93x56mm
Weight: 230g
Modules: 5
Application
Obvious areas include all types of operating equipment.
DR power supplies also specially suitable to drive LED stripes. To dim stripes, use LED dimmer.
DR45/24
5 Items
Data sheet
- Type
- Constant Voltage
- Ingress Protection (IP)
- IP20 (non-waterproof)
- Output
- 24VDC
- Wattage
- 45W
- Dimming Control
- Non-dimmable
- Design
- DIN Rail
