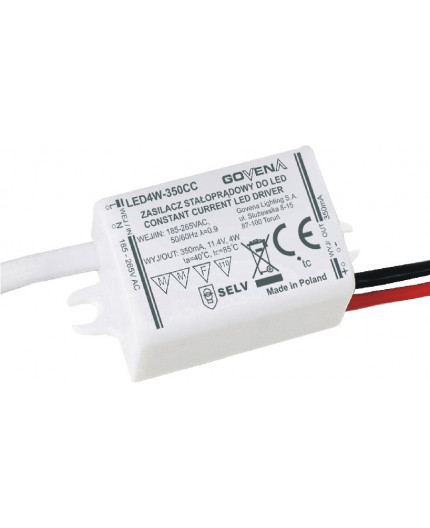

4W 350mA Constant Current LED Driver, LED4W-350CC, Govena
4W 350mA Constant Current LED Driver, LED4W-350CC, Govena
4W 350mA Constant Current LED Driver, LED4W-350CC, Govena
Previous keyboard_arrow_left
Next keyboard_arrow_right
zoom_in
4W 350mA Constant Current LED Driver, LED4W-350CC, Govena
4W 350mA Constant Current LED Driver, LED4W-350CC, Govena
4W 350mA Constant Current LED Driver, LED4W-350CC, Govena

4W 350mA Constant Current LED Driver, LED4W-350CC, Govena

8.20 VAT excl.
£9.84 VAT incl.

4W, 350mA constant current LED Driver, Govena
Output: 350mA, 6-11.4VDC
Input: 185-265VAC/260-375VDC
Perfect for furniture and other LED lighting, IP40

Volume discounts

Quantity Unit price You Save
5 £8.20 £0.41
10 £8.20 £1.64
20 £8.20 £4.92
50 £8.20 £16.40
100 £8.20 £41.00
10 Items
Last items in stock


You can order online 24/7, all ordered goods will be dispatched as soon as possible and we will notify you via e-mail. For custom made orders please contact us.



Orders over £500 (excl. VAT) Standard and Next Day service apply to UK mainland and Northern Ireland only. All orders will be sent by a trackable method.



You have the right to cancel your online website order within 14 calendar working days of ordering, or 14 calendar days of receipt of the goods (whichever is the longer).

4W 350mA Constant Current LED Driver, Govena

Product code: LED4W-3500CC
Rated power: 4W
Output voltage: 6-11.4VDC
Rated current: 350mA
Voltage tolerance: ±3%
Line regulation: ±3%
Input voltage: 185-265 VAC / 260-375 VDC
Frequency range: 47-53Hz
Turn-on delay: ≤ 600ms/ 230VAC at 100% load
Output stabilization: Constant current
Power factor: at 100% load and 230Vac - 0.91; at 60%-100% load and 230Vac - ≥0.90
Efficiency: 81%
Inrush current: <12A
No load power consumption (standby): 0.27W
Dimensions: L 38mm x W 27mm x H 23 mm
Weight: 55 g
Dimmable: No
Protection degree: IP40
Over Current: Constant current limiting, recovers automatically after fault condition is removed
Short Circuit: Hiccup mode, recovers automatically after fault condition is removed
Over Voltage:  30V; protection type: Constant voltage limiting
Over temperature: 85 ± 10°C , protection type: Decrease in output voltage and output power
Working temperature ta: -20*C - +45*C
Working humidity: 10-95%RH
Storage temperature/humidity: -20*C - +75*C/10-95%RH
Case temperature tc: max. 80*C
Meets standards: EN 61347-1, EN 61347-2-13, EN 55015, EN 61547, EN 61000-3-2, EN 61000-3-3

LED4W-350CC
10 Items

Data sheet

Type
Constant Current
Ingress Protection (IP)
IP40
Output
350mA
Wattage
4W
Dimming Control
Non-dimmable
Design
Plastic case
