8W 400-700mA CC Dimmable LED Driver SE-8-400-700-G1T
14.00 VAT excl.
£16.80 VAT incl.
Ideal for powering and dimming constant current LED lighting in the range of 400-700mA DC via Leading/Trailing edge mains (phase) dimming.
You can order online 24/7, all ordered goods will be dispatched as soon as possible and we will notify you via e-mail. For custom made orders please contact us.
Orders over £500 (excl. VAT) Standard and Next Day service apply to UK mainland and Northern Ireland only. All orders will be sent by a trackable method.
You have the right to cancel your online website order within 14 calendar working days of ordering, or 14 calendar days of receipt of the goods (whichever is the longer).

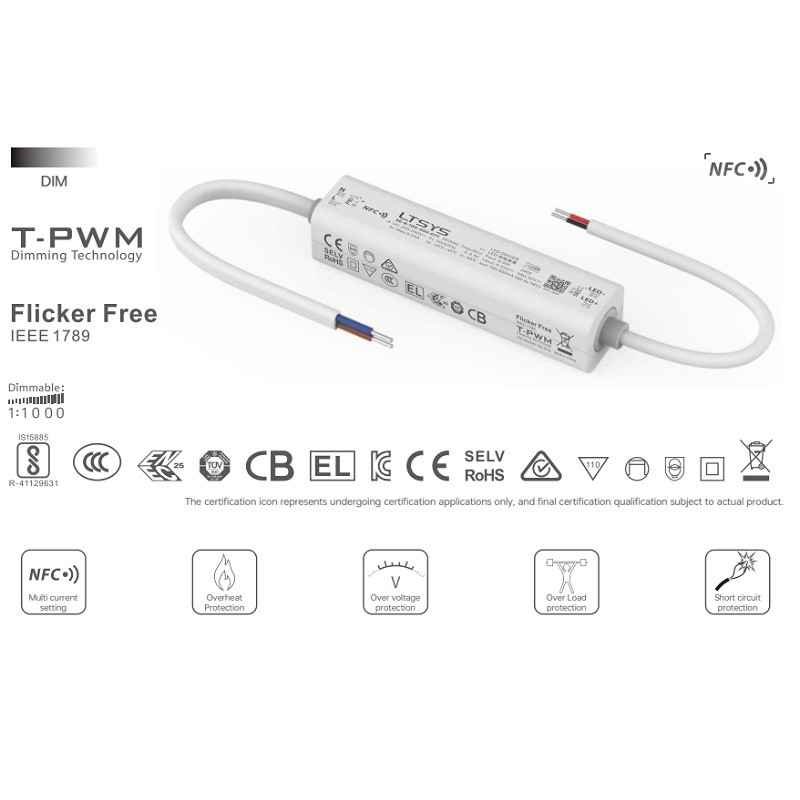

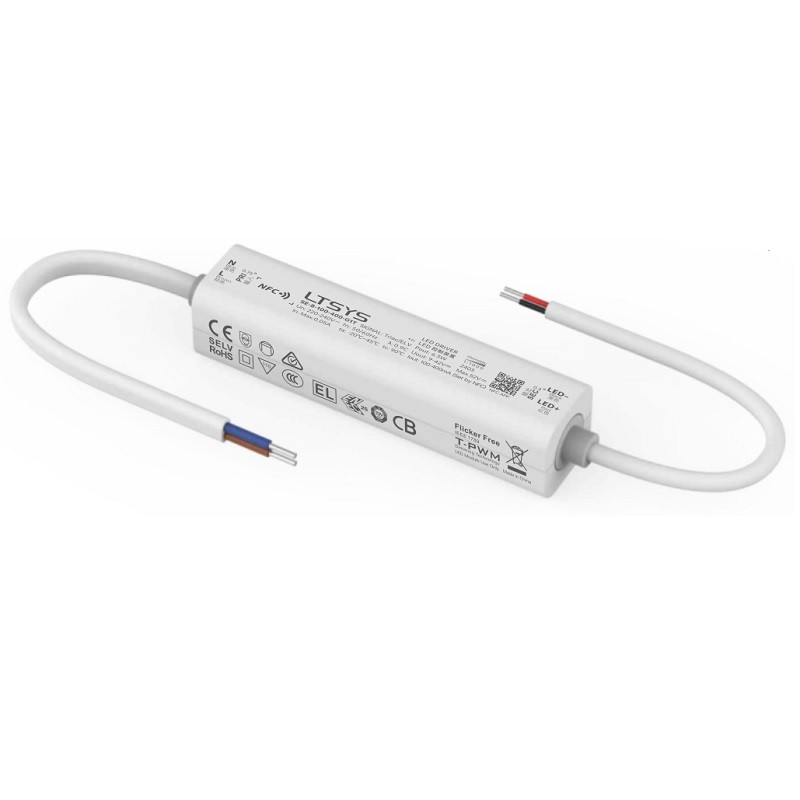

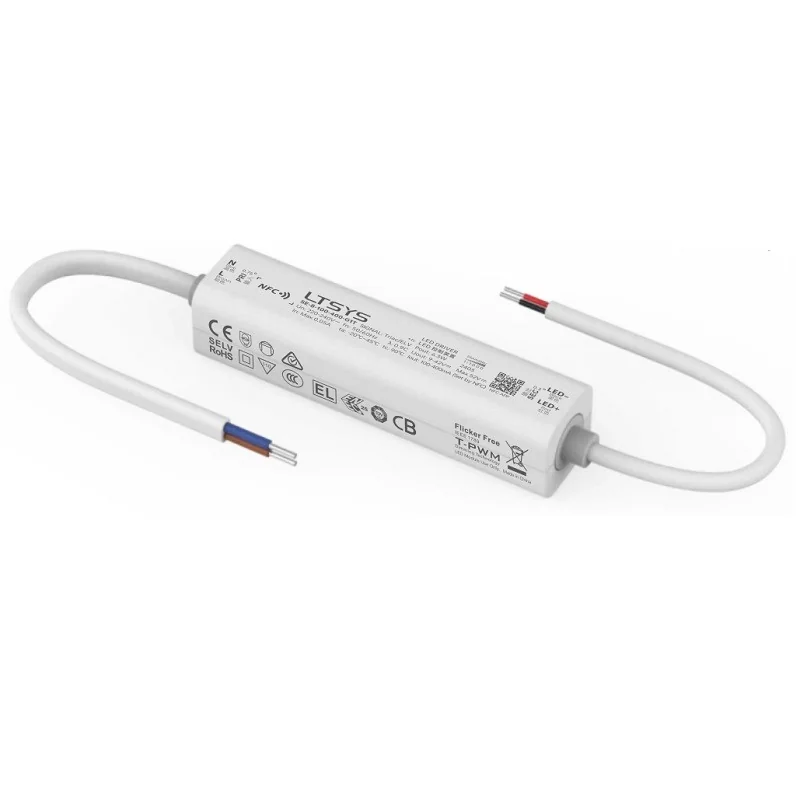

Ultra small, thin and lightweight, screwless end cap design.
Simply select the output current "on the installation" using the Dip switches on the end of the driver. Select from: 350mA, 400mA, 450mA, 500mA, 550mA, 600mA, 650mA, 700mA.
- Housing made from SAMSUNG/COVESTRO's V0 flame retardant PC materials.
- Ultra small, thin and lightweight, screwless end cap design.
- The output current, minimum brightness value, power-on fading time can be changed through the mobile NFC APP, realize the driver data interaction function.

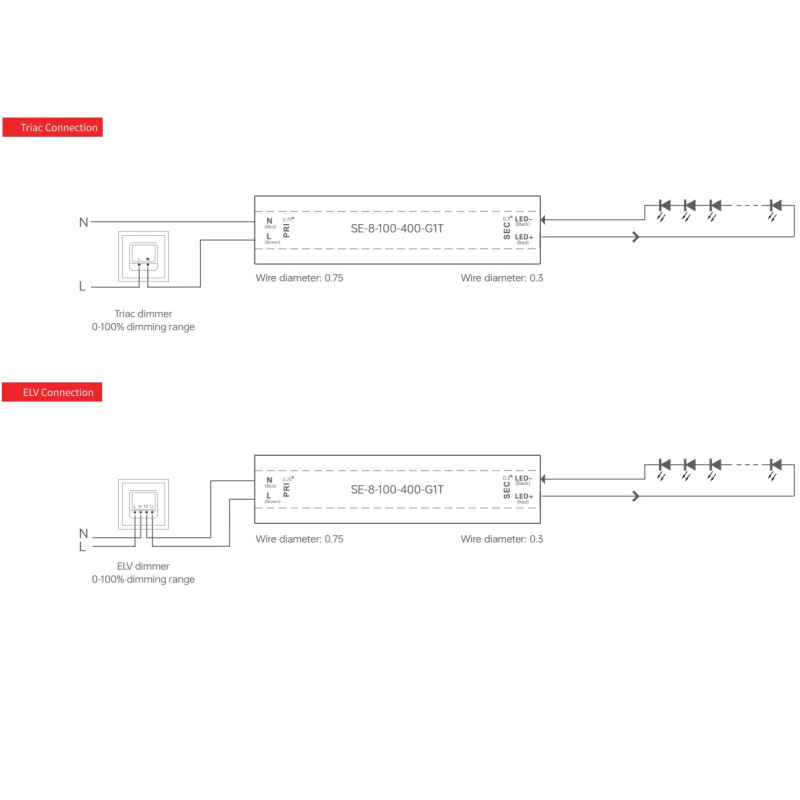

- Leading edge (Triac), trailing edge (ELV) phase control dimming.
- Adjustable output current with 1mA step.
- Soft-on and fade-in dimming function enhances your visual comfort.
- T-PWM super deep dimming technology, 0.1% dimming depth
- The whole dimming process is flicker-free with high frequency exemption level.
- Overheat, over voltage, overload, short circuit protection and automatic recovery.
- Suitable for ClassⅠ/Ⅱ/Ⅲ indoor light fixtures.
- Normal service life can reach 100,000 hours.
- 5-year warranty (Rubycon capacitor).
Input Voltage Range: 200-240Vac
Efficiency: >70%
Output Voltage: 2-15.5Vdc
Output Current Range: 400mA-700mA
Output Power: min.0.8 - max.6.3W
IP rating: IP50

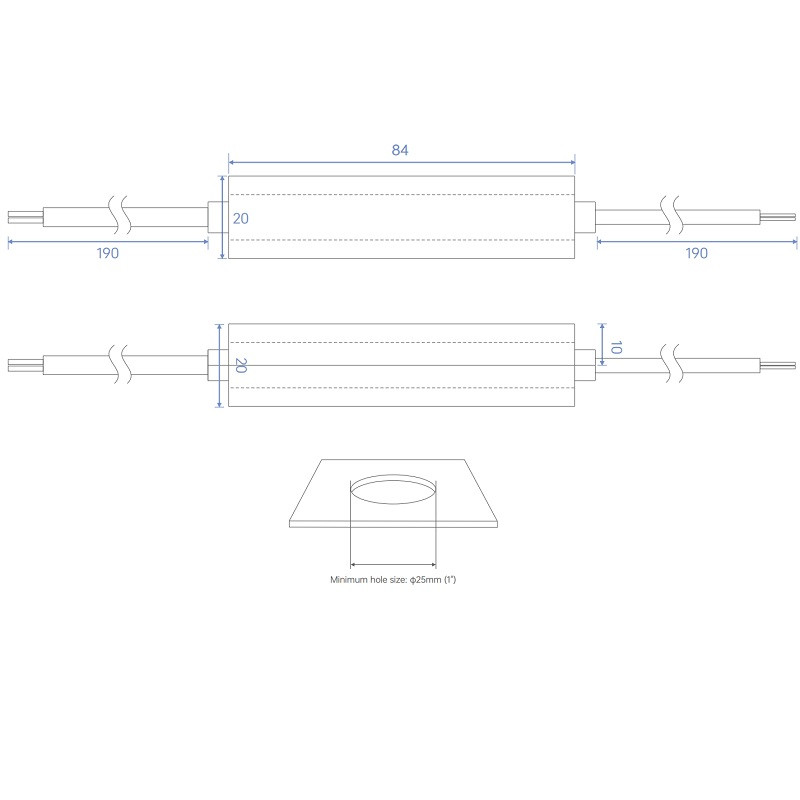

Dimension: 84×30×20mm(L×W×H)
Weight(G.W.): 50g±5g
SE-8-100-400-G1T
10 Items
Data sheet
- Type
- Constant Current
- Ingress Protection (IP)
- IP20 (non-waterproof)
- Output
- 400mA
450mA
500mA
550mA
600mA
650mA
700mA
multi-current selectable output - Wattage
- 8W
- Dimming Control
- Trailing / Leading edge
- Design
- Plastic case
