Single Output LED Driver 100W 12Vdc, Constant voltage, Mean Well
Single Output LED Driver 100W 12Vdc, Constant voltage, Mean Well

Single Output LED Driver 100W 12Vdc, Constant voltage, Mean Well

30.00 VAT excl.
£36.00 VAT incl.

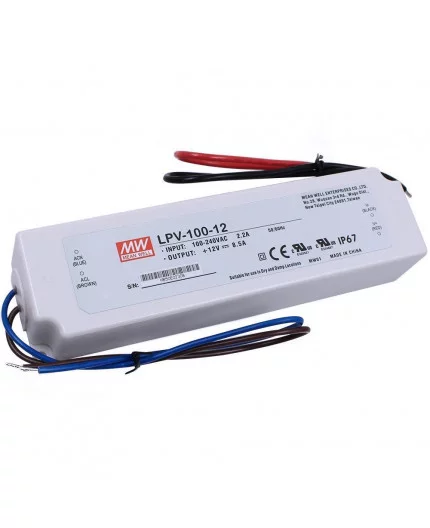

Constant Voltage LED Driver Single Output 100W from Mean Well for 12Vdc LED lights

- Suitable for LED lighting
- Cooling by free air convection
- Constant voltage design: 12Vdc
- IP67

3 Items
Last items in stock


You can order online 24/7, all ordered goods will be dispatched as soon as possible and we will notify you via e-mail. For custom made orders please contact us.



Orders over £500 (excl. VAT) Standard and Next Day service apply to UK mainland and Northern Ireland only. All orders will be sent by a trackable method.



You have the right to cancel your online website order within 14 calendar working days of ordering, or 14 calendar days of receipt of the goods (whichever is the longer).

LED Driver Single Output 100W

LED Driver Mode: Constant Voltage
No. of Channels: 1
No. of Outputs: 1

INPUT:
VOLTAGE RANGE:      90 ~ 264VAC 127 ~ 370VDC
FREQUENCY RANGE:  47 ~ 63Hz
EFFICIENCY (Typ.):    85%
AC CURRENT:            2.2A/115VAC 1.2A/230VAC
INRUSH CURRENT (Typ.):    COLD START 75A (twidth=700μs measured at 50% Ipeak) at 230VAC

OUTPUT:
DC VOLTAGE          12V
RATED CURRENT    8.5A
CURRENT RANGE    0 ~ 8.5A
RATED POWER       102W
RIPPLE & NOISE (max.)     120mVp-p
VOLTAGE TOLERANCE    ±5.0%
LINE REGULATION         ±1.0%
LOAD REGULATION      ±2.0%
SETUP, RISE TIME    2000ms, 25ms / 230VAC 2000ms, 25ms / 115VAC
HOLD UP TIME (Typ.)    50ms/230VAC 14ms/115VAC at full load

ENVIRONMENT:
Operating Temperature Max: 70°C
Operating Temperature Min: -25°C
Operating Temperature Range: -40°C to +80°C
Power Supply Mounting: Chassis
Termination Style: Flying Leads, approx. 300mm (each side)

Slim plastic case with IP67 level
Economical design
Suitable for economical LED lighting and moving sign applications

Dimensions: 190x52x37mm (L*W*H)

LPV-100-12
3 Items

Data sheet

Type
Constant Voltage
Ingress Protection (IP)
IP67
Output
12VDC
Wattage
100W
Dimming Control
Non-dimmable
Design
Plastic case
